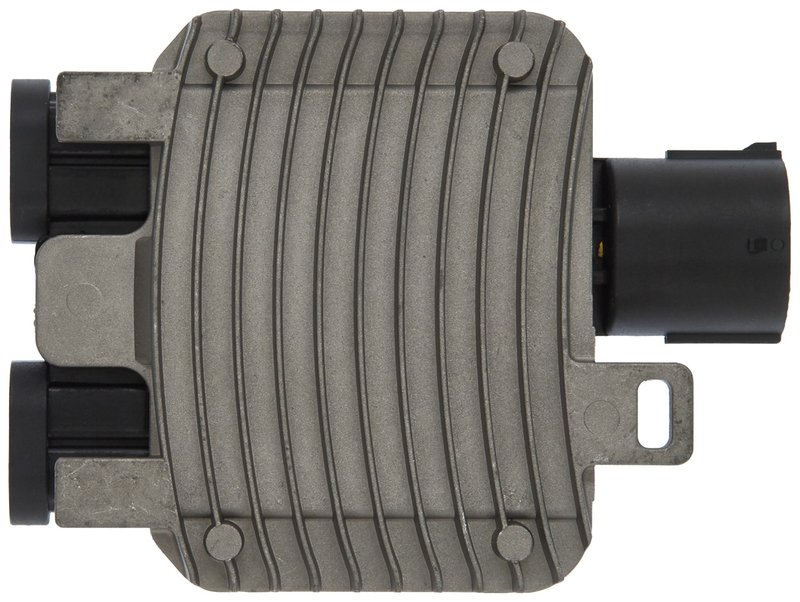

Gates FCM134 Engine Cooling Fan Module

Overview of Gates Engine Cooling Fan Module FCM134

The Gates Engine Cooling Fan Module FCM134 is designed specifically for Jaguar X-Type vehicles, providing reliable engine cooling system control. This 12-volt module features a compact design with metal and plastic housing, ensuring durability and efficient performance in demanding automotive environments.

• Voltage: 12V
• Dimensions: 5.31 inches (Length) x 3.93 inches (Width) x 1.34 inches (Height)
• Connector Quantity: 3 female connectors
• Connector Pins: 4 pins on connector 1, 2 pins on connectors 2 and 3
• Amperage Rating: 35 amps
• Housing Material: Metal and plastic composite
• Wire Harness: Not included

About the Engine Cooling Fan Module Product Line

The Gates Engine Cooling Fan Module product line focuses on delivering precise control modules that regulate engine cooling fans to maintain optimal engine temperature. The FCM134 is part of this line, engineered to meet the specific electrical and mechanical requirements of Jaguar X-Type models, ensuring compatibility and reliable operation within the vehicle's cooling system.

Detailed Product Description

The Gates FCM134 Engine Cooling Fan Module operates at 12 volts and supports a 35-amp load, suitable for managing the cooling fan's electrical demands in Jaguar X-Type vehicles. Its compact size (5.31" L x 3.93" W x 1.34" H) allows for easy integration into the engine bay. The module includes three female connectors with a total of eight pins distributed across them, facilitating secure and stable electrical connections. The metal and plastic housing provides protection against heat and vibration, contributing to the module's longevity and consistent performance.

Common Applications and Issues Addressed

• Regulates engine cooling fan operation to prevent overheating
• Replaces faulty or damaged cooling fan control modules in Jaguar X-Type
• Resolves intermittent fan operation or failure to engage
• Addresses electrical issues related to fan speed control
• Improves engine temperature management for consistent performance

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to avoid electrical hazards
• Verify connector pin configuration matches the vehicle wiring harness
• Handle the module carefully to avoid damage to connectors and housing
• Installation may require access to the engine bay control module area specific to Jaguar X-Type
• Wire harness is not included; reuse existing harness or source separately if needed

Quality Assurance and Warranty

The Gates Engine Cooling Fan Module FCM134 is manufactured to meet OEM specifications for Jaguar X-Type vehicles. The combination of metal and plastic housing materials ensures durability under typical engine bay conditions. While specific warranty details are not provided here, Gates products generally come with manufacturer-backed quality assurance to support reliable operation and customer confidence.
