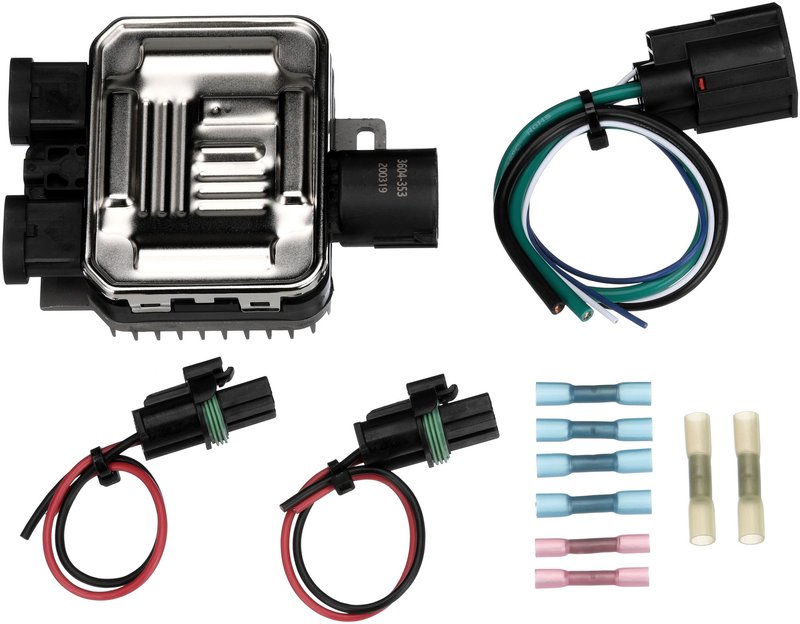

Gates FCM134K Engine Cooling Fan Module

Engine Cooling Control for Jaguar X-Type

The Gates FCM134K engine cooling fan module regulates electric cooling fan speed to help maintain stable engine coolant temperature. Built for 12-volt systems with a 35-amp rating, it is a direct-fit cooling control component for select Jaguar X-Type applications.

Compatible with 2001-2008 Jaguar X-Type, this Gates engine cooling fan module is part of the Gates Engine Cooling Fan Module line and is built for precise fan control in vehicles that rely on electronically managed cooling.

Key Features

• Gates part number FCM134K for identified Jaguar X-Type applications
• 12-volt electrical system with 35-amp rating
• Three female connectors for vehicle-specific integration
• Metal/plastic housing construction
• Wire harness included
• Compact module dimensions: 5.31 in. L x 3.93 in. W x 1.34 in. H

Detailed Description

The Gates FCM134K engine cooling fan module is used to control electric cooling fan operation with greater precision than a simple on/off circuit. By managing fan speed based on cooling demand, the module helps the cooling system maintain a consistent operating temperature while reducing unnecessary electrical load. This is especially relevant on 2001-2008 Jaguar X-Type models equipped with electronically controlled cooling fans.

This part cross-references Jaguar OE numbers C2S24957 and C2S49717 for the same application. The Gates FCM134K is also referenced as FCM134 in Gates listings.

What It Helps Address

• Cooling fans that run at the wrong speed or cycle inconsistently
• Engine temperature fluctuations caused by fan control faults
• Cooling fan operation issues tied to a failed control module
• Electrical load concerns from uncontrolled fan operation
• Loss of proper fan modulation in Jaguar X-Type cooling systems

Installation Notes and Tips

Verify connector count, pin layout, and mounting dimensions before installation. This module uses three female connectors and includes a harness, so matching the vehicle connector configuration is important for proper fitment. Confirm the vehicle is a 12-volt application and inspect the cooling fan circuit for related wiring or connector damage before replacing the module.

Quality Assurance

Gates supplies this engine cooling fan module as part of its Engine Cooling Fan Module product line, engineered for controlled fan-speed operation in supported applications. Confirm fitment against the vehicle year, make, model, and connector configuration before installation.
