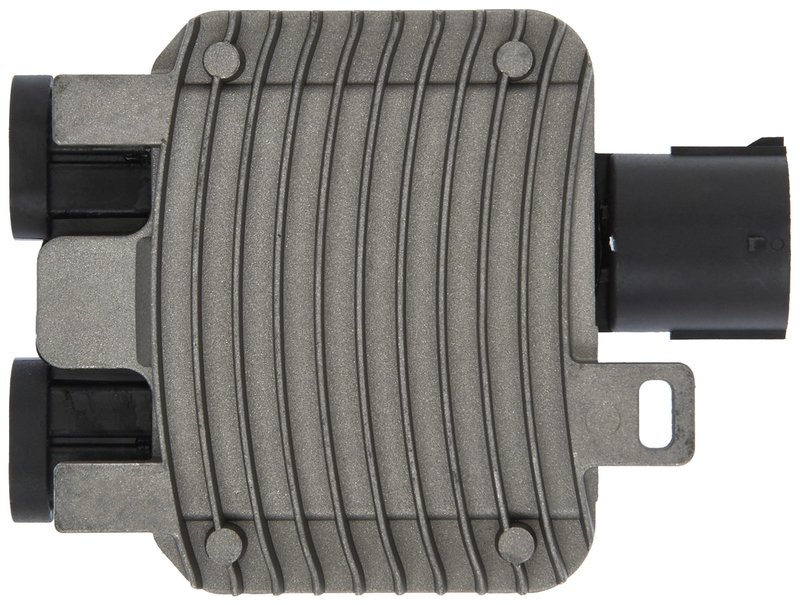

Gates FCM135 Engine Cooling Fan Module

Engine Cooling Control for Land Rover Applications

The Gates FCM135 engine cooling fan module regulates electric cooling fan speed to help maintain stable coolant temperature and reduce unnecessary electrical load. It is a direct-fit cooling control component for select Land Rover models, including Discovery Sport, Range Rover Evoque, and LR2.

Built with a metal/plastic housing and a 12-volt, 35-amp rating, this module is specified for vehicles that use a 3-connector female interface. Gates FCM135 is a practical replacement for cooling fan control faults that can affect drivability and thermal management.

Key Features

• 12-volt engine cooling fan module for electric fan control
• 35-amp amperage rating for cooling system electrical demand
• 3 female connectors for application-specific fitment
• Metal/plastic housing for underhood durability
• Compact dimensions: 5.31 in. L x 3.93 in. W x 1.34 in. H
• Wire harness not included
• Gates FCM135 part number for accurate ordering and replacement

Detailed Description

The Gates Engine Cooling Fan Module line is engineered for vehicles that rely on electronically controlled fan operation to keep engine coolant within a stable temperature range. By managing fan speed more precisely than a simple on/off relay, the module helps the cooling system respond to changing engine load and operating conditions while limiting unnecessary energy use. Gates FCM135 is a direct replacement for select Land Rover Discovery Sport, Range Rover Evoque, and LR2 models, and it cross-references Allmakes LR100364 for the same application.

Use Gates FCM135 when servicing a failed cooling fan control unit on 2015-2017 Land Rover Discovery Sport, 2012-2017 Land Rover Range Rover Evoque, and 2013-2015 Land Rover LR2. The part number FCM135 is also useful when verifying the correct module against OE-style interchange references.

Common Problems This Part Can Address

• Cooling fan runs at the wrong speed or not at all
• Engine temperature fluctuates during idle or stop-and-go driving
• Cooling fan control fault codes related to module operation
• Excessive electrical load from uncontrolled fan operation
• Reduced cooling system response under varying engine conditions

Installation Notes and Tips

• Confirm connector count, connector type, and amperage rating before installation.
• Inspect the fan motor, wiring, and related cooling system components for damage before replacing the module.
• Verify the vehicle uses a 12-volt cooling fan control setup with the specified connector layout.
• Because the wire harness is not included, reuse or service the existing harness as needed.
• Clear any stored cooling system or fan control codes after installation and test fan operation at idle and under load.

Quality Assurance

Gates manufactures this cooling fan module as part of its Engine Cooling Fan Module product line, with specifications aligned to the electrical and connector requirements of the listed Land Rover applications. Part number FCM135 is built for direct replacement use in the confirmed fitments shown above.

• Fits 2015-2017 Land Rover Discovery Sport, N/A
• Fits 2012-2017 Land Rover Range Rover Evoque, N/A
• Fits 2013-2015 Land Rover LR2, N/A
