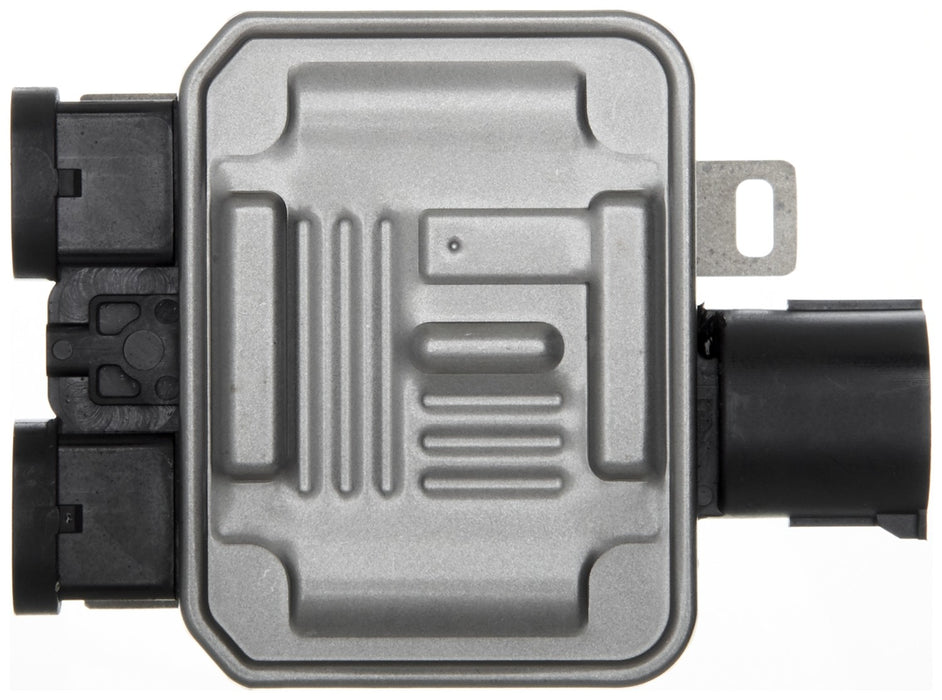

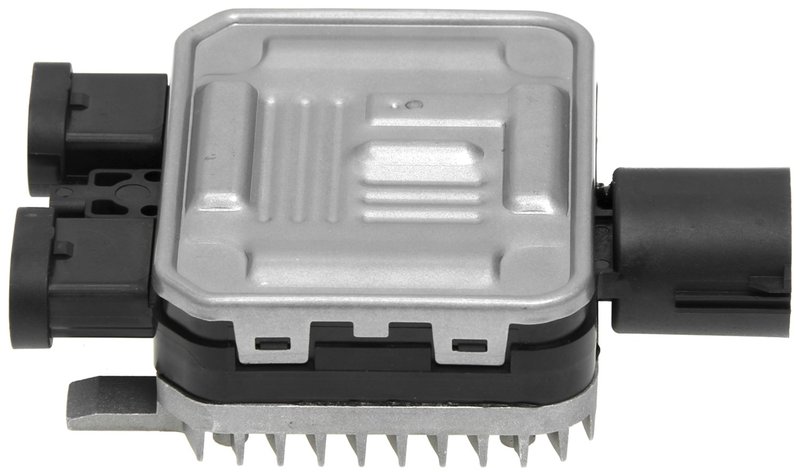

Gates FCM139 Engine Cooling Fan Module

Overview of Gates Engine Cooling Fan Module FCM139

The Gates Engine Cooling Fan Module FCM139 is designed to provide reliable cooling system control for select Volvo models. Engineered to operate at 12 volts with a 30 amp rating, this module ensures efficient fan operation to maintain optimal engine temperature.

• Voltage: 12V
• Amperage Rating: 30 Amps
• Dimensions: 5.3" Length x 3.95" Width x 1.37" Height

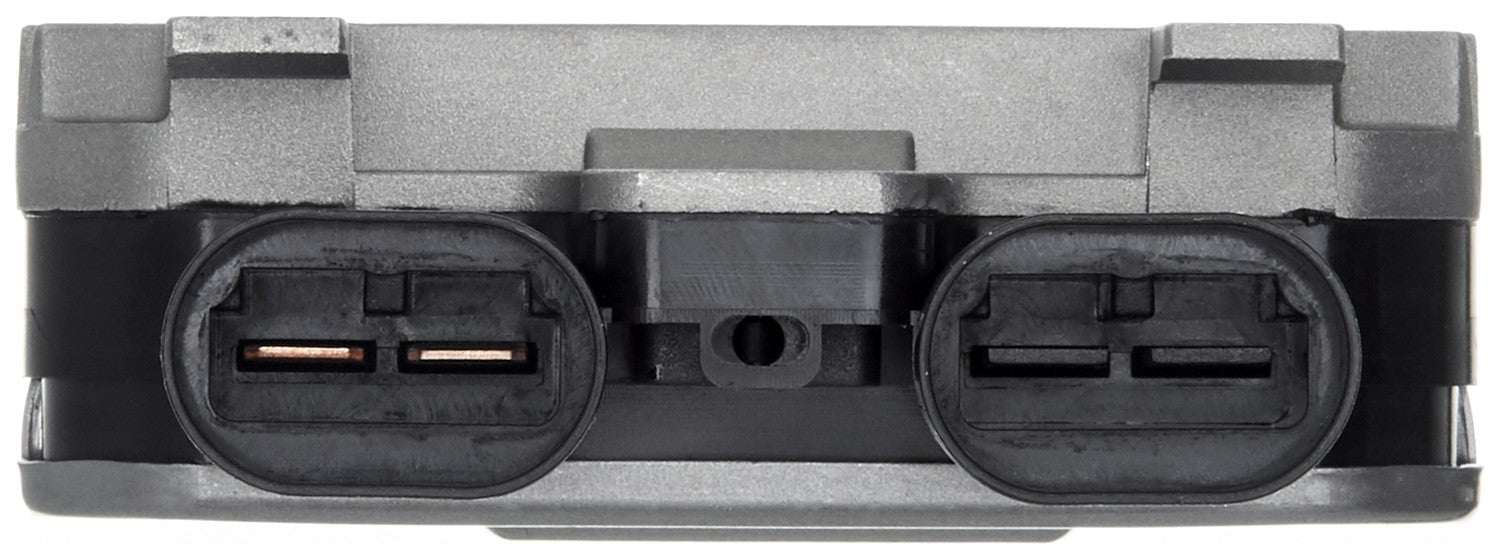

• Connector Quantity: 2 male connectors
• Connector Pins: One with 3 pins, one with 2 pins
• Housing Material: Durable metal and plastic composite
• Wire Harness: Not included

About the Gates Engine Cooling Fan Module Line

The Engine Cooling Fan Module product line by Gates focuses on delivering precise control modules that regulate engine cooling fans in modern vehicles. The FCM139 is part of this line, offering compatibility with various Volvo models and engineered to meet specific electrical and mechanical requirements for effective cooling system management.

Detailed Product Description

The Gates FCM139 Engine Cooling Fan Module is a critical component for maintaining proper engine temperature in Volvo vehicles such as the S60, S60 Cross Country, S80, V60, V60 Cross Country, V70, XC60, and XC70. Its 12-volt operation and 30-amp amperage rating support the electrical demands of the cooling fan system. The module features two male connectors—one with three pins and another with two pins—ensuring secure and reliable electrical connections. Constructed with a combination of metal and plastic housing, the module balances durability with weight considerations. The compact dimensions (5.3 inches long, 3.95 inches wide, and 1.37 inches high) allow for straightforward integration into the engine bay.

Common Applications and Issues Addressed

• Regulates engine cooling fan speed to prevent overheating
• Replaces faulty or damaged cooling fan control modules
• Resolves intermittent fan operation or failure to engage
• Helps maintain consistent engine temperature under varying load conditions
• Supports proper HVAC system performance by controlling fan operation

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector pin configuration matches the vehicle wiring harness
• Check for corrosion or damage on connectors before installation
• Secure module firmly in place to avoid vibration-related issues
• Consult vehicle service manual for specific mounting location and torque specifications

Quality Assurance and Warranty

The Gates Engine Cooling Fan Module FCM139 is manufactured to meet OEM standards for fit, form, and function. While specific warranty details are not provided here, Gates products typically come with a limited warranty covering defects in materials and workmanship. It is recommended to verify warranty terms with the point of purchase or manufacturer documentation.
