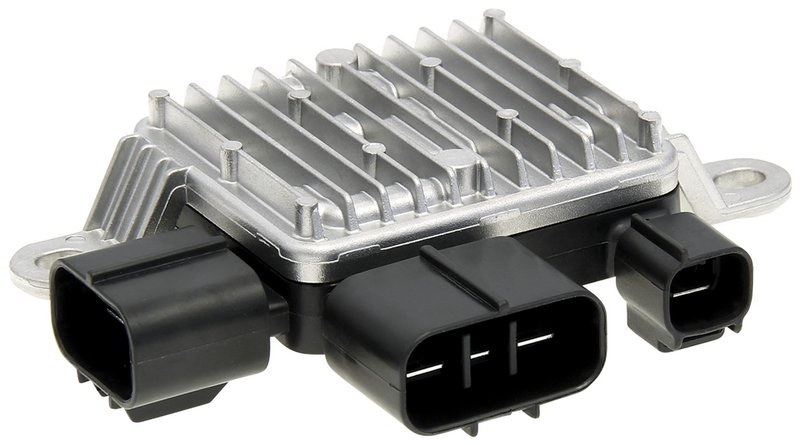

Gates FCM145 Engine Cooling Fan Module

Engine Cooling Control for Select Kia Models

The Gates FCM145 engine cooling fan module regulates electric cooling fan speed to help maintain stable coolant temperature and reduce unnecessary electrical load. It is a direct-fit cooling control component for select Kia applications, including Forte5, Soul, Optima, and Forte Koup models.

Built with an aluminum/plastic housing and a female 3-connector layout, this module is sized for compact underhood packaging and uses a 3-pin, 2-pin, and 1-pin connector arrangement. The Gates FCM145 is a practical replacement for vehicles that rely on electronic fan control rather than a simple relay setup.

Key Features

• Engine cooling fan module for electronic fan speed control
• Fits select 2014-2018 Kia Forte5, 2017-2018 Kia Soul, 2014-2016 Kia Optima, and 2014-2015 Kia Forte Koup applications
• Female connector design with 3 total connectors
• Connector pin layout: 3-pin, 2-pin, and 1-pin
• Aluminum/plastic housing for underhood durability
• Compact dimensions: 5.29 in. long, 3.77 in. wide, 1.27 in. high
• No wire harness included

Product Details

The Gates Engine Cooling Fan Module line is focused on precise fan-speed management for vehicles equipped with electric cooling fans. By controlling fan operation more accurately, the module helps the cooling system maintain a consistent engine coolant temperature while avoiding unnecessary energy loss. This Gates FCM145 is cross-referenced to OE-style part numbers 253852T500 and 253854R500 for the same application.

Compatible With: 2018 Kia Forte5, 2014-2016 Kia Forte5, 2017-2018 Kia Soul, 2014-2016 Kia Optima, and 2014-2015 Kia Forte Koup. The Gates FCM145 is a targeted replacement for drivers searching for an engine cooling fan module for Kia Forte5, Kia Soul, or Kia Optima cooling system repair.

Common Problems This Part Can Address

• Cooling fans running at the wrong speed
• Intermittent fan operation caused by a failed control module
• Engine temperature fluctuations from poor fan control
• Cooling fan system warning lights related to module failure
• Reduced cooling performance during idle or low-speed driving

Installation Notes and Tips

• Verify connector count and pin layout before installation: 3 connectors total, with 3-pin, 2-pin, and 1-pin terminals.
• Confirm vehicle application by year, make, and model before ordering.
• Inspect the cooling fan motor, wiring, and related fuses or relays during diagnosis to avoid repeat failure.
• Because no wire harness is included, reuse the existing vehicle harness if it is in serviceable condition.

Quality Assurance

Gates manufactures the FCM145 as part of its Engine Cooling Fan Module product line for controlled electric fan operation in select Kia vehicles. The part is built with an aluminum/plastic housing and OE-style connector configuration to support proper fitment and function in the listed applications.
