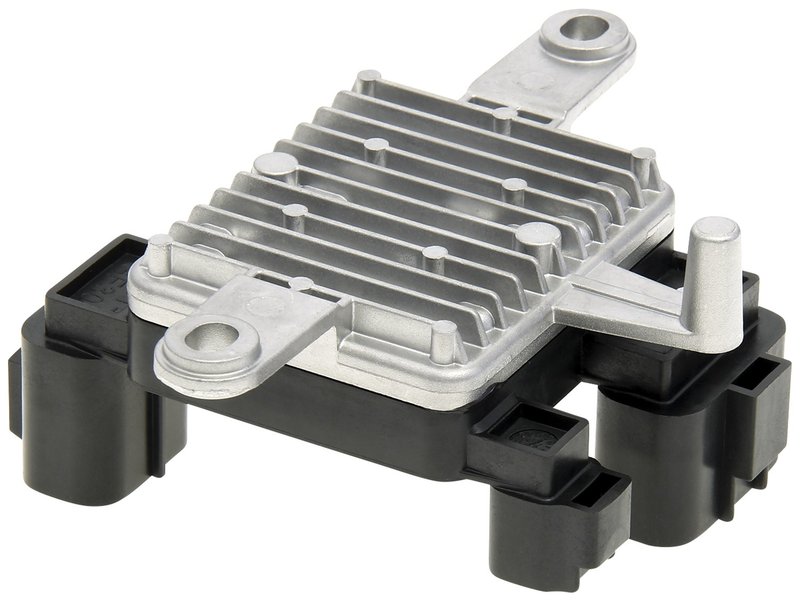

Gates FCM146 Engine Cooling Fan Module
| Brand | Gates FCM146 |
|---|---|
| 1 | |
| 2 | |
| 3 | |
| Connector 1 - # of Pins | 3 |
| Connector 2 - # of Pins | 2 |
| Connector 3 - # of Pins | 1 |
| Connector Quantity | 3 |
| Connector Type | Female |
| Connector Type | Female |
| Height | 2.43 |
| Height (in) | 2.43 |
| Housing Material | Aluminum/Plastic |
| Includes Harness | No |
| Length | 5.42 |
| Number of Connectors | 3 |
| Width | 4.67 |
| Wire Harness Included | No |
| Product line | Engine Cooling Fan Module |
| Fits | Hyundai and Kia · 14 vehicles |
Precision fan control. Helps regulate cooling fan speed to reduce energy loss and improve fuel economy.
Aluminum/plastic housing. Combines strength and lightweight construction in a compact module.
Three connectors. Female connector layout supports straightforward electrical integration.
Cross-references Gates FCM146, 25385-B8800 and 25385B8800 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Engine Cooling Control for Hyundai and Kia
The Gates FCM146 engine cooling fan module regulates electric cooling fan speed to help maintain stable engine coolant temperature. It is a direct-fit cooling control component for select Hyundai Santa Fe, Hyundai Santa Fe XL, and Kia Sorento applications.
Built with an aluminum/plastic housing and three female connectors, this module is sized for OE-style placement and electrical integration. Gates FCM146 is used where precise fan control is needed to manage heat load and support efficient engine operation.
Key Features
- Engine cooling fan module for electric fan control
- Three connector design with female terminals
- Aluminum/plastic housing for underhood use
- Compact dimensions: 5.42 in. long, 4.67 in. wide, 2.43 in. high
- Wire harness not included
- Gates FCM146 part number for direct identification
Product Details
The Gates Engine Cooling Fan Module line focuses on precise fan-speed management for vehicles equipped with electric cooling fans. By controlling fan operation more accurately, the module helps the cooling system respond to changing engine temperatures without unnecessary energy loss. This makes the Gates FCM146 a practical replacement for vehicles that rely on electronic fan control rather than a simple relay setup.
This part cross-references 25385-B8800 and 25385B8800 for the same application. It is a strong match for drivers searching for a Hyundai Santa Fe cooling fan module, Hyundai Santa Fe XL fan control module, or Kia Sorento engine cooling fan module.
What It Helps Address
- Cooling fans that run at the wrong speed
- Intermittent fan operation
- Engine temperature fluctuations
- Cooling system warning lights related to fan control
- Reduced efficiency from poor electric fan management
Installation Notes and Tips
Verify connector count, pin layout, and mounting dimensions before installation. The Gates FCM146 uses three female connectors, with connector pin counts of 3, 2, and 1, so matching the vehicle harness is important. Confirm fitment for 2013-2018 Hyundai Santa Fe, 2013-2018 Hyundai Santa Fe XL, and 2014-2015 Kia Sorento before replacement.
- Fits 2013-2018 Hyundai Santa Fe, N/A
- Fits 2013-2018 Hyundai Santa Fe XL, N/A
- Fits 2014-2015 Kia Sorento, N/A
Quality Assurance
Gates manufactures this cooling fan module as part of its Engine Cooling Fan Module product line for OE-style service replacement. The FCM146 is built to support precise electric fan control in the listed Hyundai and Kia applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Hyundai | Santa Fe | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2018 | Hyundai | Santa Fe XL | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2017 | Hyundai | Santa Fe | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2017 | Hyundai | Santa Fe XL | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2016 | Hyundai | Santa Fe | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2016 | Hyundai | Santa Fe XL | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2015 | Hyundai | Santa Fe | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2015 | Hyundai | Santa Fe XL | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2015 | Kia | Sorento | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2014 | Hyundai | Santa Fe | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2014 | Hyundai | Santa Fe XL | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2014 | Kia | Sorento | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2013 | Hyundai | Santa Fe | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
| 2013 | Hyundai | Santa Fe XL | 3.3L | V6 | GAS | N/A | Engine Cooling Fan Module |
