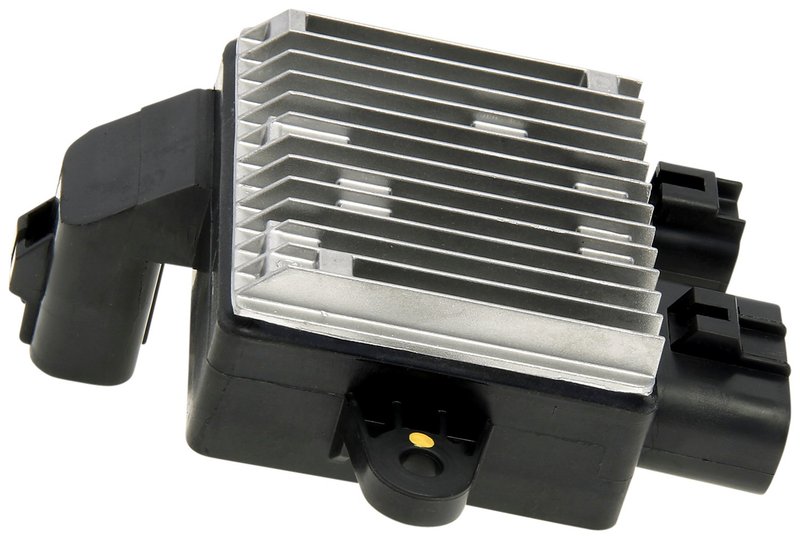

Gates FCM149 Engine Cooling Fan Module

Overview of Gates Engine Cooling Fan Module FCM149

The Gates Engine Cooling Fan Module FCM149 is designed to provide reliable cooling system control for select Hyundai vehicles. Engineered to meet the specific requirements of Hyundai Equus and Genesis models, this module ensures optimal engine temperature management.

• Dimensions: 5.43 inches (Length) x 5.04 inches (Width) x 2.55 inches (Height)
• Three female connectors with varying pin counts (3, 2, and 1 pin)
• Durable aluminum and plastic housing for heat resistance and longevity
• Connector quantity: 3, all female type
• Wire harness not included

About the Gates Engine Cooling Fan Module Product Line

The Gates Engine Cooling Fan Module product line focuses on delivering precise control modules that regulate engine cooling fans efficiently. This line is engineered to maintain proper engine temperature by managing fan operation based on vehicle demands. The FCM149 module is part of this line, designed specifically for Hyundai Equus and Genesis models, ensuring compatibility and performance within the cooling system.

Detailed Product Description

The Gates FCM149 Engine Cooling Fan Module features a compact design with dimensions of 5.43 inches in length, 5.04 inches in width, and 2.55 inches in height, making it suitable for integration within the engine bay of Hyundai Equus and Genesis vehicles. It includes three female connectors with 3, 2, and 1 pin configurations respectively, allowing for secure and precise electrical connections. The housing combines aluminum and plastic materials to provide durability and resistance to heat and vibration commonly found in engine compartments. Note that this module does not include a wire harness, so installation will require the use of existing or separately sourced harnesses.

Common Applications and Issues Addressed

• Regulates engine cooling fan operation to prevent overheating
• Replaces faulty or malfunctioning cooling fan control modules
• Resolves intermittent fan operation or failure to engage
• Helps maintain optimal engine temperature for Hyundai Equus and Genesis models
• Supports proper electrical connectivity with multiple connector pins

Installation Notes and Tips

When installing the Gates FCM149 Engine Cooling Fan Module, ensure the vehicle is powered off and cooled down to avoid injury. Verify connector pin alignment before securing connections to prevent damage. Since the wire harness is not included, confirm compatibility with existing harnesses or obtain the correct harness separately. Proper mounting of the module using the aluminum/plastic housing is essential to maintain stability and heat dissipation.

Quality Assurance and Warranty

Gates manufactures the FCM149 Engine Cooling Fan Module to meet industry standards for durability and performance. The combination of aluminum and plastic housing materials provides resistance to environmental factors within the engine bay. While specific warranty details are not provided here, Gates typically offers coverage against manufacturing defects. It is recommended to consult the product documentation or supplier for exact warranty terms.
