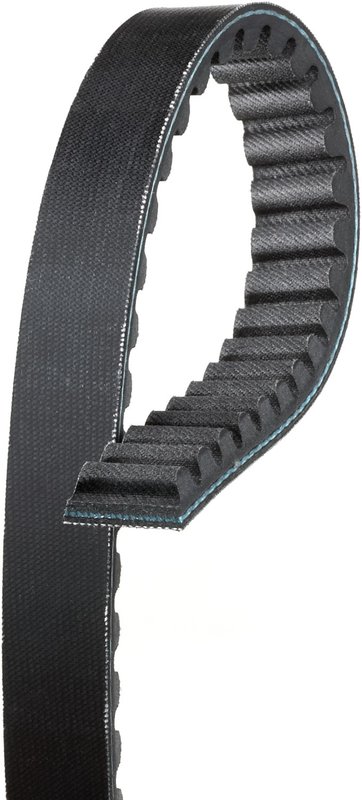

Gates PL20507 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt
| Brand | Gates PL20507 |
|---|---|
| Position | Drive Belt |
| Top Width | .708 |
| Top Width | 18 |
| Construction | Notched |
| Color | Black |
| Cord Material | Polyester |
| Cross Section Designation | Rvs-r |
| Outside Circumference | 26.338 |
| Outside Circumference | 669 |
| Type | Scooter cvt belt |
| Belt Material | Chloroprene |
| Angle | 30 |
| 9837 | Yes |
| Angle | 30 |
| Belt Material | Chloroprene |
| Color | Black |
| Construction | Notched |
| Cord Material | Polyester |
| Notched | Yes |
| OE Comparison Rating | Oe performance |
| Section | Rvs-r |
| Type | Scooter cvt belt |
| Fits | — |
OE-equivalent performance. Conventional belt with reliable durability for CVT applications.
Notched construction. Helps the belt flex smoothly in demanding drive systems.
Chloroprene belt. Polyester cord adds strength for consistent power transfer.
Cross-references Carlson 7173, Gates PL20507 and Gates PL30507 for the same application. See all 8.
Gates PL20507 Scooter CVT Belt Overview
The Gates PL20507 is a scooter CVT belt built for automatic continuously variable transmission systems used in street-legal step-through scooters and go-karts. It is a Gates POWERLINK drive belt with an OE performance rating, making it a direct-fit choice for riders and technicians looking for a reliable replacement belt for CVT service.
For scooter maintenance and transmission repair, the PL20507 offers the dimensions and construction needed for consistent belt tracking and dependable operation. It is a Gates scooter belt standard replacement for applications that call for a 669 mm outside circumference and 18 mm top width.
Key Features
- Gates POWERLINK scooter CVT belt for automatic continuously variable transmissions
- OE performance rating for standard replacement use
- Notched construction for flexible belt operation
- Chloroprene belt material with polyester cord reinforcement
- Black finish with RVS-R cross section designation
- 30-degree angle specification
- Outside circumference: 26.338 in. / 669 mm
- Top width: .708 in. / 18 mm
Product Details
The Gates POWERLINK line covers CVT belt applications for motorized scooters and go-karts, including street-legal step-through models. The PL20507 is part of that scooter belt standard lineup and is engineered as an OE-equivalent service part for automatic transmission systems that rely on precise belt dimensions and stable material construction. If you are servicing a scooter CVT belt application that calls for Gates PL20507, this belt provides the specified width, circumference, and notched profile needed for proper transmission operation. This part cross-references Carlson 7173 for the same application.
Common Issues This Belt May Address
- Worn or glazed CVT belt surfaces
- Belt slip during acceleration
- Inconsistent transmission engagement
- Noise caused by a deteriorated scooter drive belt
- Loss of performance from an out-of-spec CVT belt
Installation Notes and Tips
Verify the belt size, section, and angle against the original belt before installation. Confirm the CVT system is clean and inspect pulleys, variator components, and clutch surfaces for wear before fitting the new belt. For best results, install the Gates PL20507 on applications that match the required 669 mm outside circumference and 18 mm top width, including scooter and go-kart CVT setups that specify this part number.
Quality Assurance
Gates designs POWERLINK belts for CVT service with OE performance in mind, using chloroprene construction and polyester cord reinforcement for durability in standard scooter transmission applications. The Gates PL20507 is a technical replacement part identified by part number PL20507 and is intended for use where this exact specification is required.
