Gates PL20708 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Gates PL20708 Scooter CVT Belt Overview

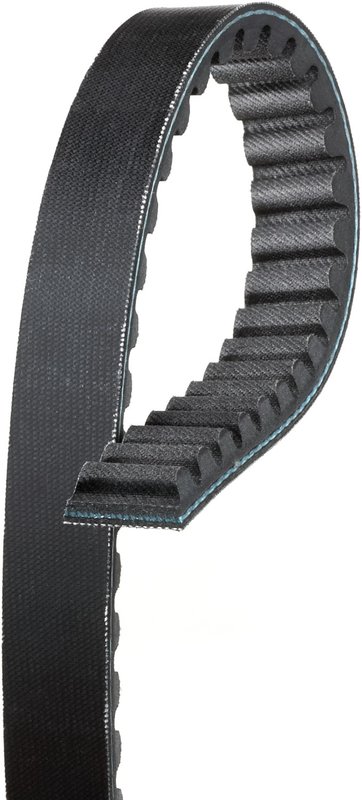

The Gates PL20708 is a scooter CVT belt built for automatic continuously variable transmission systems used in street-legal step-through scooters and go-karts. It is a black, notched belt with a chloroprene construction and polyester cord reinforcement for OE-performance replacement needs.

Gates POWERLINK belts are offered for CVT applications where consistent belt tracking, durability, and smooth transmission operation matter. The PL20708 follows the brand’s standard scooter belt format for everyday service replacement on compatible scooter and small-engine drivetrains.

Key Features

• Part number: PL20708
• Gates POWERLINK scooter belt, standard line
• Automatic continuously variable transmission (CVT) belt
• Top width: 20 mm (.787 in.)
• Outside circumference: 842 mm (33.149 in.)
• Notched construction for flexible operation
• Chloroprene belt material with polyester cord reinforcement
• 30-degree angle and RVS-R section designation
• OE performance rating for replacement use
• Black finish

Product Details

The Gates PL20708 CVT belt is engineered for scooter and go-kart transmission systems that rely on a continuously variable drive belt to transfer power smoothly through changing ratios. Its notched design, chloroprene compound, and polyester cord material are specified to support stable operation in standard service applications. If you are sourcing a scooter CVT belt for a Gates POWERLINK replacement, PL20708 is the direct part number to reference. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

For shoppers searching long-tail terms such as Gates PL20708 scooter CVT belt, 20 mm x 842 mm scooter drive belt, or OE performance CVT belt for step-through scooters, this part matches those technical requirements. It is also a relevant replacement search for select scooter and go-kart drivetrains, including Honda scooter applications where the OEM belt specification calls for this size and profile.

Common Problems This Belt Can Address

• Worn or glazed CVT belt surfaces
• Belt slip during acceleration
• Loss of smooth ratio changes in the transmission
• Noise or vibration from an aged drive belt
• Reduced drivability caused by belt stretch or cracking

Installation Notes and Tips

Verify belt width, outside circumference, angle, and section designation before installation. Confirm the CVT pulley faces are clean and inspect the variator and clutch components for wear that could shorten belt life. For Honda scooter and similar CVT applications, match the OEM belt dimensions to the PL20708 before service. Proper belt seating and correct directional installation, if specified by the vehicle manufacturer, should be checked during assembly.

Quality Assurance

Gates POWERLINK belts are produced for CVT service replacement with OE-equivalent performance targets in standard applications. The PL20708 is a Gates scooter belt built to the brand’s established transmission component specifications for dependable fit and function in compatible scooter and go-kart drivetrains.
