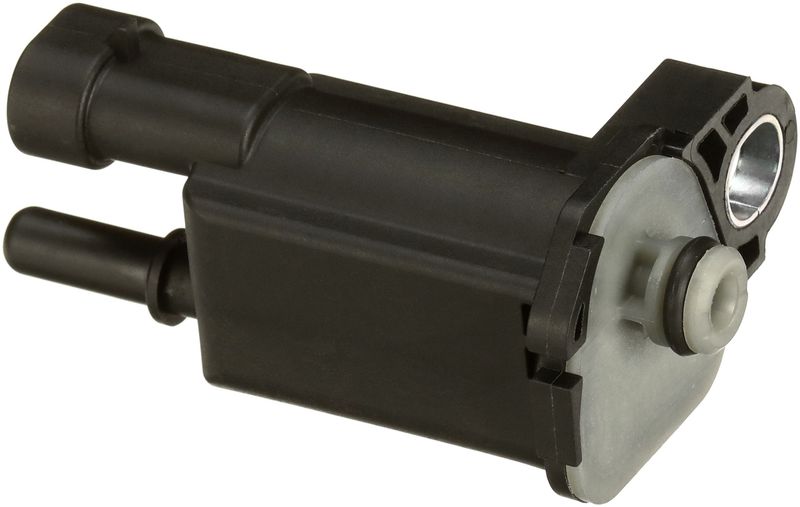

Gates PV397 Vapor Canister Purge Solenoid

Vapor Canister Purge Solenoid for GM Applications

Gates PV397 is a vapor canister purge solenoid built for evaporative emissions control service on a wide range of GM vehicles. It restores purge valve operation in the EVAP system, helping the engine manage fuel vapors correctly on applications such as the Chevrolet Silverado 1500, Chevrolet Impala, and Buick Lucerne.

Key Features

• Vapor canister purge solenoid for EVAP system repair
• High-quality construction for durability and service life
• 2 hose ports for direct vapor line routing
• 1 female oval connector with 2 male blade terminals
• Outside diameter dimensions listed at 8 mm and 9 mm, plus .3 and .34 in. references
• Gates PV397 replacement part number for service matching

Product Details

The Gates Vapor Canister Purge Solenoid line is focused on restoring proper evaporative emission control operation after a failed purge valve, sticking solenoid, or electrical fault. Gates PV397 is engineered as a direct replacement for the original purge solenoid used across many 2006-2016 GM platforms, including Buick Verano, Chevrolet Express 1500, and Cadillac DTS applications. This part cross-references GM OE number 12592015 for the same application.

When the purge solenoid is functioning correctly, fuel vapors are routed through the EVAP system as commanded by the engine control module. A worn or malfunctioning unit can disrupt that process and trigger drivability or emissions concerns. Gates PV397 is built to return the system to proper operation with the correct connector style, terminal layout, and hose-port configuration.

Common Issues This Part May Resolve

• Check engine light related to EVAP purge performance
• Rough idle caused by a purge valve stuck open
• Hard starting after refueling
• Fuel vapor leakage from a failing purge solenoid
• Emissions test failure tied to EVAP system faults

Installation Notes and Tips

Verify connector shape, terminal count, hose-port layout, and outside diameter measurements before installation. Confirm the vehicle’s EVAP routing and compare the original unit to Gates PV397 before replacing the part. After installation, clear diagnostic trouble codes and recheck for EVAP-related faults.

Compatible With 2013-2016 Buick Verano; 2008-2014 Chevrolet Express 1500; 2011-2013 Buick Regal; 2007-2013 Chevrolet Silverado 1500; 2006-2011 Buick Lucerne; 2006-2011 Cadillac DTS; 2006-2011 Chevrolet Impala; 2006-2010 Cadillac STS; 2008-2010 Chevrolet Cobalt; 2008-2010 Chevrolet HHR; 2009-2010 Chevrolet Malibu; 2006-2007 Chevrolet Malibu; 2006-2010 Pontiac G6; 2006-2009 Buick Allure; 2006-2009 Buick LaCrosse; 2006-2009 Cadillac SRX; 2006-2009 Cadillac XLR; 2006-2009 Chevrolet Uplander; 2006-2008 Pontiac Grand Prix; 2006-2007 Buick Rendezvous; 2006-2007 Buick Terraza; 2006-2007 Chevrolet Monte Carlo; 2007 Chevrolet Silverado 1500 Classic.

Quality Assurance

Gates manufactures this purge solenoid from durable materials to support long service life in emission control use. The PV397 is a direct-fit service part for confirmed applications and is backed by Gates’ product engineering standards.
