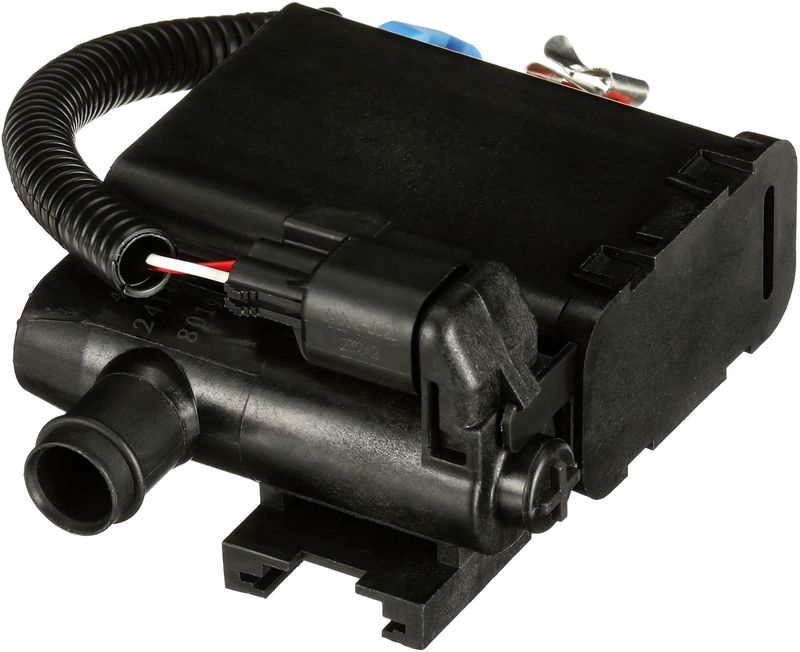

Gates PV440 Vapor Canister Purge Solenoid

Gates PV440 Vapor Canister Purge Solenoid

The Gates PV440 vapor canister purge solenoid helps restore evaporative emissions control performance when the original valve is no longer operating correctly. Built with durable materials for long service life, it is a direct replacement choice for a wide range of Chevrolet, Cadillac, Saturn, Buick, Pontiac, and Oldsmobile applications.

Compatible With 1998-2013 Chevrolet Corvette, 1999-2002 Chevrolet Camaro, 2003-2005 Chevrolet Impala, and other listed GM vehicles, this purge solenoid supports proper fuel vapor routing in the EVAP system. The Gates PV440 is also a fitment match for Saturn L-Series, S-Series, and select Buick, Pontiac, and Oldsmobile models.

Key Features

• Brand: Gates Vapor Canister Purge Solenoid
• Part number: PV440
• Constructed from high-quality materials for durability and service life
• Helps restore proper EVAP system operation
• 1 hose port, 1 oval connector, 2 terminals
• Female connector with male pin terminals
• Outside diameter: 0.46 in. / 12 mm

Product Details

The Gates Vapor Canister Purge Solenoid line is focused on replacing a critical emissions-control component that regulates vapor flow from the charcoal canister into the engine intake. When the purge solenoid sticks, leaks, or fails electrically, the EVAP system can lose its ability to manage fuel vapors correctly. Replacing it with the PV440 helps return the system to proper operation on applications such as Chevrolet Corvette, Cadillac XLR, and Saturn L300 models.

This part cross-references Dorman OE Solutions 911-075 and Standard Ignition CVS92 for the same application.

What It May Help Fix

• Check engine light related to EVAP purge circuit faults
• Fuel vapor leakage from a purge valve that no longer seals properly
• Rough idle or drivability issues caused by incorrect purge flow
• Failed emissions inspection tied to evaporative emissions system faults
• Hard starting after refueling when purge control is not functioning correctly

Installation Notes and Tips

Verify connector shape, terminal count, hose port layout, and outside diameter against the original part before installation. This PV440 uses a female oval connector with two male pin terminals and one hose port, so matching the OE configuration is important for proper fitment. Confirm the vehicle application by year, make, and model before replacing the purge solenoid.

Fits 2000-2013 Chevrolet Corvette, N/A; 2004-2009 Cadillac XLR, N/A; 2003-2005 Chevrolet Impala, N/A; 2003-2005 Saturn L300, N/A; 2001 Saturn L300, N/A; 2003 Saturn L200, N/A; 2001 Saturn L200, N/A; 2003 Saturn LW200, N/A; 2001 Saturn LW200, N/A; 2003 Saturn LW300, N/A; 2001 Saturn LW300, N/A; 1999-2002 Chevrolet Camaro, N/A; 1999-2002 Pontiac Firebird, N/A; 2001-2002 Saturn SC1, N/A; 1998-1999 Saturn SC1, N/A; 2001-2002 Saturn SC2, N/A; 1998-1999 Saturn SC2, N/A; 2001-2002 Saturn SL, N/A; 1998-1999 Saturn SL, N/A; 2001-2002 Saturn SL1, N/A; 1998-1999 Saturn SL1, N/A; 2001-2002 Saturn SL2, N/A; 1998-1999 Saturn SL2, N/A; 2000-2001 Buick Century, N/A; 2000-2001 Buick Regal, N/A; 2000-2001 Chevrolet Impala, N/A; 2000-2001 Chevrolet Lumina, N/A; 2001 Saturn L100, N/A; 2001 Saturn SW2, N/A; 1998-1999 Saturn SW2, N/A; 2000 Chevrolet Monte Carlo, N/A; 1998-2000 Oldsmobile Intrigue, N/A; 1998-2000 Pontiac Grand Prix, N/A; 2000 Saturn LS, N/A; 2000 Saturn LS1, N/A; 2000 Saturn LS2, N/A; 2000 Saturn LW1, N/A; 2000 Saturn LW2, N/A; 1998-1999 Buick Century, N/A; 1998-1999 Buick Regal, N/A; 1999 Buick Riviera, N/A; 1998-1999 Saturn SW1, N/A.

Quality Assurance

Gates manufactures this vapor canister purge solenoid with durable materials to support long service life and consistent EVAP system performance. The PV440 is built as a replacement part for restoring emissions-control operation on the listed GM applications.
