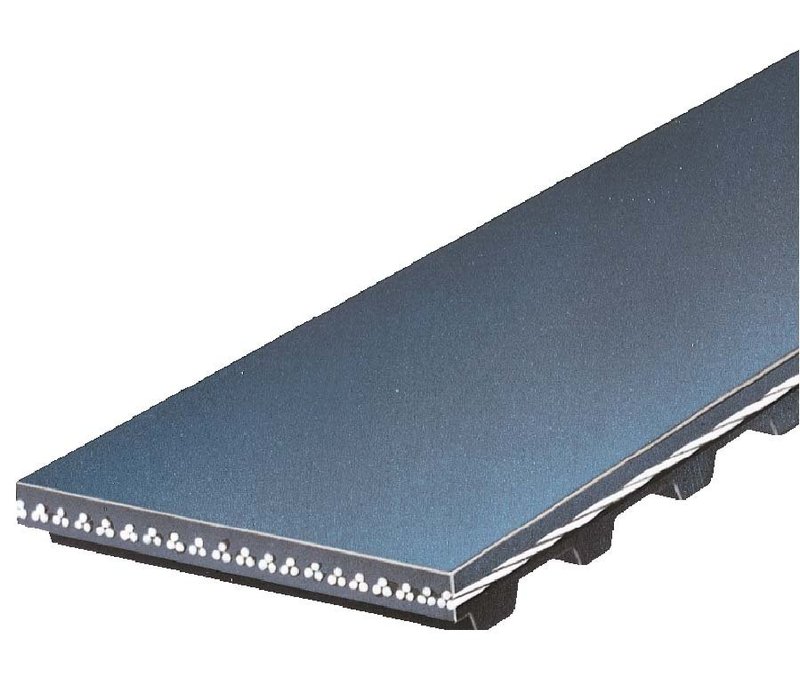

Gates T117 Engine Timing Belt
| Brand | Gates T117 |
|---|---|
| 40.875 | |
| 1038 | |
| Belt Material | HSN |
| Belt Material | HSN |
| Cog Quantity | 109 |
| Color | Black |
| Cord Material | Fiberglass |
| Cord Material | Fiberglass |
| OE Comparison Rating | OE Exact |
| Pitch | .375 |
| Pitch | 9.5 |
| Pitch Length (in) | 40.875 |
| Pitch Length (mm) | 1038 |
| Profile Type | Curvilinear (II) |
| Timing Marks | No |
| Top Width | .866 |
| Top Width | 22 |
| Type | Automotive Timing Belt |
| Type | Automotive Timing Belt |
| Product line | PowerGrip Premium OE Timing Belt |
| Fits | Mazda · 4 vehicles |
OE exact replacement. Meets OE standards for fit, function, and performance.
Heat-resistant HSN belt. Built to resist wear and contamination.
Fiberglass cord. Adds strength and stable belt performance.
Cross-references Bando TB117, Dayco 95117 and Gates T117 for the same application. See all 28.
Gates T117 Timing Belt for Mazda
The Gates PowerGrip Premium OE Timing Belt T117 is built for precise valve timing in select Mazda applications. It uses an OE exact comparison rating, HSN belt material, fiberglass cord reinforcement, and a curvilinear profile to support consistent operation in demanding engine environments.
Key Features
- Gates PowerGrip Premium OE Timing Belt line for OE-style replacement needs
- Part number T117 for direct catalog identification
- Curvilinear (II) profile for timing belt engagement
- HSN construction with fiberglass cord reinforcement
- Black automotive timing belt with no timing marks
- 109 cog design and 22 mm top width
- 40.875 in. pitch length (1038 mm)
- OE Exact comparison rating
Product Details
Gates manufactures OE timing belts for a wide range of import and domestic vehicles, and the PowerGrip Premium OE Timing Belt line is positioned for replacement applications that require fit, function, and performance aligned with original equipment standards. The T117 is a timing belt for engine valve train service, engineered with heat, wear, and contamination resistance in mind. This part cross-references Dayco 95117 for the same application.
Compatible With 1986-1987 Mazda 626, N/A; Fits 1987 Mazda B2000, N/A; Fits 1986 Mazda B2000, N/A. Use the part number T117 to confirm the correct timing belt for your Mazda 626 or Mazda B2000 application before service.
Common Problems This Part Addresses
- Worn or stretched timing belt material
- Noise or irregular operation from an aging belt
- Loss of accurate camshaft and crankshaft synchronization
- Heat-related belt deterioration
- Contamination-related belt wear
Installation Notes and Tips
Verify engine code, chassis details, and belt dimensions before installation. The T117 does not include timing marks, so timing alignment should be set using the vehicle service procedure and the engine’s reference marks. Inspect related timing components and confirm proper tension after installation.
Quality Assurance
Gates is a global OE timing belt manufacturer, and the PowerGrip Premium OE Timing Belt line is produced to meet or exceed OE standards for fit, function, and performance. The T117 is built for long-term service in timing-critical engine applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1987 | Mazda | 626 | 2.0L | L4 | GAS | N/A | PowerGrip Premium OE Timing Belt |
| 1987 | Mazda | B2000 | 2.0L | L4 | GAS | N/A | PowerGrip Premium OE Timing Belt |
| 1986 | Mazda | 626 | 2.0L | L4 | GAS | N/A | PowerGrip Premium OE Timing Belt |
| 1986 | Mazda | B2000 | 2.0L | L4 | GAS | N/A | Chassis No. 568708 & After; PowerGrip Premium OE Timing Belt |
