Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

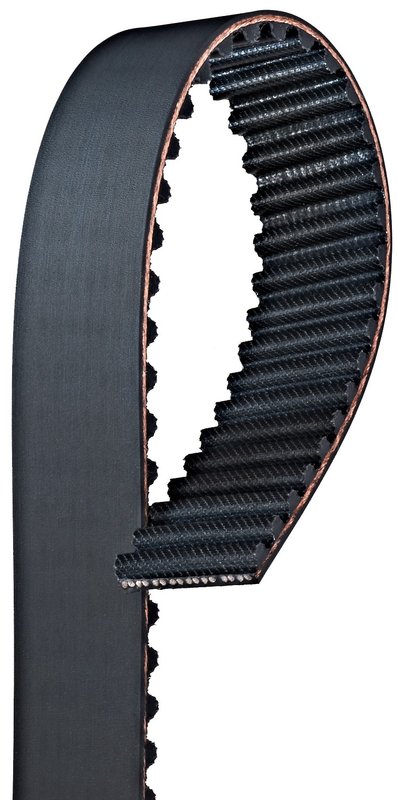

Gates T151 Engine Timing Belt - Left
| Brand | Gates T151 |
|---|---|
| Position | Left |
| 43.78 | |
| 1112 | |
| Belt Material | HSN |
| Belt Material | HSN |
| Cog Quantity | 139 |
| Color | Black |
| Cord Material | Fiberglass |
| Cord Material | Fiberglass |
| OE Comparison Rating | OE Exact |
| Pitch | .315 |
| Pitch | 8 |
| Pitch Length (in) | 43.78 |
| Pitch Length (mm) | 1112 |
| Profile Type | Modified Curvilinear (III) |
| Timing Marks | No |
| Top Width | 1.102 |
| Top Width | 28 |
| Type | Automotive Timing Belt |
| Type | Automotive Timing Belt |
| Product line | PowerGrip Premium OE Timing Belt |
| Fits | Subaru |
OE exact replacement. Meets OE standards for fit, function, and performance.
HSN belt material. Resists heat, wear, and contamination for dependable service.
Fiberglass cord. Adds strength and stability to the timing belt design.
Cross-references Bando TB151, Gates T151 and PowerStop B151 for the same application. See all 17.
Gates T151 Timing Belt Overview
The Gates PowerGrip Premium OE Timing Belt T151 is an automotive timing belt built to OE exact standards for fit, function, and performance. It uses a modified curvilinear (III) profile, HSN belt material, and fiberglass cord construction to help maintain accurate valve timing in demanding engine environments.
Gates timing belts are engineered for broad coverage across import and domestic applications, including many Honda Civic and Toyota Corolla timing belt applications where precise synchronization is critical. If you are replacing a worn engine timing belt, the Gates T151 offers a direct OE-style solution for service work that requires consistent tooth engagement and dimensional accuracy.
Key Features
- PowerGrip Premium OE Timing Belt line from Gates
- Part number T151
- OE Exact comparison rating
- Modified curvilinear (III) tooth profile
- HSN belt material for heat and wear resistance
- Fiberglass cord reinforcement
- Black automotive timing belt with no timing marks
- 139 cog count
- 28 mm top width and 8 mm pitch
- 43.78 in. pitch length (1112 mm)
Product Details
The Gates PowerGrip Premium OE Timing Belt line is positioned as an OE-style replacement program for engine timing service. For the T151, Gates specifies a modified curvilinear tooth design, fiberglass cord, and HSN construction to support stable operation under heat, wear, and contamination exposure. This timing belt is intended for engines that require exact tooth spacing and consistent belt tracking, making it a practical choice for timing belt replacement on select Honda Civic and Toyota Corolla applications, as well as other listed interchange references.
This part cross-references Bando TB151 for the same application.
Common Problems This Part Can Address
- Cracked, glazed, or worn timing belt teeth
- Noise or irregular operation from an aging belt
- Loss of valve timing accuracy caused by belt stretch or wear
- Service replacement after scheduled timing belt maintenance
- Engine performance issues related to timing belt deterioration
Installation Notes and Tips
Verify belt length, pitch, cog count, and profile before installation. Confirm engine code and timing system requirements for the vehicle, since timing belt applications can vary by model year and engine configuration. Inspect related timing components during service, and set belt tension according to the vehicle manufacturer’s procedure. For Honda Civic and Toyota Corolla timing belt replacement jobs, always align timing marks on the engine components before final assembly.
Quality Assurance
Gates is a global OE timing belt manufacturer with aftermarket coverage built to meet or exceed OE standards of fit, function, and performance. The T151 is specified as an OE Exact timing belt and is engineered for resistance to heat, wear, and contamination.
