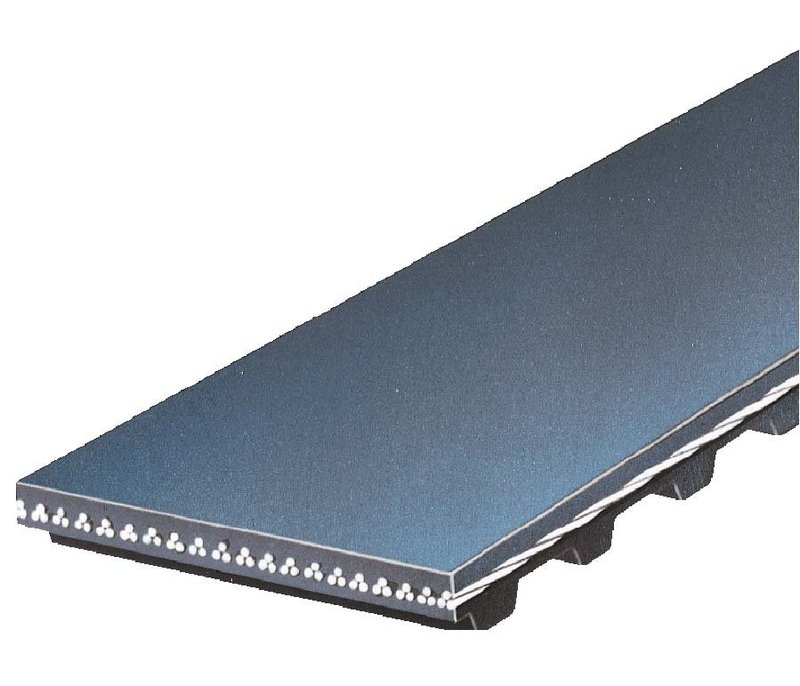

Gates T160 Engine Timing Belt

Gates T160 Timing Belt for Honda Applications

The Gates PowerGrip Premium OE Timing Belt T160 is built for precise valve timing in select Honda engines. It is a direct-fit automotive timing belt for 1986-1989 Honda Accord and 1986-1987 Honda Prelude applications with interference engines.

Key Features

• PowerGrip Premium OE Timing Belt line for OE-style fit, function, and performance
• Curvilinear (II) profile for controlled tooth engagement
• HSN belt material for resistance to heat, wear, and contamination
• Fiberglass cord reinforcement for strength and dimensional stability
• Black timing belt with 108 cogs
• OE Exact comparison rating
• No timing marks
• Top width: 24 mm (.945 in)
• Pitch: 9.5 mm (.375 in)
• Pitch length: 1029 mm (40.5 in)

Product Details

Gates PowerGrip Premium OE Timing Belt products are engineered for applications that demand accurate camshaft and crankshaft synchronization. The T160 is specified for select Honda Accord and Honda Prelude models, including interference-engine configurations, where correct timing belt performance is critical to engine operation. Gates manufactures OE timing belts for a wide range of import and domestic vehicles, and this belt is part of that OE-focused coverage.

This part cross-references Dayco 95160 and Bando TB160 for the same application.

Common Problems This Belt Helps Address

• Engine timing noise caused by a worn or stretched belt
• Loss of valve timing accuracy from belt wear or contamination
• Starting and drivability issues related to timing belt deterioration
• Risk of timing slip in interference-engine Honda Accord and Honda Prelude applications
• Service replacement for a belt showing age, cracking, or glazing

Installation Notes and Tips

Verify engine code and timing belt routing before installation. Because this belt is used on interference engines, correct camshaft and crankshaft alignment is essential during service. Replace related wear components and inspect pulleys, tensioners, and seals while the timing system is open. Confirm the part number T160 against the vehicle’s engine application before ordering.

Quality Assurance

Gates positions the PowerGrip Premium OE Timing Belt line as an OE-standard replacement option, with materials selected for heat, wear, and contamination resistance. The T160 is built to OE Exact comparison standards for the listed Honda applications.
