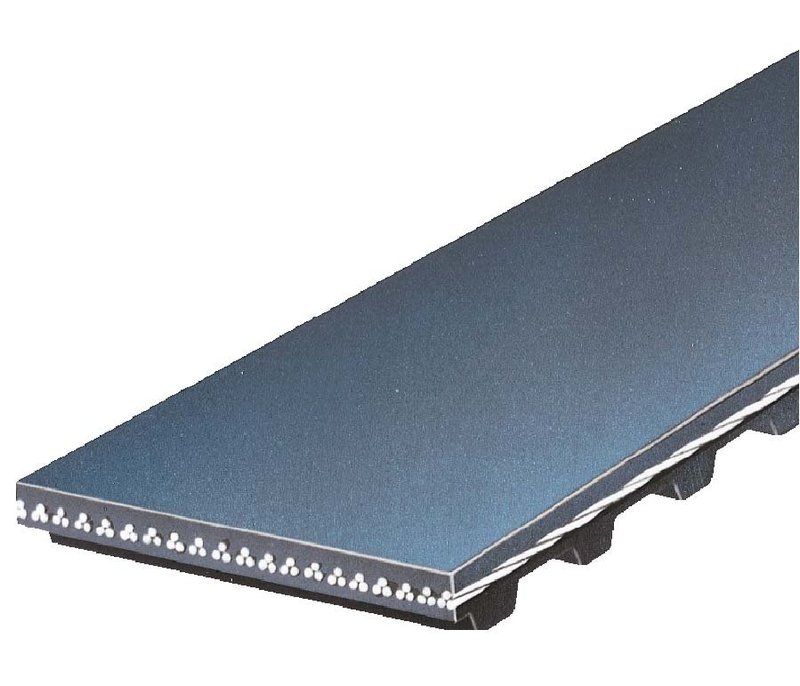

Gates T205 Engine Timing Belt

Gates T205 Timing Belt Overview

The Gates PowerGrip Premium OE Timing Belt T205 is an automotive timing belt built for precise valve train operation in select import applications. It is engineered with HSN belt material, fiberglass cord reinforcement, and an OE Exact comparison rating for direct replacement use.

Compatible With 1992-1993 Geo Storm and 1992 Isuzu Impulse and Stylus applications, this Gates timing belt supports accurate camshaft and crankshaft synchronization in engines that require a 51.339-inch pitch length and 163-cog curvilinear profile.

Key Features

• Gates PowerGrip Premium OE Timing Belt line for OE-style replacement
• Part number T205 for application-specific lookup
• Curvilinear (II) profile type for timing system engagement
• HSN belt material for heat, wear, and contamination resistance
• Fiberglass cord construction for strength and dimensional stability
• OE Exact comparison rating
• Black timing belt with no timing marks
• 51.339-inch pitch length, 1304 mm pitch length, 8 mm pitch

Product Details

Gates is a global manufacturer of OE timing belts, and the PowerGrip Premium OE Timing Belt line is built to meet or exceed OE standards for fit, function, and performance. The T205 timing belt is specified for 1992-1993 Geo Storm, 1992 Isuzu Impulse, and 1992 Isuzu Stylus applications, making it a focused replacement choice for vehicles that require exact timing belt dimensions and profile geometry. This part cross-references Baldwin B205 for the same application.

Common Problems This Part Can Address

• Engine timing noise caused by a worn or stretched belt
• Loss of camshaft and crankshaft synchronization
• Visible cracking, glazing, or tooth wear on the existing belt
• Timing drift from age-related belt deterioration
• Service replacement for scheduled timing belt maintenance

Installation Notes and Tips

Verify engine code and timing system specifications before installation. Replace the belt only after confirming the correct application for your Geo Storm, Isuzu Impulse, or Isuzu Stylus, and inspect related timing components for wear during service. Because this belt has no timing marks, follow the vehicle service procedure and timing alignment references exactly during installation.

Quality Assurance

Gates manufactures OE timing belts for broad import and domestic coverage, with materials selected for resistance to heat, wear, and contamination. The PowerGrip Premium OE Timing Belt T205 is built to OE Exact standards for fit and performance in the listed applications.
