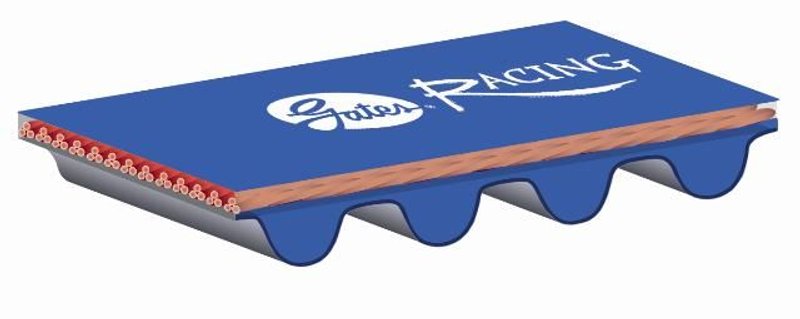

Gates T224RB Engine Timing Belt

Overview of Gates High Performance Automotive Timing Belt T224RB

The Gates High Performance Automotive Timing Belt T224RB is engineered for reliable valve train operation in select Acura and Honda vehicles. Designed with durability and precision in mind, this timing belt supports optimal engine timing for models like the Honda Civic, Civic del Sol, and EL.

• Profile Type: Modified curvilinear (iii) for enhanced tooth engagement
• Top Width: 0.945 inches (24 mm)
• Pitch: 0.375 inches (9.5 mm)
• Cord Material: Fiberglass for strength and flexibility
• Belt Material: HSN (High-Strength Neoprene)
• Number of Teeth: 104
• Pitch Length: 39 inches (991 mm)
• Color: Blue
• Quantity: 1 belt per package
• Timing Marks: None

About the High Performance Automotive Timing Belt Product Line

The Gates High Performance Automotive Timing Belt line focuses on delivering enhanced durability and consistent performance under demanding engine conditions. This product line utilizes advanced materials such as fiberglass cords and HSN belt compounds to maintain precise timing and resist wear. The T224RB model exemplifies these qualities, making it suitable for high-performance applications in Acura and Honda engines.

Detailed Product Description

The T224RB timing belt features a modified curvilinear (iii) tooth profile, which improves the meshing with sprockets and reduces noise and wear. Its fiberglass cord construction provides excellent tensile strength and flexibility, ensuring the belt maintains proper tension and alignment over time. The HSN belt material offers resistance to heat and oil, contributing to longer service life. With a top width of 0.945 inches and 104 teeth, this belt is designed to meet the exact specifications required by compatible Acura and Honda models, including the Civic, Civic del Sol, and EL.

Common Applications and Issues Addressed

• Maintains precise engine valve timing for smooth operation
• Prevents engine misfires caused by worn or stretched belts
• Reduces risk of belt failure under high-performance conditions
• Replaces aging or damaged timing belts in Acura and Honda vehicles
• Supports engine longevity by ensuring proper synchronization

Installation Notes and Tips

When installing the Gates T224RB timing belt, ensure the engine is properly aligned according to manufacturer specifications. Since this belt does not include timing marks, careful attention to the engine’s timing components is necessary. It is recommended to inspect related components such as tensioners and pulleys during replacement. Proper tensioning is critical to avoid premature wear or slippage.

Quality Assurance and Warranty

Gates timing belts are manufactured to meet stringent quality standards, using high-grade materials for durability and performance. While specific warranty details for the T224RB are not provided here, Gates typically offers coverage against manufacturing defects. For precise warranty information, consult the product documentation or authorized distributors.
