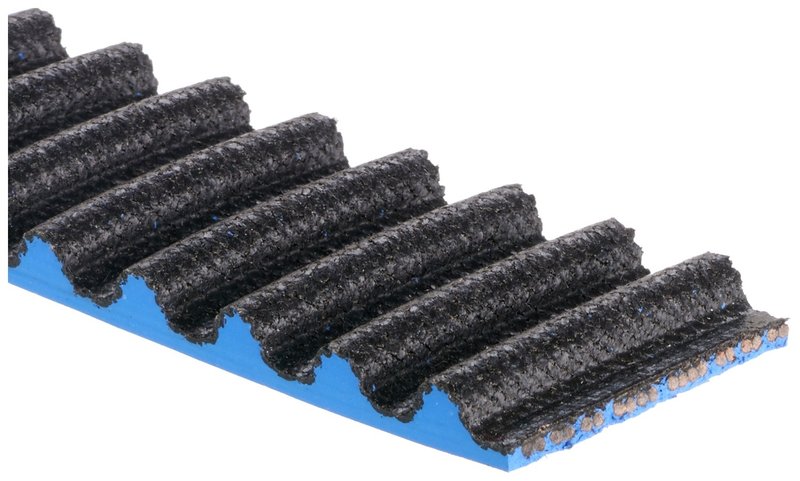

Gates T234RB Engine Timing Belt

Overview of Gates High Performance Automotive Timing Belt T234RB

The Gates High Performance Automotive Timing Belt T234RB is engineered for reliable valve train operation in select Volvo vehicles. Designed with a modified curvilinear (iii) profile and constructed from durable HSN material with fiberglass cords, this timing belt supports precise engine timing and longevity.

• Compatible with Volvo 240 and 940 models
• Modified curvilinear (iii) profile for optimized tooth engagement
• Blue color for easy identification
• Top width of 19 mm (.75 in) and pitch of 10 mm (.375 in)
• 123 teeth with a pitch length of 1172 mm (46.13 in)
• Constructed from high-performance HSN belt material reinforced with fiberglass cords
• High performance grade type for demanding engine conditions

About the High Performance Automotive Timing Belt Product Line

The Gates High Performance Automotive Timing Belt line is designed to meet the rigorous demands of modern engines requiring precise timing and durability. This product line focuses on enhanced materials and profiles, such as the modified curvilinear (iii) design, to improve belt engagement and reduce wear. The T234RB model exemplifies these qualities, making it suitable for Volvo engines that require consistent valve train synchronization.

Technical Details and Specifications

The T234RB timing belt features a modified curvilinear (iii) tooth profile, which improves the meshing between the belt and sprockets, reducing slippage and noise. The belt’s top width measures 19 mm (.75 inches), with a pitch of 10 mm (.375 inches), and it contains 123 teeth over a pitch length of 1172 mm (46.13 inches). The belt material is HSN, known for its resistance to heat and wear, while the fiberglass cord reinforcement provides tensile strength and flexibility. The belt does not include timing marks, so alignment should be done according to manufacturer specifications.

Applications and Problem Solving

• Maintains precise valve timing in Volvo 240 and 940 engines
• Replaces worn or damaged timing belts to prevent engine misfires
• Addresses belt stretching or cracking issues in high mileage vehicles
• Supports high performance engine conditions requiring durable timing components
• Prevents potential engine damage caused by timing belt failure

Installation Notes and Tips

When installing the Gates T234RB timing belt, ensure proper tensioning according to Volvo service manuals. Since this belt does not have timing marks, careful alignment with engine timing components is critical. Inspect related components such as tensioners and pulleys during installation to ensure optimal performance and longevity.

Quality Assurance and Warranty

Gates manufactures the T234RB timing belt to meet stringent quality standards for durability and performance. The use of high-grade HSN material and fiberglass cords ensures resistance to heat and wear. While specific warranty details are not provided, Gates products typically come with manufacturer-backed quality assurance to support reliable engine operation.
