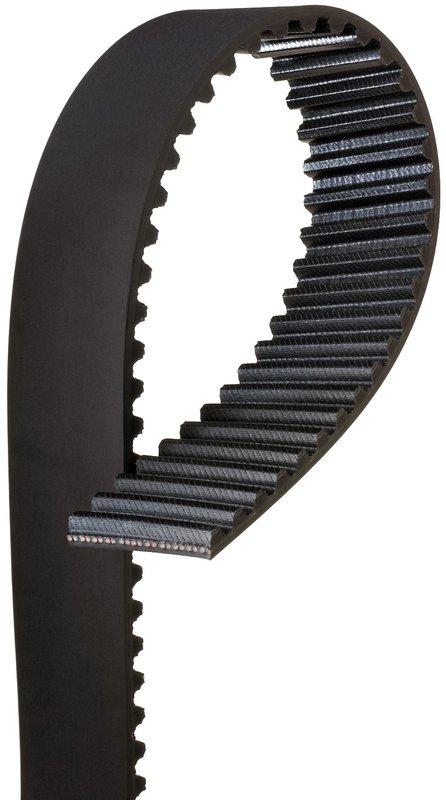

Gates T240 Engine Timing Belt

Gates T240 Timing Belt Overview

The Gates PowerGrip Premium OE Timing Belt T240 is built for direct replacement service on select Toyota engines. It combines an OE exact comparison rating with heat-, wear-, and contamination-resistant construction for dependable valve timing control.

Compatible with 1993-1995 Toyota 4Runner, 1993-1995 Toyota Pickup, and 1993-1994 Toyota T100, this timing belt is a fitment-focused choice for import truck and SUV maintenance. The Gates T240 is also a common cross-reference for Dayco 95240 and Continental 40240 applications.

Key Features

• PowerGrip Premium OE Timing Belt from Gates
• OE exact comparison rating for replacement service
• Curvilinear (II) profile type
• Timing marks included for alignment reference
• HSN belt material with fiberglass cord reinforcement
• Black automotive timing belt with 193 cogs
• 60.787 in. pitch length, 1544 mm pitch length
• 1.417 in. top width and .315 in. pitch

Product Details

Gates designs OE timing belts for broad aftermarket coverage across import and domestic vehicles, and the PowerGrip Premium OE Timing Belt line is positioned for replacement work that follows original equipment fit, function, and performance standards. Part number T240 is specified for select Toyota 4Runner, Pickup, and T100 applications, making it a practical choice when servicing the engine valve train on these models.

The belt uses HSN material and fiberglass cord construction to help maintain dimensional stability under engine heat and operating stress. Timing marks support installation alignment, while the curvilinear tooth profile is engineered for smooth engagement with the timing system.

Common Problems This Belt Can Address

• Worn or stretched timing belt affecting camshaft and crankshaft synchronization
• Visible cracking, glazing, or tooth wear on the existing belt
• Noise from an aging timing drive system
• Maintenance replacement at the recommended service interval
• Timing alignment concerns during engine service

Installation Notes and Tips

Verify engine code and vehicle application before installation, especially on 1993-1995 Toyota 4Runner, 1993-1995 Toyota Pickup, and 1993-1994 Toyota T100 models. Inspect related timing components, belt routing, and alignment marks before final assembly. Because this is an engine timing belt, correct indexing and tensioning are critical to proper valve train operation.

Use the timing marks as a reference during setup, and confirm that all pulleys and sprockets are clean and free of contamination before fitting the belt.

Quality Assurance

Gates is a global OE timing belt manufacturer with aftermarket coverage built around OE-style fitment and performance expectations. The T240 is produced as an OE exact replacement option for the listed Toyota applications.
