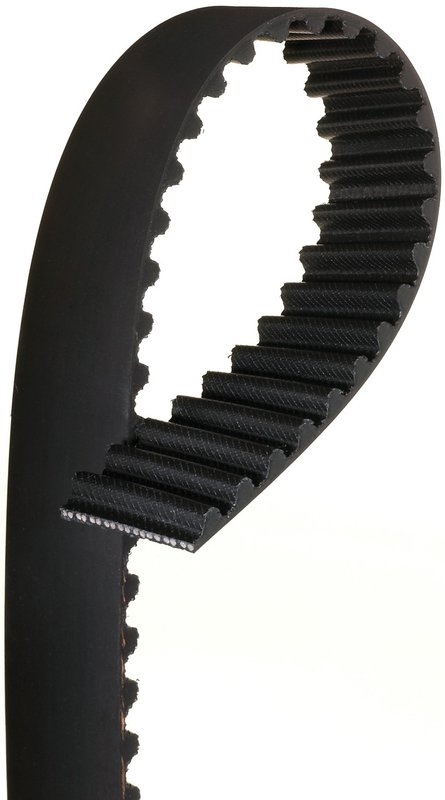

Gates T243 Engine Timing Belt

Gates T243 Timing Belt for OE-Style Engine Service

The Gates PowerGrip Premium OE Timing Belt T243 is built for precise valve timing in select import applications. It is an OE Exact timing belt with a modified curvilinear profile, fiberglass cord reinforcement, and HSN belt material for dependable fit and consistent operation.

Compatible with 1995 Suzuki Samurai, 1994 Geo Metro, 1994 Suzuki Samurai, and 1994 Suzuki Swift, this timing belt supports engine service where accurate camshaft and crankshaft synchronization is required. The Gates PowerGrip Premium OE Timing Belt line is positioned as an OE replacement solution for import and domestic coverage, with materials selected for resistance to heat, wear, and contamination.

Key Features

• Part number T243
• OE Exact comparison rating for OE-style fit and function
• Modified Curvilinear (III) tooth profile
• HSN belt material for durability in engine environments
• Fiberglass cord material for strength and dimensional stability
• Black automotive timing belt with 89 cogs
• 19 mm top width and 9.5 mm pitch
• 33.375 in. pitch length (848 mm)
• No timing marks

Product Details

Gates T243 is an automotive timing belt engineered for engines that depend on exact valve train timing. The modified curvilinear tooth design helps maintain smooth engagement with the sprockets, while the fiberglass reinforcement and HSN construction support consistent belt performance under heat and contamination exposure. This makes it a practical choice for timing belt replacement on 1995 Suzuki Samurai, 1994 Geo Metro, 1994 Suzuki Samurai, and 1994 Suzuki Swift applications.

This part cross-references Standard Ignition TX243 for the same application.

Common Problems This Part Can Address

• Worn or stretched timing belt causing incorrect cam timing
• Noise from a deteriorated belt profile or tooth wear
• Engine running issues related to timing belt age or contamination
• Loss of synchronization between crankshaft and camshaft
• Service replacement for a belt showing cracking, glazing, or wear

Installation Notes and Tips

Verify engine code, belt length, tooth count, and timing mark requirements before installation. This belt does not include timing marks, so proper alignment should be confirmed using the vehicle service procedure. Replace related timing components and inspect pulleys, tensioners, and seals during service to help prevent premature belt wear.

Quality Assurance

Gates is a global OE timing belt manufacturer with extensive aftermarket coverage for import and domestic vehicles. The PowerGrip Premium OE Timing Belt line is built to meet or exceed OE standards for fit, function, and performance.
