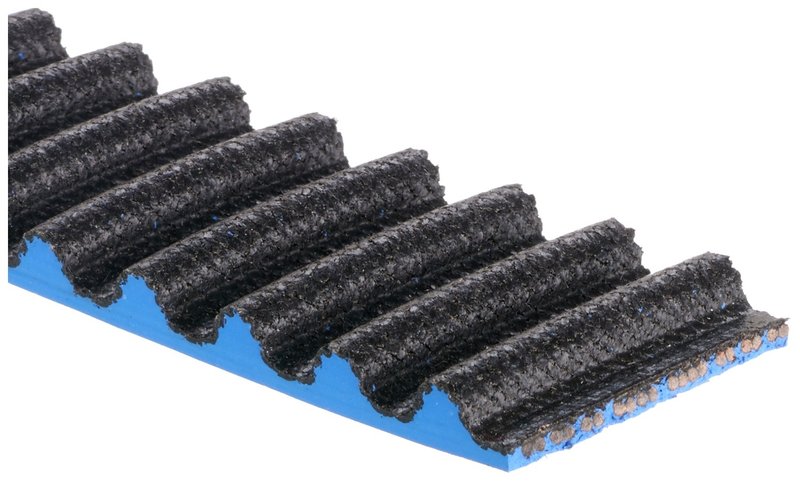

Gates T256RB Engine Timing Belt
| Brand | Gates T256RB |
|---|---|
| Profile Type | Modified curvilinear (iii) |
| Timing Marks | No |
| Top Width | 1.14 |
| Top Width | 29 |
| Color | Blue |
| Pitch | .375 |
| Pitch | 10 |
| Cord Material | Fiberglass |
| Type | High performance automotive timing belt |
| Grade Type | High performance |
| Belt Quantity | 1 |
| Belt Material | Hsn |
| Cog Quantity | 154 |
| 9830 | 1467 |
| 9830 | 57.75 |
| Belt Material | Hsn |
| Cord Material | Fiberglass |
| Number of Belts | 1 |
| Number of Teeth | 154 |
| Pitch (in) | .375 |
| Pitch (mm) | 10 |
| Pitch Length (in) | 57.75 |
| Pitch Length (mm) | 1467 |
| Timing Marks | No |
| Type | High performance automotive timing belt |
| Product line | High Performance Automotive Timing Belt |
| Fits | Mitsubishi · 1 vehicle |
High-performance belt. Built for demanding engines with HNBR composite construction.
Heat resistant. Engineered to withstand the rigors of higher horsepower applications.
Fiberglass cord. Adds strength for reliable timing belt performance.
Cross-references Gates T256, Gates T256RB and 40256 for the same application. See all 12.
Gates T256RB High Performance Timing Belt
The Gates T256RB is a high performance automotive timing belt built for engines that see elevated heat and load. It uses HSN elastomeric composite construction with fiberglass cord reinforcement to support durability in demanding engine applications, including the 1994 Mitsubishi Galant interference engine fitment listed below.
Key Features
- High performance automotive timing belt for engine valve train service
- HSN belt material for heat resistance and long-term flexibility
- Fiberglass cord reinforcement for strength and dimensional stability
- Modified Curvilinear (III) profile for precise tooth engagement
- 154 teeth with a 10 mm pitch and 57.75 in pitch length
- Blue belt construction with no timing marks
Product Details
Gates RPM Timing Belts are part of the High Performance Automotive Timing Belt line, developed for engines that operate under higher horsepower and higher temperature conditions. The T256RB part number is specified with a 1.14 in top width, 10 mm pitch, and 154 teeth, and it is listed for the 1994 Mitsubishi Galant in an interference engine application. If you are searching for a Gates T256RB timing belt for a 1994 Mitsubishi Galant, this part matches the documented fitment and performance-focused construction.
This part cross-references Monroe Shocks & Struts (e.g., 40256, 250256) for the same application.
Common Problems This Part Helps Address
- Worn or stretched timing belt material
- Noise or irregular operation from an aging belt
- Loss of timing accuracy from belt wear
- Heat-related belt deterioration in performance engines
- Service replacement needs on a 1994 Mitsubishi Galant interference engine
Installation Notes and Tips
Verify engine code, belt routing, and timing alignment before installation. Because this application is listed as an interference engine, correct cam and crank synchronization is critical during service. Replace related wear components and inspect pulleys, tensioners, and seals before final assembly. Confirm the Gates T256RB part number and vehicle fitment before installation on a 1994 Mitsubishi Galant.
Quality Assurance
Gates manufactures this timing belt with HSN composite materials and fiberglass reinforcement to support heat resistance and strength in performance-oriented engine service. The Gates T256RB is built for the demands of high output applications and is backed by Gates product engineering standards.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1994 | Mitsubishi | Galant | 2.4L | L4 | GAS | N/A | Blue; Interference engine application; High Performance Automotive Timing Belt |
