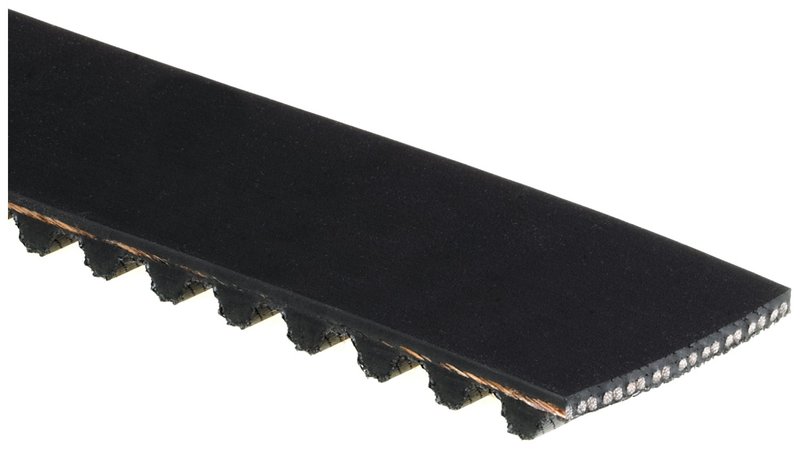

Gates T317RB Engine Timing Belt

Overview of Gates High Performance Automotive Timing Belt T317RB

The Gates High Performance Automotive Timing Belt T317RB is engineered for reliable valve train operation in select Audi and Volkswagen models. Designed with durable materials and precise specifications, this timing belt supports optimal engine timing and performance.

• Compatible with Audi A4, A4 Quattro, and Volkswagen Passat
• Curvilinear (ii) profile type for smooth engagement
• 153 teeth with a pitch of 8 mm (.315 in)
• Top width of 25 mm (.984 in) and pitch length of 1224 mm (48.189 in)
• Constructed with fiberglass cord and HSN belt material for strength and durability
• High performance grade designed for demanding engine conditions
• Single belt quantity included

Product Line Details: High Performance Automotive Timing Belt

The Gates High Performance Automotive Timing Belt line focuses on delivering enhanced durability and precision for engine timing applications. This product line utilizes advanced materials such as fiberglass cords and HSN belt compounds to withstand high stress and temperature conditions. The T317RB model exemplifies these qualities, making it suitable for performance-oriented valve train systems in Audi and Volkswagen vehicles.

Technical Description and Specifications

The T317RB timing belt features a curvilinear (ii) tooth profile, which ensures smooth meshing with sprockets and reduces wear. With 153 teeth spaced at an 8 mm pitch, the belt maintains accurate timing synchronization between the crankshaft and camshaft. The belt’s top width measures 25 mm (.984 inches), providing a stable contact surface. Its construction includes fiberglass cords that offer tensile strength and resistance to elongation, while the HSN (Hydrogenated Nitrile) belt material provides heat and chemical resistance essential for engine environments. The belt is black in color and does not include timing marks, requiring careful alignment during installation.

Applications and Problem Solving

• Replaces worn or damaged timing belts in Audi A4, A4 Quattro, and Volkswagen Passat engines
• Prevents timing slippage that can cause engine misfires or poor performance
• Addresses belt degradation due to heat, oil exposure, or mechanical stress
• Supports maintenance of precise valve timing for optimal engine efficiency
• Reduces risk of engine damage caused by belt failure

Installation Notes and Tips

• Ensure compatibility with specific Audi and Volkswagen models before installation
• Align belt carefully as this model does not have timing marks
• Inspect pulleys and tensioners for wear and replace if necessary
• Follow manufacturer torque specifications for tensioner adjustment
• Replace the timing belt as part of scheduled maintenance intervals to avoid unexpected failure

Quality Assurance and Warranty

Gates timing belts are manufactured to meet strict quality standards for durability and performance. The T317RB is produced using high-grade materials and undergoes rigorous testing to ensure reliability in demanding automotive applications. Warranty coverage details should be confirmed with the product documentation or supplier.
