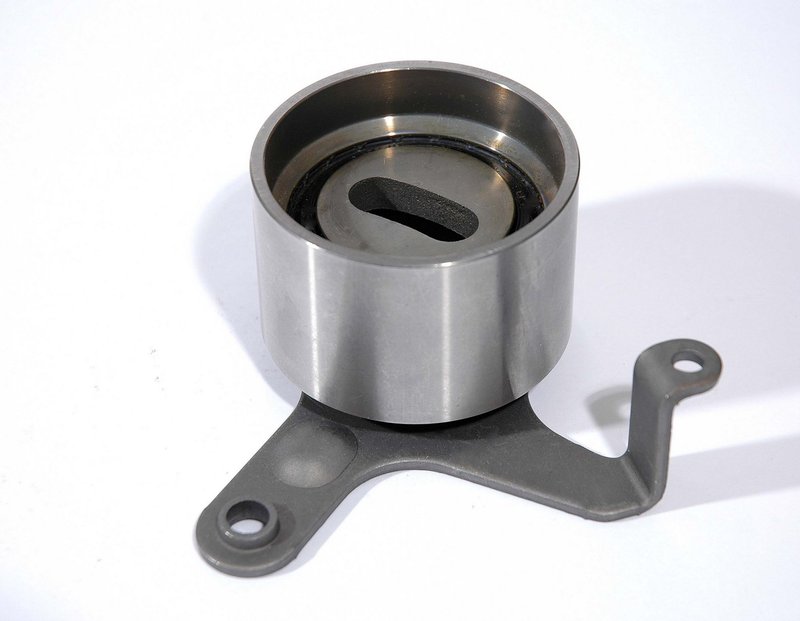

Gates T41073 Engine Timing Belt Tensioner

Gates T41073 Timing Belt Tensioner

The Gates T41073 timing belt tensioner is built for OE-quality fit and performance in engine valve train service. It is engineered to maintain proper belt tension and help reduce timing belt wear during operation and installation.

Key Features

• Steel construction for durable engine bay service
• Spring tensioner design for consistent belt loading
• Smooth backside contact surface
• Slotted inside diameter for proper mounting adjustment
• Single pulley design with 62 mm outside diameter and 40 mm width
• Gates PowerGrip timing tensioner line for OE-exact fit and performance

Product Details

This Gates timing belt tensioner, part number T41073, is designed for Toyota timing belt service where stable belt tension is critical. The spring-loaded design helps maintain optimal tension without requiring a separate tensioning operation during installation. It is a direct-fit engine timing belt tensioner for select Toyota Pickup and Toyota 4Runner applications, including 1988-1992 Toyota 4Runner, 1988-1992 Toyota Pickup, and 1994-1995 Toyota Pickup with spring tensioner setup.

This part cross-references Cloyes 9-5209 for the same application.

Common Problems It Helps Address

• Timing belt slack caused by a worn tensioner
• Uneven belt tracking from a degraded pulley surface
• Noise from a failing spring-loaded tensioner assembly
• Premature timing belt wear from incorrect belt tension
• Service issues during Toyota Pickup or Toyota 4Runner timing belt replacement

Installation Notes and Tips

• Verify engine code and timing belt system configuration before installation.
• Inspect the timing belt, idlers, and related seals while the front engine covers are removed.
• Follow factory timing marks and torque specifications during reassembly.
• Confirm the tensioner pulley moves smoothly before final belt setup.
• Use this part on confirmed Toyota Pickup and Toyota 4Runner timing belt applications listed in the fitment data.

Quality Assurance

Gates PowerGrip timing tensioners are engineered and tested to OE-quality or OE-exact standards for fit and performance. The design focuses on maintaining belt life and stable tension in service.
