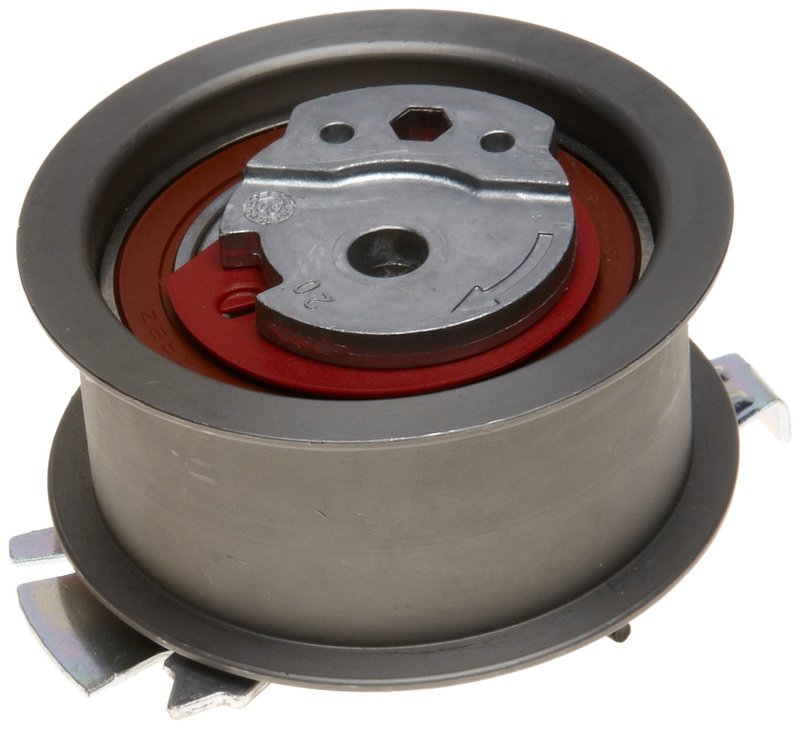

Gates T43181 Engine Timing Belt Tensioner

Gates Timing Belt Tensioner T43181

The Gates T43181 timing belt tensioner is built for OE-exact fit and performance in engine timing service. It is engineered to maintain proper belt tension, help extend belt life, and eliminate the need for a separate tensioning operation during installation.

For Volkswagen Beetle, Golf, Jetta, and Audi A3 timing belt service, this Gates timing belt tensioner delivers the fit and function expected in interference-engine applications. The PowerGrip timing tensioner line is designed and tested for precise operation in critical valve train systems.

Key Features

• OE Exact comparison rating for direct replacement fit
• Spring-style timing belt tensioner design
• Steel construction for durability in engine service
• Smooth/backside contact surface
• Single pulley design with flanged pulley: no
• Inside diameter: 43 mm
• Outside diameter: 67.8-68 mm
• Width: 35-35.3 mm

Product Details

Gates PowerGrip timing tensioners are built to match OE-quality or OE-exact requirements, with testing focused on maintaining optimal belt tension throughout operation. Part number T43181 is a timing belt tensioner for engine valve train components and is listed with direct interchange references for the same application. This part cross-references 03L109243E and 48020 for the same application. It is a direct-fit choice for 2013-2014 Volkswagen Beetle, 2010-2014 Volkswagen Golf, 2009-2014 Volkswagen Jetta, and 2010-2013 Audi A3 models equipped with compatible interference engines.

Common Issues It Can Address

• Timing belt slack caused by a worn tensioner
• Noise from a failing spring-loaded tensioner assembly
• Uneven belt tracking across the smooth backside contact surface
• Loss of proper belt tension during engine operation
• Timing service concerns on interference-engine applications

Installation Notes

Verify engine code and timing system configuration before installation, especially on Volkswagen and Audi interference-engine applications. Replace the tensioner during timing belt service and follow the manufacturer’s timing alignment procedure exactly. Confirm pulley alignment, belt routing, and tensioner movement before starting the engine.

Quality Assurance

Gates designs and tests PowerGrip timing tensioners to OE-quality or OE-exact standards, with a focus on maintaining belt life and stable tension in critical engine timing systems.
