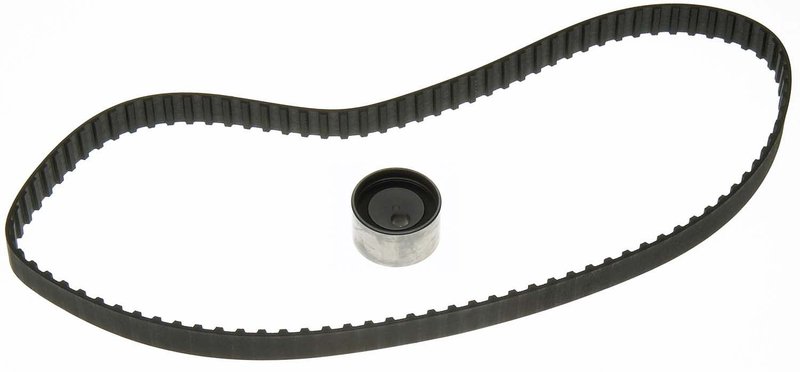

Gates TCK166 Engine Timing Belt Component Kit

Gates TCK166 Timing Belt Kit

The Gates PowerGrip Premium OE Timing Belt Component Kit TCK166 is built for select small-displacement engines that require a precise timing belt and spring tensioner setup. It is a direct-fit engine timing belt component kit for applications such as Suzuki Swift, Geo Metro, Chevrolet Sprint, and Pontiac Firefly.

Gates PowerGrip Premium OE Timing Belt Component Kit products are engineered around OE-style service requirements, helping technicians source the belt and tensioner together for a complete timing service. This kit is a practical choice for 1992-1994 Suzuki Swift timing belt replacement and other listed compact-car applications.

Key Features

• Brand: Gates PowerGrip Premium OE Timing Belt Component Kit
• Part number: TCK166
• Contents: timing belt and spring tensioner
• Timing belt material: HCR
• Timing belt tooth style: Trapezodial (I)
• Timing belt width: 19 mm (.75 in.)
• Timing belt tooth count: 97
• Black belt top color
• Installation instructions included
• No timing marks on belt

Detailed Description

The Gates TCK166 timing belt component kit is designed for engine timing service where the belt and tensioner are replaced together. The kit includes a spring-type tensioner and a 97-tooth, 19 mm HCR timing belt with a trapezodial tooth profile. Gates supplies timing components for a wide range of vehicle platforms, and this kit follows OE-equivalent service expectations for fit, quality, and performance.

Fits 1992-1994 Suzuki Swift, N/A. Fits 1993 Geo Metro, N/A, W/4-Bolt Sprocket Mtg. Fits 1989-1992 Chevrolet Sprint, N/A. Fits 1989-1992 Geo Metro, N/A. Fits 1989-1991 Pontiac Firefly, N/A. This part cross-references Continental TB166K1 for the same application.

What It Helps Address

• Worn or stretched timing belt
• Noise from a fatigued spring tensioner
• Incorrect camshaft timing from belt wear
• Service delays when belt and tensioner are sourced separately
• Timing system refresh on listed Suzuki, Geo, Chevrolet, and Pontiac models

Installation Notes

Use the included instructions during installation and verify engine timing before startup. Because this belt has no timing marks, align components according to the service procedure for the specific engine. Confirm the 4-bolt sprocket mounting note for the 1993 Geo Metro application before ordering or installation.

Quality Assurance

Gates is an OEM supplier for vehicle manufacturers worldwide, and its timing component kits are built to OE-equivalent or better standards for service life, quality, and performance. The PowerGrip Premium OE Timing Belt Component Kit line is intended to streamline complete timing system replacement with matched components.
