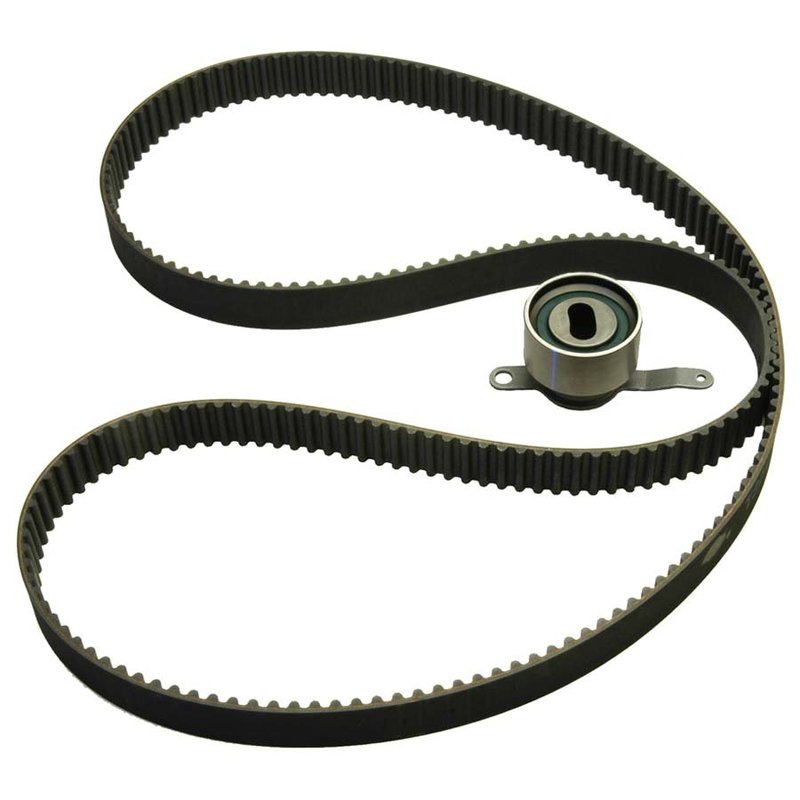

Gates TCK224 Engine Timing Belt Component Kit

Overview of Gates PowerGrip Premium OE Timing Belt Component Kit

The Gates PowerGrip Premium OE Timing Belt Component Kit (Part Number TCK224) is designed specifically for Acura and Honda vehicles, including the Civic, Civic del Sol, and EL models. This kit provides essential components to maintain precise engine timing and reliable valve train performance.

• Includes one HSN material timing belt with 104 modified curvilinear (iii) teeth
• Equipped with a spring-type tensioner and one spring for optimal belt tension
• Belt width measures 24 mm (0.945 inches) with a black top color
• OE exact component comparison rating ensures compatibility and performance
• Installation instructions included (Instruction Sheet Number 0098-0139)

About the PowerGrip Premium OE Timing Belt Component Kit Line

The PowerGrip Premium OE Timing Belt Component Kit line by Gates is engineered to meet original equipment specifications, providing a direct replacement for factory-installed timing belt components. This kit combines a high-quality HSN timing belt with a spring tensioner and spring, designed to deliver consistent tension and durability. The components are tailored to fit specific Acura and Honda models, ensuring proper valve train synchronization and engine reliability.

Detailed Product Description

This timing belt component kit includes three main parts: a single timing belt, a spring tensioner, and one spring. The timing belt features 104 teeth with a modified curvilinear (iii) tooth profile, crafted from HSN material for enhanced wear resistance and flexibility. The belt width is 24 mm (0.945 inches), and the belt top is black, matching OEM specifications. The spring-type tensioner maintains proper belt tension throughout operation, reducing the risk of slippage or premature wear. This kit does not include timing marks on the belt, so alignment should be performed according to vehicle service manual guidelines.

Compatible Vehicles and Common Applications

• Replacement for timing belt and tensioner maintenance on Acura Civic, Civic del Sol, and EL models
• Addresses issues such as worn or stretched timing belts causing engine misfires or poor performance
• Resolves tensioner failure symptoms like belt noise or slack
• Prevents potential engine damage from timing belt failure
• Suitable for scheduled timing belt service intervals to maintain engine timing accuracy

Installation Notes and Tips

Installation instructions are included with the kit (Instruction Sheet Number 0098-0139) to assist with proper assembly. Since the timing belt does not have timing marks, careful alignment using factory service procedures is necessary. It is recommended to replace the tensioner spring simultaneously to ensure consistent tension. Verify belt tension after installation and before engine startup to avoid premature wear or engine timing issues.

Quality Assurance and Warranty

The Gates PowerGrip Premium OE Timing Belt Component Kit is manufactured to meet OE standards, ensuring reliable fit and function. The kit components undergo rigorous quality control to maintain durability and performance. While specific warranty details are not provided here, Gates typically offers coverage against defects in materials and workmanship. Refer to official Gates documentation for warranty terms.
