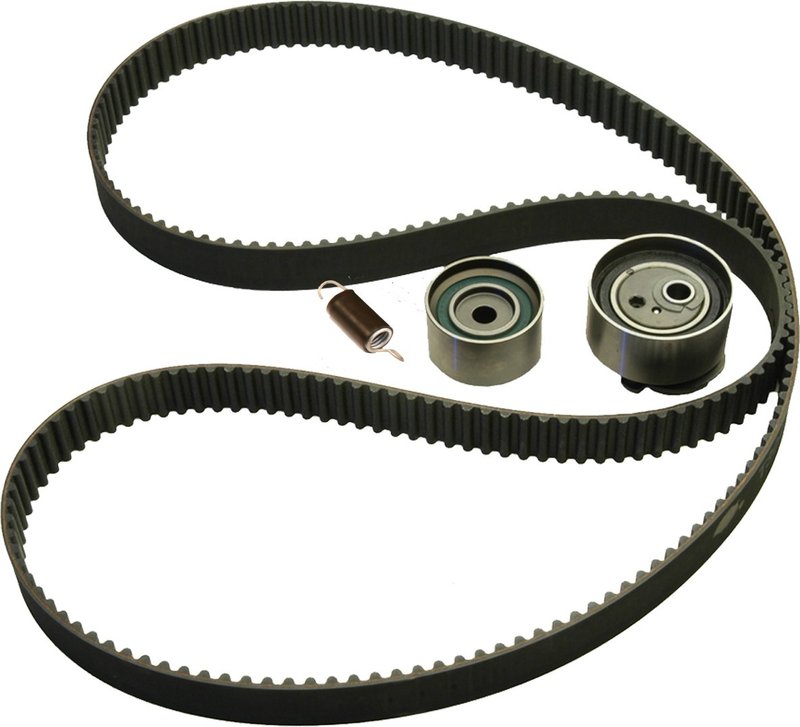

Gates TCK228 Engine Timing Belt Component Kit

Overview of Gates PowerGrip Premium OE Timing Belt Component Kit

The Gates PowerGrip Premium OE Timing Belt Component Kit (Part Number TCK228) is designed for precise engine timing and reliable performance. This kit is compatible with select Ford and Mazda models, including the Mazda 626, MX-6, Probe, Protege, and Protege5.

• Includes timing belt, tensioner, idler, and spring for a complete timing system replacement
• Timing belt made from durable HSN material with a modified curvilinear (iii) tooth profile
• Spring-type tensioner ensures consistent belt tension
• Black timing belt with 135 teeth and 25 mm width
• Installation instructions included (Instruction Sheet Number 0098-1590)

About the PowerGrip Premium OE Timing Belt Component Kit

The PowerGrip Premium OE Timing Belt Component Kit by Gates is engineered to meet original equipment specifications. This product line focuses on delivering components that maintain engine timing accuracy and durability. The kit includes all necessary parts—belt, tensioner, idler, and spring—allowing for a comprehensive timing belt system service. The use of HSN material and a modified curvilinear tooth design helps reduce wear and noise, supporting long-term engine reliability.

Detailed Product Description

This timing belt component kit features a single black timing belt constructed from HSN, a high-strength synthetic material known for its resistance to heat and wear. The belt has 135 teeth with a 25 mm width, designed to mesh precisely with the engine’s camshaft and crankshaft gears. The spring-type tensioner included in the kit maintains proper belt tension throughout operation, reducing the risk of slippage or premature failure. Additionally, the kit contains one idler and one spring to support the belt’s routing and tensioning system. While the timing belt does not include timing marks, the kit comes with detailed installation instructions to assist with proper alignment and fitment.

Compatible Vehicles and Common Applications

• Replacement for timing belt system maintenance on Mazda 626 and MX-6 models
• Suitable for Ford Probe and Mazda Protege, Protege5 engines requiring timing belt service
• Addresses issues such as worn or cracked timing belts
• Resolves tensioner failure or loss of belt tension
• Prevents engine timing misalignment and potential engine damage

Installation Notes and Tips

Installation instructions are included with the kit (Instruction Sheet Number 0098-1590) to guide proper assembly. It is important to verify engine timing alignment during installation since the belt does not have timing marks. Use appropriate tools to adjust the spring-type tensioner and ensure correct belt tension. Inspect all components for wear before installation and replace any damaged parts to maintain system integrity.

Quality Assurance and Warranty

Gates manufactures the PowerGrip Premium OE Timing Belt Component Kit to meet stringent quality standards consistent with original equipment. The kit’s components are engineered for durability and reliable performance under normal operating conditions. Please refer to Gates’ warranty policy for specific coverage details related to this part number TCK228.
