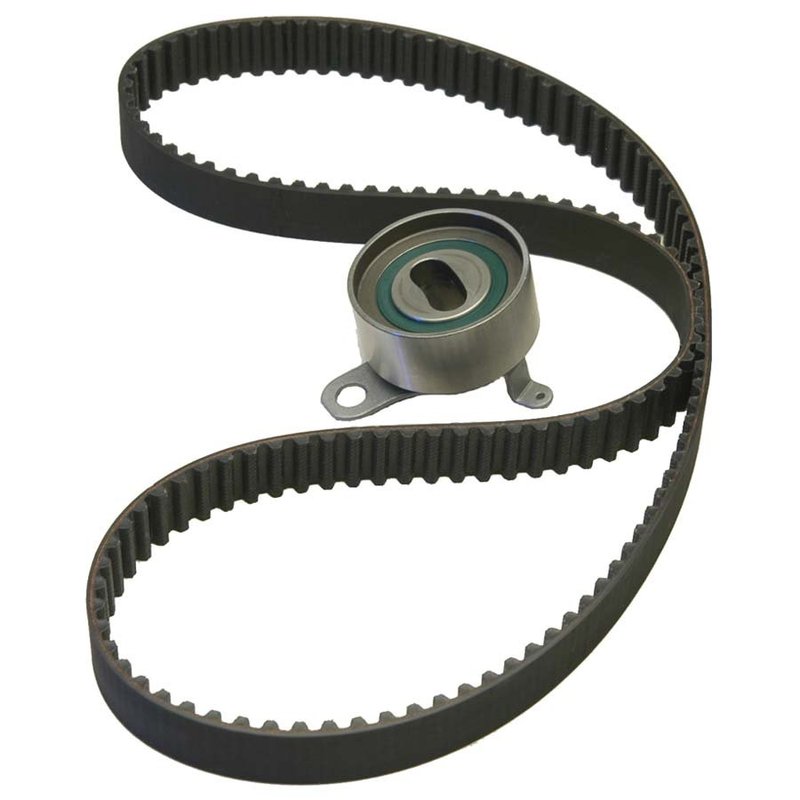

Gates TCK236 Engine Timing Belt Component Kit

Gates TCK236 Timing Belt Kit Overview

The Gates PowerGrip Premium OE Timing Belt Component Kit TCK236 is built for engine timing service on select Toyota Corolla and Geo Prizm applications. It includes the timing belt, spring tensioner, and spring, giving technicians the core components needed for a complete timing system replacement.

Gates designs its PowerGrip Premium OE Timing Belt Component Kit line for broad vehicle coverage and OE-equivalent service life, quality, and performance. This kit is a practical choice for 1993-1997 Toyota Corolla and 1993-1997 Geo Prizm timing belt maintenance where exact-fit replacement parts are required.

Key Features

• Gates PowerGrip Premium OE Timing Belt Component Kit
• Part number TCK236
• Includes timing belt, spring tensioner, and spring
• OE Exact component comparison rating
• Curvilinear belt tooth profile
• HSN belt material for timing system service
• Black timing belt with 117 teeth and 21 mm width
• Installation instructions included
• Timing marks not included on the belt

Detailed Product Description

The Gates TCK236 is an engine timing belt component kit for vehicles that require a spring-loaded tensioner design. It is engineered for direct replacement service on 1993-1997 Toyota Corolla and 1993-1997 Geo Prizm models, making it a focused solution for timing belt maintenance on these applications. The kit’s OE Exact rating supports factory-style fit and function, while the included instructions help streamline the repair process.

As part of the Gates PowerGrip Premium OE Timing Belt Component Kit line, this kit reflects Gates’ role as an OEM supplier and timing component manufacturer. The design centers on complete system replacement, helping reduce parts sourcing time when servicing the timing drive on Toyota Corolla and Geo Prizm engines. TCK236 is also cross-referenced with Cloyes BK236 for the same application.

Common Problems This Kit Can Address

• Worn or stretched timing belt material
• Noise or irregular operation from a fatigued spring tensioner
• Timing service intervals requiring belt and tensioner replacement
• Loss of proper belt tracking from aging timing components
• Incomplete timing service when only one component has been replaced

Installation Notes and Tips

Verify engine code and vehicle application before installation. This kit uses a spring tensioner design and does not include timing marks on the belt, so careful alignment during service is important. Follow the included instruction sheet number 0098-1628 and confirm belt routing, tensioner setup, and timing reference points before starting the engine.

For fitment-focused searches, this part is commonly selected for a 1993-1997 Toyota Corolla timing belt kit or a 1993-1997 Geo Prizm timing belt component replacement. The Gates TCK236 is intended for timing system service where OE-style component matching is required.

Quality Assurance

Gates manufactures timing belts and timing component kits for global vehicle applications and supplies OE-equivalent components for service replacement. The PowerGrip Premium OE Timing Belt Component Kit line is built to support exact-fit timing system repairs on covered vehicles, including Toyota Corolla and Geo Prizm applications.
