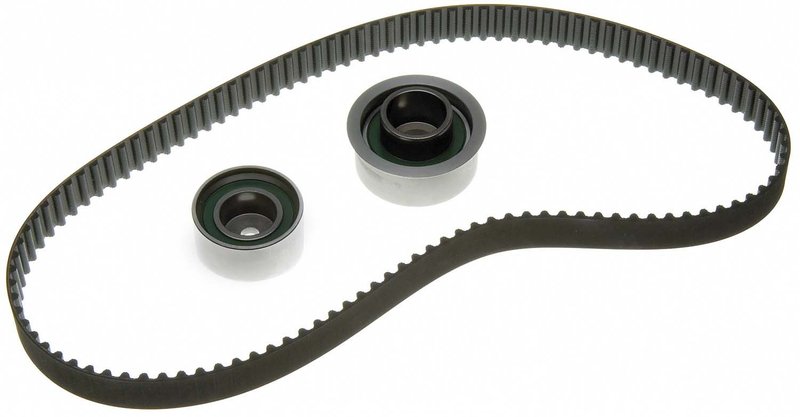

Gates TCK284 Engine Timing Belt Component Kit

Overview of Gates PowerGrip Premium OE Timing Belt Component Kit

The Gates PowerGrip Premium OE Timing Belt Component Kit (Part Number TCK284) is designed for reliable engine timing system maintenance on select Hyundai and Kia models. This kit includes essential components engineered to meet original equipment specifications, ensuring proper valve train operation.

• Includes timing belt, tensioner, and idler pulley
• Timing belt with 113 teeth and 25 mm width
• Black HSN (High Strength Nylon) belt material with modified curvilinear tooth profile
• Eccentric and spring-type tensioners for precise belt tension
• Installation instructions included (Instruction Sheet Number 0098-1018)

Product Line Details: PowerGrip Premium OE Timing Belt Component Kit

The PowerGrip Premium OE Timing Belt Component Kit line by Gates focuses on delivering components that match or exceed original equipment standards. This kit combines a high-quality HSN timing belt with a modified curvilinear tooth style for improved engagement and durability. The inclusion of both eccentric and spring tensioners ensures accurate belt tensioning, which is critical for maintaining engine timing and performance in Hyundai Elantra, Kia Spectra, and other compatible models.

Technical Description and Features

This timing belt component kit features a single black timing belt constructed from HSN material, known for its strength and resistance to wear. The belt has 113 teeth with a modified curvilinear (iii) tooth profile, designed to optimize meshing with sprockets and reduce noise. The belt width measures 25 mm (1 inch), suitable for the specified engine configurations. The kit includes one tensioner and one idler pulley, both essential for maintaining proper belt tension and alignment. The tensioner type is eccentric with a spring mechanism, providing consistent tension throughout the belt's service life. Installation instructions are provided to assist with proper fitment and setup.

Compatible Vehicles and Applications

• Hyundai Elantra
• Kia Spectra and Spectra5
• Kia Sportage
• Hyundai Tiburon
• Kia Tucson

This kit is specifically designed for these models, ensuring compatibility with their valve train timing systems. It addresses common timing belt replacement needs and related component wear.

Common Issues Addressed by This Kit

• Worn or cracked timing belt teeth causing engine timing errors
• Loose or failing tensioner leading to belt slippage
• Idler pulley wear resulting in belt misalignment
• Noise or vibration from degraded timing components
• Preventative maintenance to avoid engine damage from timing failure

Installation Notes and Tips

Installation instructions are included with the kit (Instruction Sheet Number 0098-1018) to guide proper assembly. It is important to verify belt tension using the eccentric tensioner and ensure correct alignment of all components. Since this kit does not include timing marks on the belt, careful attention to engine timing marks during installation is necessary. Replacement of all included components simultaneously is recommended to maintain system integrity.

Quality Assurance and Warranty

Gates manufactures this PowerGrip Premium OE Timing Belt Component Kit to meet stringent quality standards consistent with original equipment. The use of durable HSN belt material and precision-engineered tensioners supports long service life. Installation instructions help ensure correct fitment and operation. Warranty details should be confirmed with the product documentation or supplier.
