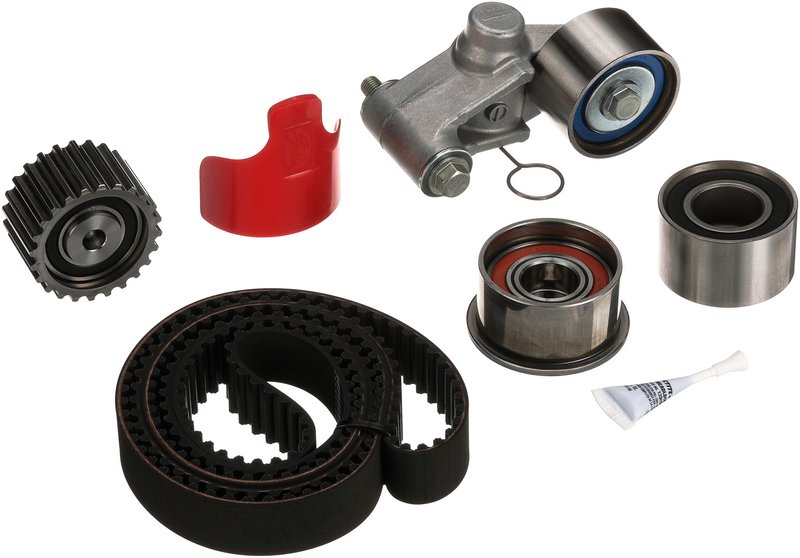

Gates TCK304N Engine Timing Belt Component Kit

Overview of Gates PowerGrip Premium OE Timing Belt Component Kit

The Gates PowerGrip Premium OE Timing Belt Component Kit (Part Number TCK304N) is designed specifically for Subaru Forester, Impreza, Legacy, and Outback models. This comprehensive kit includes all necessary components to ensure precise timing belt replacement with OE exact fit and function.

• Includes one HSN material timing belt with 223 teeth and a width of 27 mm (1.063 inches)
• Hydraulic tensioner for consistent belt tension and reduced maintenance
• Three idlers and one idler sprocket included for complete valve train support
• Modified curvilinear (iii) belt tooth style for improved engagement and durability
• Installation tool and detailed instruction sheet (0098-1654) included for accurate and efficient installation
• Timing marks present on components to aid in precise alignment

Detailed Product Description

The Gates PowerGrip Premium OE Timing Belt Component Kit TCK304N is engineered to meet the exact specifications of Subaru engines found in Forester, Impreza, Legacy, and Outback vehicles. The kit features a high-strength HSN timing belt with a black top surface and 223 cog teeth designed in a modified curvilinear (iii) tooth profile, which enhances belt engagement and reduces wear. The hydraulic tensioner included in the kit maintains optimal belt tension automatically, improving reliability and reducing the need for manual adjustments.

Along with the belt and tensioner, the kit contains three idlers and an idler sprocket to support the valve train components, ensuring smooth operation and proper timing. Gates includes an installation tool and a detailed instruction sheet to facilitate correct installation, minimizing the risk of errors during replacement.

About the PowerGrip Premium OE Timing Belt Component Kit Line

The PowerGrip Premium OE Timing Belt Component Kit line by Gates is designed to provide original equipment (OE) exact replacement parts for timing belt systems. This product line focuses on delivering components that match the fit, form, and function of factory-installed parts, ensuring compatibility and performance for specific vehicle applications. The TCK304N kit exemplifies this approach by including all necessary components for a complete timing belt service on select Subaru models.

Common Applications and Issues Addressed

• Replacement of worn or damaged timing belts in Subaru Forester, Impreza, Legacy, and Outback
• Resolving timing belt tension problems with the included hydraulic tensioner
• Addressing noise or wear caused by failing idlers or sprockets
• Preventing engine timing errors due to stretched or degraded belts
• Ensuring proper valve train operation and engine performance

Installation Notes and Tips

• Use the included installation tool and follow the instruction sheet (0098-1654) carefully for accurate timing alignment
• Verify timing marks on the belt and engine components before final assembly
• Ensure hydraulic tensioner is properly seated and functioning to maintain correct belt tension
• Inspect all components for wear or damage before installation
• Recommended for professional or experienced DIY installation due to critical engine timing requirements

Quality Assurance and Warranty

The Gates PowerGrip Premium OE Timing Belt Component Kit TCK304N is manufactured to meet OE standards for fit and durability. Gates provides quality assurance through rigorous testing and material selection, ensuring reliable performance in Subaru Forester, Impreza, Legacy, and Outback vehicles. Installation instructions and tools are included to support proper service procedures. Please refer to Gates' official warranty policy for specific coverage details.
