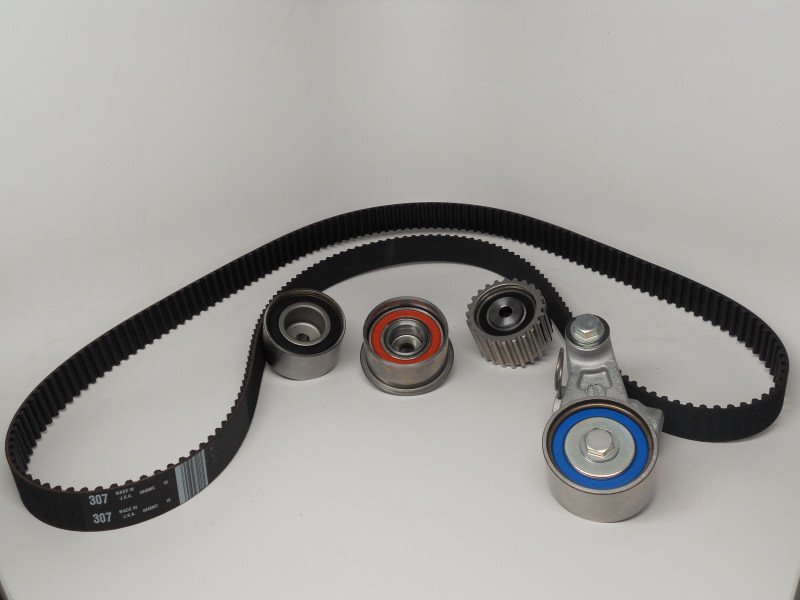

Gates TCK307 Engine Timing Belt Component Kit

Overview of Gates PowerGrip Premium OE Timing Belt Kit

The Gates PowerGrip Premium OE Timing Belt Component Kit (Part Number TCK307) is designed specifically for Subaru vehicles including the Baja, Legacy, and Outback models. This kit provides a comprehensive solution for timing belt replacement with components engineered to meet or exceed original equipment standards.

• Includes one HSN material timing belt with 223 curvilinear teeth
• Hydraulic tensioner for precise belt tension control
• Three idler pulleys and one idler sprocket included
• Installation tool and detailed instructions provided
• Timing marks clearly indicated for accurate alignment

Detailed Product Features and Specifications

The PowerGrip Premium OE Timing Belt Component Kit features a black timing belt made from durable HSN material, designed for longevity and reliable performance. The belt width measures 27 mm (1.063 inches) and incorporates 223 curvilinear teeth to ensure smooth engagement with the camshaft and crankshaft sprockets. The kit includes an OE improved hydraulic tensioner, which maintains optimal belt tension without the need for springs, enhancing durability and reducing maintenance requirements. Three idler pulleys and an idler sprocket are also part of the kit, providing complete valve train component replacement. Installation is facilitated by the included tool and instruction sheet (number 0098-1683), ensuring proper fitment and alignment during service.

PowerGrip Premium OE Timing Belt Component Kit Line

The Gates PowerGrip Premium OE Timing Belt Component Kit line is engineered to provide a direct replacement for original equipment timing belt systems. This product line focuses on OE improved components, such as the hydraulic tensioner included in this kit, which offers enhanced tension control compared to traditional spring tensioners. The kit is designed to simplify timing belt service by including all necessary components and tools, reducing installation time and potential errors.

Applications and Common Issues Addressed

• Replacement of worn or damaged timing belts on Subaru Baja, Legacy, and Outback models
• Elimination of belt slippage or misalignment due to faulty tensioners
• Resolution of noise or vibration caused by worn idler pulleys
• Prevention of engine timing failure from degraded belt materials
• Upgrade to OE improved hydraulic tensioner for consistent belt tension

Installation Notes and Tips

Installation of the Gates PowerGrip Premium OE Timing Belt Component Kit (TCK307) should be performed following the included instruction sheet (0098-1683) and using the provided installation tool. Ensure timing marks are properly aligned to maintain engine timing accuracy. The hydraulic tensioner requires careful handling to avoid damage during installation. It is recommended to replace all components in the kit simultaneously to ensure optimal performance and longevity.

Quality Assurance and Warranty

Gates manufactures the PowerGrip Premium OE Timing Belt Component Kit to meet stringent quality standards, providing reliable performance for Subaru engines. The kit components are tested for durability and fitment accuracy. While specific warranty details are not provided here, Gates typically offers coverage against defects in materials and workmanship. Refer to official Gates documentation for complete warranty information.
