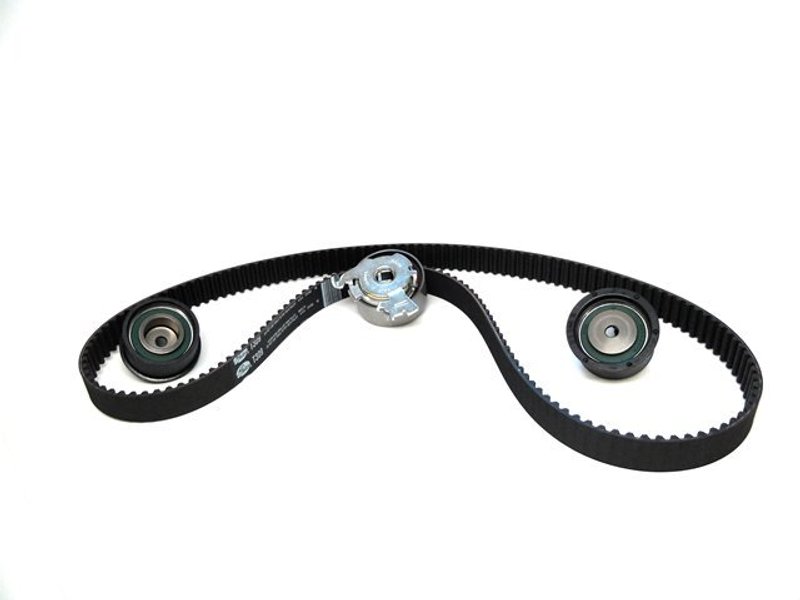

Gates TCK309 Engine Timing Belt Component Kit

OE Timing Belt Kit for Suzuki Forenza

Gates PowerGrip Premium OE Timing Belt Component Kit TCK309 is built for timing belt service on 2004-2008 Suzuki Forenza models with interference engines. It combines the timing belt, spring tensioner, and two idlers in one service kit to support a complete timing system replacement.

Gates designs timing component kits for broad vehicle coverage and OE-equivalent service life, quality, and performance. For Suzuki Forenza timing belt replacement, TCK309 helps technicians source the core components needed for a clean, organized repair.

Key Features

• Fits 2004-2008 Suzuki Forenza, N/A
• PowerGrip Premium OE Timing Belt Component Kit
• Timing belt material: HSN
• Curvilinear (II) tooth profile
• 169 teeth with 24 mm / .945 in. belt width
• Spring-style tensioner
• Includes installation instructions
• No timing marks on belt
• Contents: belt, tensioner, and two idlers

Detailed Description

The Gates TCK309 timing belt kit is a direct service solution for the Suzuki Forenza timing drive system. It is designed around a 169-tooth HSN belt with a curvilinear tooth design, a spring tensioner, and two idlers to support proper belt routing and tension control during replacement. This part number, TCK309, is intended for 2004-2008 Suzuki Forenza applications listed with interference engines.

As part of Gates PowerGrip Premium OE Timing Belt Component Kit line, this kit reflects Gates’ focus on complete timing system service rather than replacing only the belt. That approach helps streamline parts sourcing for Suzuki Forenza timing belt jobs and supports a more complete repair on the engine valve train side.

This part cross-references Continental TB309K1 for the same application.

What It Helps Address

• Worn or stretched timing belt service intervals
• Noisy or rough-running timing drive components
• Loss of belt tension from aging tensioner hardware
• Idler bearing wear in the timing system
• Timing system refresh on Suzuki Forenza interference engines

Installation Notes

Follow the included instructions and the vehicle service procedure for timing alignment, tensioner setup, and component inspection. Because this kit does not include timing marks on the belt, verify camshaft and crankshaft positioning before removal and during installation. Replace related timing components only after confirming the engine application and service requirements for the specific Suzuki Forenza model year.

Quality Assurance

Gates manufactures timing belts and timing component kits for OEM and OE-equivalent service applications. TCK309 is built to Gates’ timing system standards for service life, quality, and performance in the listed Suzuki Forenza fitment.
