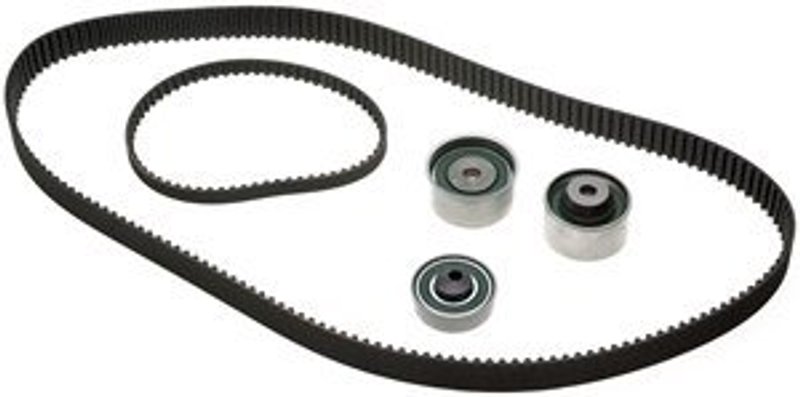

Gates TCK313 Engine Timing Belt Component Kit

Overview of Gates PowerGrip Premium OE Timing Belt Component Kit

The Gates PowerGrip Premium OE Timing Belt Component Kit (Part Number TCK313) is designed for reliable engine timing system maintenance on select Hyundai and Kia models. This kit includes essential components engineered to meet original equipment specifications for vehicles such as the Hyundai Sonata, Santa Fe, Magentis, and Kia Optima.

• Includes 2 high-strength HSN timing belts with modified curvilinear tooth design
• Equipped with 2 hydraulic eccentric tensioners and 1 idler pulley for precise belt tension
• Timing belts feature widths of 29 mm and 13 mm with 175 and 65 teeth respectively
• Installation instructions included for accurate and efficient replacement
• Compatible with Hyundai Magentis, Sonata, Santa Fe and Kia Optima models

Detailed Product Description

The Gates PowerGrip Premium OE Timing Belt Component Kit TCK313 provides a comprehensive solution for timing belt system replacement. The kit contains two black HSN material timing belts, each with a modified curvilinear (iii) tooth profile designed to ensure smooth engagement and reduced wear. The belts measure 29 mm and 13 mm in width, with 175 and 65 teeth respectively, matching the original equipment specifications for the targeted Hyundai and Kia vehicles.

Included are two hydraulic eccentric tensioners that maintain optimal belt tension under varying engine conditions, along with a single idler pulley to guide the belt path. This combination supports consistent valve timing and engine performance. The kit does not include timing marks on the belts, so careful alignment during installation is necessary. Installation instructions (sheet number 0098-1596) are provided to assist with proper setup.

PowerGrip Premium OE Timing Belt Component Kit Line

The PowerGrip Premium OE Timing Belt Component Kit line by Gates focuses on delivering OE-quality timing belt components that meet or exceed manufacturer standards. This product line emphasizes durability and precise fitment, making it suitable for professional repairs and maintenance on Hyundai and Kia engines requiring exact timing belt replacements. The TCK313 kit is part of this line, ensuring compatibility and performance aligned with original equipment.

Common Applications and Issues Addressed

• Replacement of worn or damaged timing belts on Hyundai Sonata, Santa Fe, Magentis, and Kia Optima
• Correction of timing belt tension problems caused by failing tensioners
• Prevention of engine misfires or valve timing errors due to belt slippage
• Resolution of noise or vibration issues related to idler pulley wear
• Maintenance of engine valve train synchronization for optimal performance

Installation Notes and Tips

• Ensure engine is cool and battery disconnected before beginning installation
• Follow the included instruction sheet (0098-1596) carefully for tensioner adjustment and belt routing
• Verify belt tooth engagement and tensioner positioning to avoid premature wear
• Double-check timing alignment as belts do not have timing marks
• Replace all components in the kit simultaneously to maintain system integrity

Quality Assurance and Warranty

Gates manufactures the PowerGrip Premium OE Timing Belt Component Kit to meet stringent quality standards, ensuring reliable performance and durability. The kit components are engineered to match original equipment specifications for Hyundai and Kia vehicles. Installation instructions are included to support proper fitment and function. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
