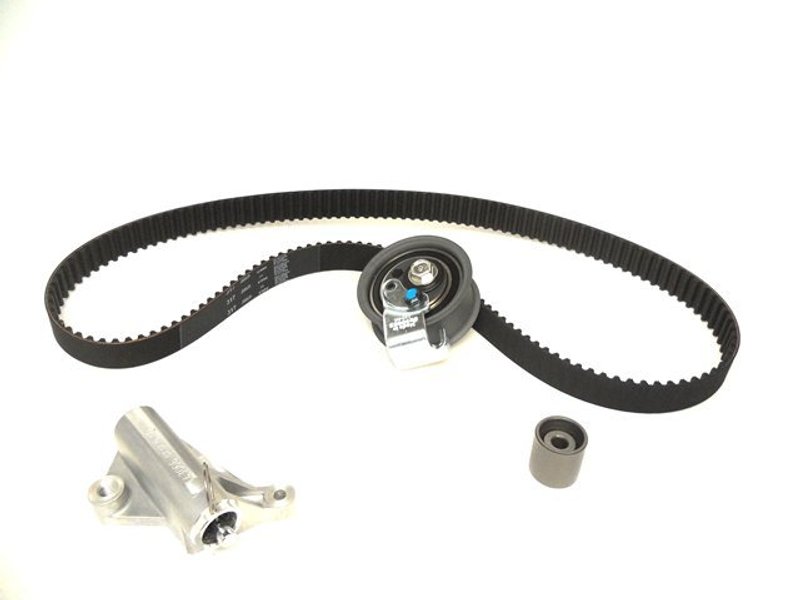

Gates TCK317 Engine Timing Belt Component Kit

Overview of Gates PowerGrip Premium OE Timing Belt Component Kit

The Gates PowerGrip Premium OE Timing Belt Component Kit (Part Number TCK317) is engineered for precise valve train timing in select Audi and Volkswagen models. Designed to meet original equipment specifications, this kit includes all necessary components for a reliable timing belt replacement on Audi A4, A4 Quattro, and Volkswagen Passat vehicles.

• Includes timing belt, hydraulic tensioner, eccentric tensioner, and idler pulley
• Timing belt made from durable HSN material with curvilinear (ii) tooth profile
• 153 teeth on the timing belt with a width of 25 mm (.984 inches)
• Hydraulic tensioner type for consistent belt tension
• Installation instructions included (Instruction Sheet Number 0098-1646)

Detailed Product Description

This engine timing belt component kit is specifically designed for the valve train systems of Audi A4, A4 Quattro, and Volkswagen Passat models. The timing belt features a black HSN (Hydrogenated Nitrile) rubber compound, known for its resistance to heat and wear, ensuring durability under demanding engine conditions. The curvilinear (ii) tooth style enhances engagement with the camshaft and crankshaft sprockets, promoting smooth and accurate timing.

The kit contains four components: one timing belt, two tensioners (hydraulic and eccentric), and one idler pulley. The hydraulic tensioner maintains optimal belt tension automatically, reducing the risk of belt slippage or premature wear. The eccentric tensioner provides additional adjustment capability during installation. This combination supports precise valve timing critical for engine performance and longevity.

PowerGrip Premium OE Timing Belt Component Kit Line

The PowerGrip Premium OE Timing Belt Component Kit line by Gates is designed to meet or exceed original equipment manufacturer standards. This product line focuses on delivering complete timing belt solutions that include all necessary components for a professional replacement. The TCK317 kit exemplifies this approach by providing a comprehensive set of parts engineered for compatibility and durability in Audi and Volkswagen engines.

Applications and Common Issues Addressed

• Replacement of worn or damaged timing belts in Audi A4, A4 Quattro, and Volkswagen Passat
• Correction of timing belt tension problems caused by failing tensioners
• Prevention of engine misfires or poor performance due to timing belt slippage
• Resolution of noise or vibration issues related to idler pulley wear
• Maintenance of proper valve timing to avoid engine damage

Installation Notes and Tips

• Follow the included installation instructions carefully (Instruction Sheet Number 0098-1646)
• Ensure all components are installed in the correct sequence to maintain timing accuracy
• Use proper tools to adjust the hydraulic and eccentric tensioners for optimal belt tension
• Inspect related components such as water pumps and seals during installation, although not included in this kit
• Verify timing marks alignment even though this kit does not include timing marks on the belt

Quality Assurance and Warranty

Gates manufactures the PowerGrip Premium OE Timing Belt Component Kit to meet stringent quality standards. Each kit undergoes rigorous testing to ensure durability and fitment accuracy for Audi and Volkswagen applications. Installation instructions are provided to support proper replacement procedures. Warranty details should be confirmed with the product documentation or supplier, as they may vary by region.
