Gates TCK347 Engine Timing Belt Component Kit

Gates TCK347 Timing Belt Kit Overview

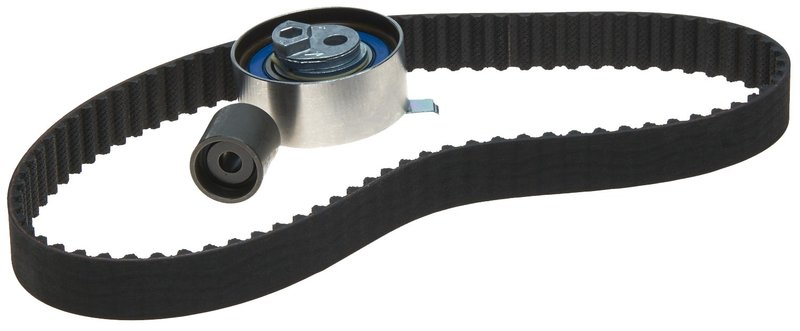

The Gates PowerGrip Premium OE Timing Belt Component Kit TCK347 is built for engine timing service on select Audi, Volkswagen, and related applications. It includes the timing belt, tensioner, and idler needed for a complete timing component replacement, helping streamline parts sourcing for a proper service job.

Gates designs its timing component kits as OE-equivalent or better in service life, quality, and performance, with coverage for a wide range of vehicle applications. This kit is a direct-fit service solution for 2010-2012 Audi Q5, 2008-2012 Audi Q7, and 2011-2012 Volkswagen Touareg timing belt maintenance.

Key Features

• Gates PowerGrip Premium OE Timing Belt Component Kit
• Part number TCK347
• Includes timing belt, tensioner, and idler
• Timing belt material: HSN
• Modified Curvilinear (III) tooth profile
• 82-tooth belt with 24 mm width
• Spring-style tensioner design
• Installation instructions included
• No timing marks on the belt

Product Details

The Gates TCK347 is engineered for timing system service where a complete component replacement is preferred over replacing a single wear item. The kit uses an HSN timing belt with a modified curvilinear tooth design to support consistent engagement with the sprockets, while the included tensioner and idler help restore proper belt tracking and tension control. For technicians and DIY service work, the included instructions provide a clear reference during installation.

As part of the Gates PowerGrip Premium OE Timing Belt Component Kit line, this kit reflects Gates’ focus on OE-style timing service parts for Audi Q5, Audi Q7, and Volkswagen Touareg applications. If you are searching for a Gates TCK347 timing belt kit for 2010-2012 Audi Q5 or 2008-2012 Audi Q7 timing service, this kit matches those confirmed applications.

This part cross-references 2523470 for the same application.

Common Timing Service Issues

• Worn or stretched timing belt
• Noise from a failing tensioner or idler
• Loss of proper belt tension
• Timing system service due at scheduled maintenance intervals
• Need for a complete timing component replacement on Audi Q5, Audi Q7, or Volkswagen Touareg

Installation Notes

Verify engine code and vehicle application before installation. Follow the included instruction sheet number 0098-1968 and confirm belt routing, tensioner setup, and alignment during service. Because this belt does not include timing marks, careful indexing and proper timing procedures are important during installation on the Audi Q5, Audi Q7, and Volkswagen Touareg applications listed.

Quality Assurance

Gates is a major manufacturer of timing belts and timing component kits and supplies OE-level timing products for vehicle manufacturers worldwide. The TCK347 is built to OE-equivalent or better standards for service life, quality, and performance in the confirmed applications.
