Gates TCKWP104A Engine Timing Belt Kit with Water Pump

Timing Belt Kit with Water Pump for Nissan

The Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump is built for timing belt service on select Nissan applications. It combines the timing belt, tensioner, water pump, and gasket in one repair package to support a complete front-end engine service.

For Nissan Maxima and Nissan Quest timing belt replacement, this kit helps address the critical wear items that are commonly serviced together on interference-engine applications.

Key Features

• Gates PowerGrip Premium OE timing belt component kit with water pump

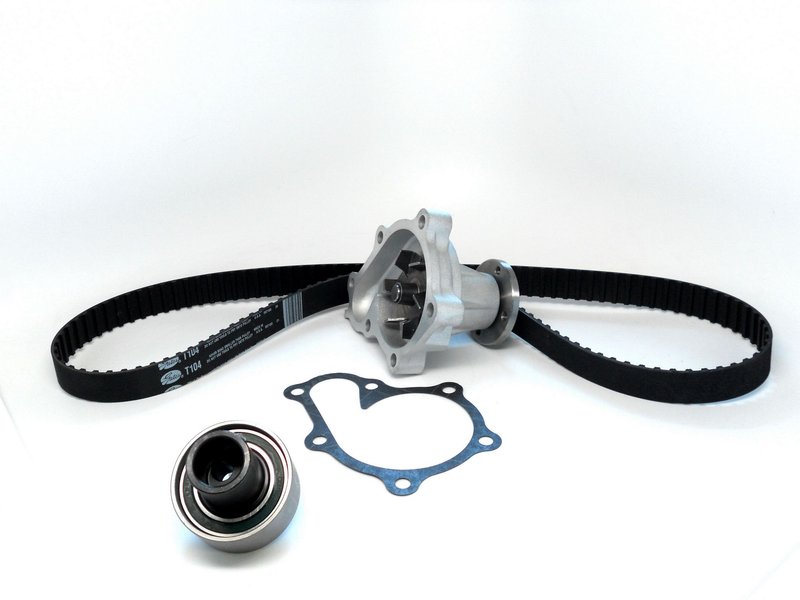

• Includes timing belt, tensioner, water pump, and gasket
• OE performance comparison rating
• Timing belt uses HCR and fiberglass cord construction
• Timing marks included on the belt for service alignment
• Installation instructions included
• Designed for square-tooth sprocket applications listed below

Product Details

Part number TCKWP104A is a Gates timing belt kit engineered for select 1985-1994 Nissan Maxima and 1993-1994 Nissan Quest applications. The PowerGrip Premium OE Timing Belt Component Kit with Water Pump line is built around the timing belt service interval by grouping the belt, tensioner, and water pump into one service solution. Gates notes that timing belt driven water pumps should be replaced at the same time as the belt, which is especially important on interference engines where timing system condition directly affects engine operation.

This kit is a direct service choice for Nissan Maxima timing belt replacement and Nissan Quest timing belt and water pump service where the listed engine and sprocket configuration matches. Part number TCKWP104A also cross-references Dayco WP104K1B for the same application.

What This Kit Helps Address

• Timing belt wear, cracking, or tooth damage
• Water pump leakage or bearing noise during timing service
• Tensioner wear that can affect belt tracking and tension
• Coolant seepage at the pump gasket area
• Noise or drivability issues related to aging timing components

Installation Notes

Verify engine configuration before installation, including square-tooth sprocket application details and interference-engine requirements. Follow the included instructions and service procedures for belt timing alignment, tensioner setup, and water pump replacement. Because this is a timing system repair, careful indexing and torque control are important during reassembly.

Quality Assurance

Gates positions this kit as an OE-performance timing service solution, using premium timing components and a matched water pump for complete maintenance on the listed Nissan applications. The kit is intended to support a thorough timing belt service on vehicles such as the Nissan Maxima and Nissan Quest.
