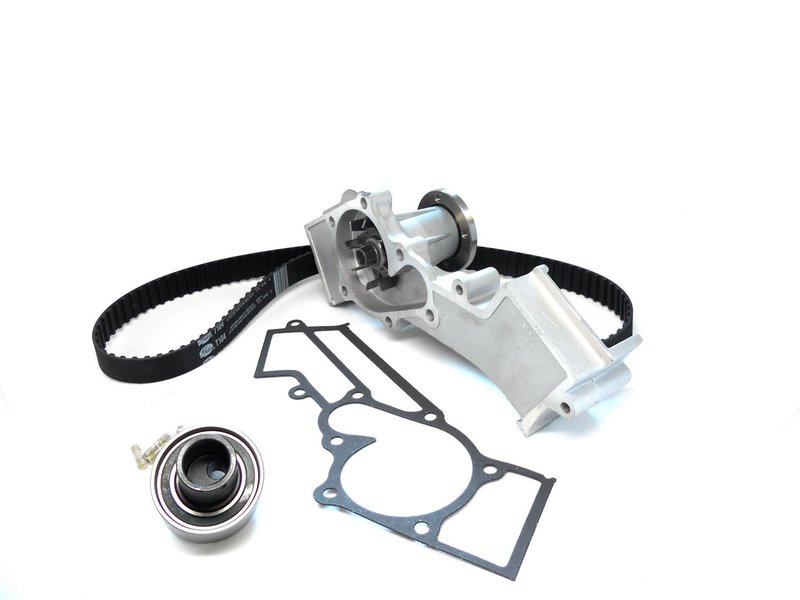

Gates TCKWP104B Engine Timing Belt Kit with Water Pump

Timing Belt Kit with Water Pump

Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump, part number TCKWP104B, is built for timing belt service on select Nissan applications. It combines the timing belt, tensioner, water pump, and sealing components in one repair package for a more complete engine maintenance job.

Compatible With 1986-1994 Nissan D21 and 1987-1993 Nissan Pathfinder applications listed below, including interference-engine configurations and square-tooth sprocket setups where noted.

Key Features

• Gates PowerGrip Premium OE timing belt component kit with water pump
• Includes a timing belt with trapezoidal tooth profile and timing marks
• Includes tensioner and water pump for coordinated service
• Includes gasket or seal components and installation instructions
• OE Performance comparison rating
• Black belt construction with HCR and fiberglass cord reinforcement
• 133-tooth, 25 mm wide timing belt

Product Details

The Gates TCKWP104B is a timing belt service kit for engines that use a belt-driven water pump. Gates packages the belt, tensioner, water pump, and gasket/seal components together so the critical wear items are replaced during the same service interval. This approach supports proper timing system maintenance on Nissan D21 and Nissan Pathfinder models listed in the fitment data, including interference-engine applications.

This part cross-references Dayco WP104K1C for the same application.

Common Problems This Kit Can Address

• Timing belt wear, cracking, or tooth damage
• Water pump leakage or bearing noise
• Tensioner wear that can affect belt tracking and tension
• Coolant seepage at the pump or gasket interface
• Service repeat work caused by replacing only part of the timing system

Installation Notes

• Follow the included instructions and the vehicle service manual for timing alignment and torque specifications.
• Verify engine configuration before installation, especially on interference-engine Nissan D21 and Pathfinder applications.
• Inspect sprockets, seals, and related timing components during service.
• Replace the water pump at the same time as the timing belt when the pump is belt-driven.

Quality Assurance

Gates positions this PowerGrip Premium OE Timing Belt Component Kit with Water Pump as an OE-performance service solution using premium timing components and a matched water pump for the listed Nissan applications.
