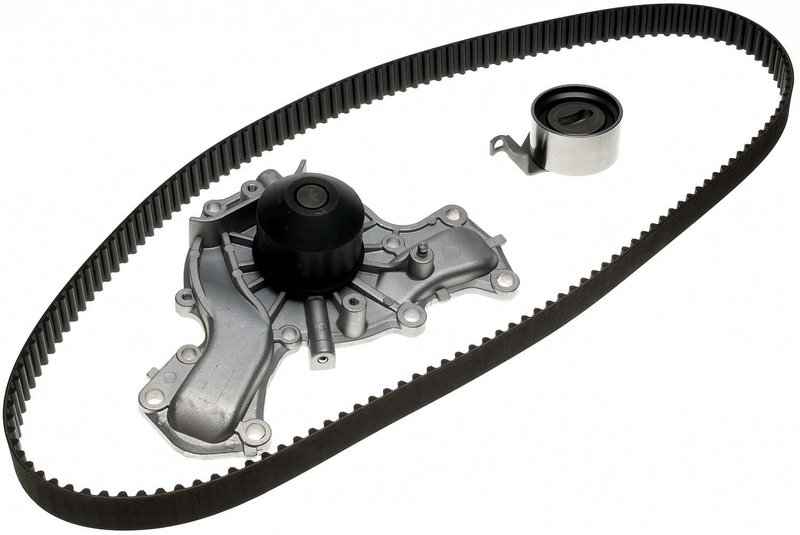

Gates TCKWP193 Engine Timing Belt Kit with Water Pump
| Brand | Gates TCKWP193 |
|---|---|
| 0 | |
| 1 | |
| 1 | |
| Belt Material | HSN, Fiberglass Cord |
| Belt Material | HSN, Fiberglass Cord |
| Belt Profile Type | Modified Curvilinear (III) |
| Belt Quantity | 1 |
| Belt Tensioner Included | Yes |
| Belt Tooth Style | Modified Curvilinear (III) |
| Belt Top Color | Black |
| Bolt Included | No |
| Bolt Included | No |
| Bolt Quantity | 0 |
| Cog Quantity | 196 |
| Contents | Belt, Tensioner, Water Pump, Gasket, Rubber Seal Ring |
| Gasket Or Seals Included | Yes |
| Gasket or Seal Included | Yes |
| Idler Pulley Included | No |
| Includes Installation Tool | No |
| Installation Instructions Included | Yes |
| Installation Tool Included | No |
| Instruction Sheet Number | 0098-0130 |
| Instructions Included | Yes |
| Number of Belts Included | 1 |
| Number of Bolts | 0 |
| Number of Components | 3 |
| Number of Gaskets | 1 |
| Number of Idlers | 0 |
| Number of Seals | 1 |
| Number of Springs | 0 |
| Number of Teeth on Belt | 196 |
| Number of Tensioners | 1 |
| Number of Timing Belts | 1 |
| Number of Water Pumps | 1 |
| OE Component Comparison Rating | OE Exact |
| Spring Included | No |
| Spring Quantity | 0 |
| Springs Included | No |
| Tensioner Included | Yes |
| Tensioner Type | Spring |
| Timing Belt Included | Yes |
| Timing Belt Timing Marks Included | No |
| Timing Belt Width (in) | 1.102 |
| Timing Belt Width (mm) | 28 |
| Product line | PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| Fits | Acura · 7 vehicles |
OE exact match. Includes the same core components for a complete timing system repair.
Complete repair kit. Timing belt, tensioner, water pump, gasket, and seal are all included.
Premium belt construction. HSN and fiberglass cord help deliver durable, precise timing performance.
Cross-references Continental PP193LK1, Dayco WP193K1B and Dayco WP193K1BS for the same application. See all 10.
Timing Belt Kit with Water Pump for Acura Legend
Gates TCKWP193 is a PowerGrip Premium OE timing belt component kit with water pump for 1991-1995 Acura Legend applications. It combines the timing belt, tensioner, water pump, gasket, and seal components needed for a complete timing system service on interference-engine vehicles.
Key Features
- Fits 1991-1995 Acura Legend, N/A
- PowerGrip Premium OE timing belt component kit with water pump
- OE Exact component comparison rating
- Includes timing belt, spring tensioner, water pump, gasket, and rubber seal ring
- Timing belt uses HSN and fiberglass cord construction
- Modified Curvilinear (III) tooth profile and belt design
- Timing belt has 196 teeth and 28 mm width
- Installation instructions included
Product Details
The Gates PowerGrip Premium OE Timing Belt Component Kit W/Water Pump, part number TCKWP193, is built for timing belt service where the water pump is driven by the belt. Gates packages the belt, tensioner, water pump, gasket, and seal components together so the major wear items in the system are replaced at the same time. For Acura Legend owners, this helps support a complete repair on 1991-1995 models with interference engines. Gates TCKWP193 is also referenced by cross-number applications such as 20349K and BWPK44047 for the same vehicle coverage.
Common Repair Uses
- Timing belt wear, cracking, or age-related deterioration
- Tensioner noise or loss of belt control
- Water pump leakage or coolant seepage from the timing cover area
- Cooling system service tied to timing belt replacement
- Interference-engine maintenance on Acura Legend models
Installation Notes
Replace the timing belt driven water pump at the same time as the belt service. Follow the included instructions and verify timing marks, belt routing, and tensioner setup before engine start-up. Gates TCKWP193 is intended for 1991-1995 Acura Legend applications, so confirm engine configuration and service requirements before installation.
Quality Assurance
Gates builds this kit to OE Exact standards for the listed application, using premium timing system components matched for a complete service repair. The PowerGrip Premium OE timing belt component kit line is organized around replacing the critical wear parts together, reducing the chance of repeat teardown on Acura Legend timing belt service.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1995 | Acura | Legend | — | Coupe | 3.2L | V6 | GAS | N/A | Compatible with interference engines.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1995 | Acura | Legend | GS | Sedan | 3.2L | V6 | GAS | N/A | Compatible with interference engines.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1994 | Acura | Legend | — | Coupe | 3.2L | V6 | GAS | N/A | Compatible with interference engines.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1994 | Acura | Legend | GS | Sedan | 3.2L | V6 | GAS | N/A | Compatible with interference engines.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1993 | Acura | Legend | — | Coupe | 3.2L | V6 | GAS | N/A | Compatible with interference engines.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1992 | Acura | Legend | — | — | 3.2L | V6 | GAS | N/A | Compatible with interference engines.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1991 | Acura | Legend | — | — | 3.2L | V6 | GAS | N/A | Compatible with interference engines.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
