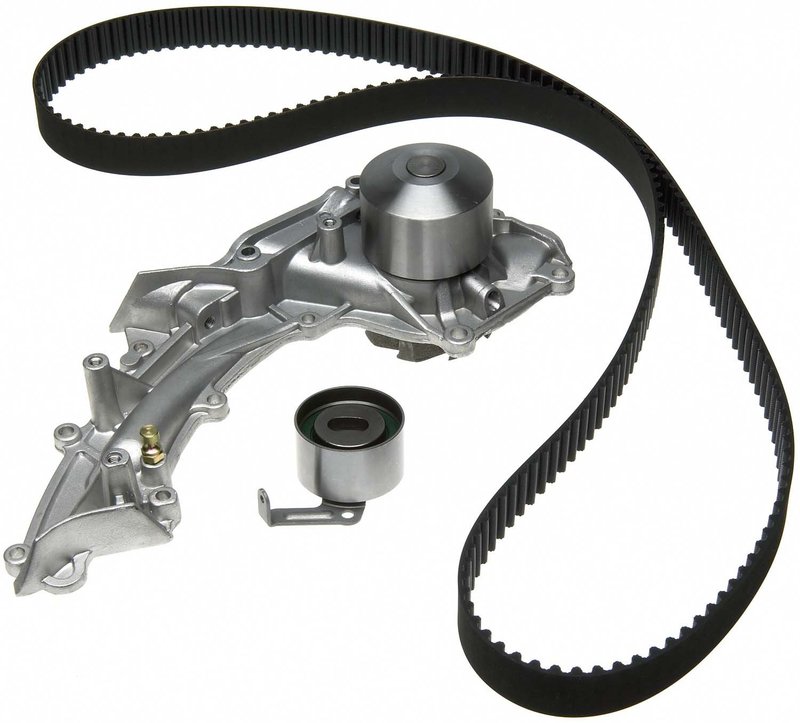

Gates TCKWP193A Engine Timing Belt Kit with Water Pump

Timing Belt Kit With Water Pump

Gates TCKWP193A is a PowerGrip Premium OE timing belt component kit with water pump for select 1996-1998 Acura TL applications. It combines the timing belt, tensioner, water pump, and seal rings in one service package for interference-engine maintenance on the Acura TL.

• Fits 1996-1998 Acura TL, N/A
• Includes a timing belt with 196 teeth and 28 mm width
• Uses HSN belt material with fiberglass cord reinforcement
• Includes a spring-type tensioner
• Includes a water pump and gasket/seal components
• OE Exact component comparison rating
• Instructions included for service reference

PowerGrip Premium OE Line

The Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump is built around the same core service parts used in Gates timing belt kits, with the added water pump for a more complete timing service. For vehicles where the water pump is driven by the timing belt, replacing these components together helps keep the repair aligned with the original system layout. Gates TCKWP193A is listed for 1996-1998 Acura TL models and is also referenced by cross numbers such as Continental PP193LK2 and Dayco WP193K1CS for the same application.

Common Repair Issues

• Timing belt wear, cracking, or age-related deterioration
• Tensioner noise or loss of belt control
• Water pump leakage or coolant seepage at the timing drive area
• Seal-ring deterioration during timing service
• Service overlap when the timing belt and water pump are replaced separately

Installation Notes

Follow the included instruction sheet during installation and verify timing alignment before engine start-up. Because this kit is for interference-engine Acura TL applications, correct timing setup is critical. Replace the timing belt-driven water pump at the same time as the belt service, and inspect related seals and tensioning components during reassembly.

Quality Assurance

Gates identifies this kit as an OE Exact component match for the listed application, with premium timing system parts selected for direct service replacement on the Acura TL. Part number TCKWP193A is the catalog reference for this timing belt kit with water pump.
