Gates TCKWP200A Engine Timing Belt Kit with Water Pump

Timing Belt Kit With Water Pump

Gates TCKWP200A is a PowerGrip Premium OE timing belt component kit with water pump for select 1992-1993 Lexus ES300 and 1992-1993 Toyota Camry applications. It combines the timing belt, pulleys, tensioners, and water pump in one repair package to address the full timing system service at the same time.

Built around OE exact component comparison, this kit uses a timing belt with HSN and fiberglass cord construction, a curvilinear tooth profile, timing marks, and a black belt finish. Gates TCKWP200A is a direct-fit service solution for owners and technicians replacing worn timing components on the Lexus ES300 and Toyota Camry.

• Compatible with 1992-1993 Lexus ES300 and 1992-1993 Toyota Camry

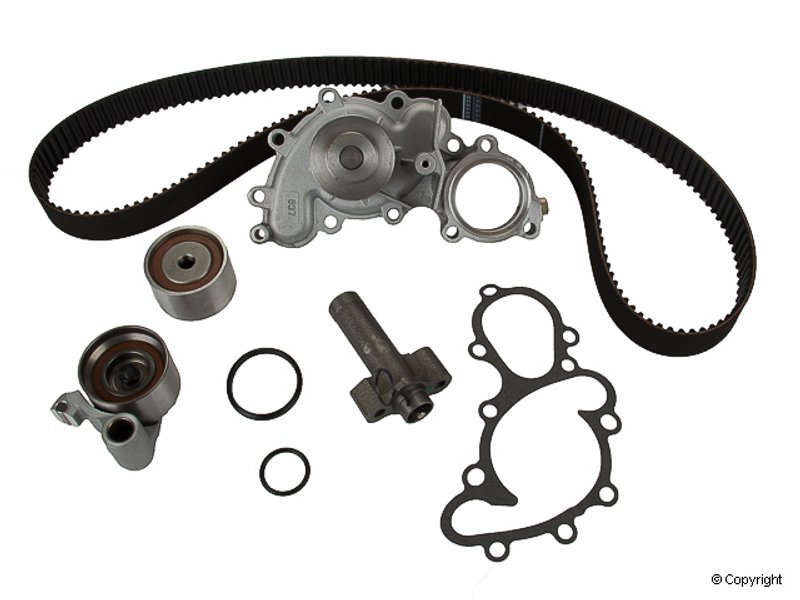

• Includes timing belt, tensioner, hydraulic tensioner, idler, water pump, gasket, and seals
• Timing belt features 191 teeth, 32 mm width, and curvilinear tooth style
• Hydraulic tensioner and idler included for complete timing service
• Water pump replacement included for timing belt-driven cooling system maintenance
• Installation instructions included

Gates PowerGrip Premium OE Line

The Gates PowerGrip Premium OE line is built for timing system service where matched components matter. TCKWP200A follows the same OE-focused approach as Gates timing belt component kits, adding the water pump so the full belt-driven system can be serviced together instead of replacing only one wear item. This helps streamline repairs on 1992-1993 Toyota Camry and 1992-1993 Lexus ES300 timing belt service jobs.

This part cross-references Dayco WP200K1B and Continental PP200LK2 for the same application.

Common Problems This Kit Can Address

• Timing belt wear, cracking, or age-related deterioration
• Noisy or worn tensioner and idler components
• Water pump leakage or cooling system service during timing belt replacement
• Loss of timing accuracy from stretched or fatigued belt components
• Repeat repairs caused by replacing only part of the timing system

Installation Notes

Replace the timing belt-driven water pump at the same time as the belt service. Follow the included instructions and verify timing marks during installation. Inspect related seals and gasket surfaces before reassembly, and confirm proper tensioner operation after the system is installed.

Quality Assurance

Gates lists this kit as an OE exact component comparison product and includes the critical timing system parts needed for a complete repair. The kit is engineered for the specified Lexus ES300 and Toyota Camry applications and is supplied with installation instructions for service support.
