Gates TCKWP240 Engine Timing Belt Kit with Water Pump

Timing Belt Kit With Water Pump

The Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump, part number TCKWP240, is a complete engine service solution for select Toyota applications. It combines OE-style timing components with a matched water pump, helping streamline major front-of-engine maintenance on 1993-1995 Toyota 4Runner, 1993-1995 Toyota Pickup, and 1993-1994 Toyota T100 models.

Key Features

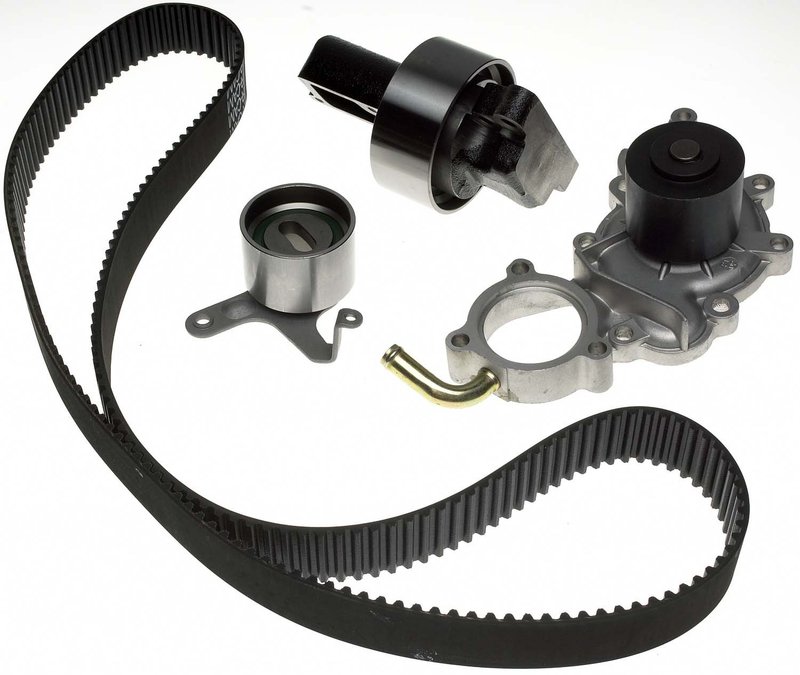

• Includes a timing belt, pulleys, tensioners, hydraulic tensioner, idler, water pump, gasket, and O-ring
• OE Performance rating for factory-style fit and function
• Timing belt uses HSN and fiberglass cord construction
• Curvilinear tooth profile with 193 teeth and 36 mm width
• Timing marks included for setup reference
• Installation instructions included
• Gates TCKWP240 is part of the PowerGrip Premium OE Timing Belt Component Kit with Water Pump line

Product Details

Gates TCKWP240 is built for timing belt-driven water pump service where the belt, tensioning components, and pump are replaced together. The kit is designed around OE-style component matching, including a hydraulic tensioner, idler pulley, and sealing components for a more complete repair. For Toyota 4Runner, Toyota Pickup, and Toyota T100 timing belt service, this kit supports a thorough front-engine maintenance job using the correct Gates component set.

This part cross-references Continental TB240LK1 and Dayco WP240K1C for the same application.

What It Is Used For

• Replacing a worn or noisy timing belt on Toyota 4Runner, Pickup, or T100 engines
• Servicing a leaking or aging water pump during timing belt maintenance
• Addressing belt tension issues caused by worn hydraulic tensioners or idlers
• Restoring proper camshaft and crankshaft timing after scheduled service
• Reducing repeat teardown by replacing related wear components together

Installation Notes and Tips

Follow the included instructions and the vehicle service manual for timing alignment, torque values, and coolant refill procedures. Inspect related front-engine seals and accessory drive components during service, and verify all timing marks before engine startup. Because this kit includes a hydraulic tensioner, proper bleeding and setup procedures should be followed during installation.

Quality Assurance

Gates PowerGrip Premium OE Timing Belt Component Kits are built to OE performance standards and combine the major wear items involved in timing belt service into one matched repair package. TCKWP240 is engineered for the listed Toyota applications and uses Gates component specifications for timing system maintenance.
