Gates TCKWP240C Engine Timing Belt Kit with Water Pump

OE Timing Belt Kit With Water Pump

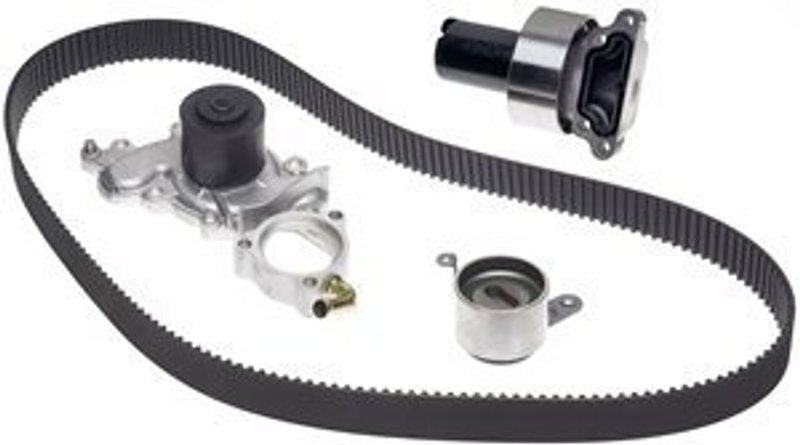

The Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump, part number TCKWP240C, is built for timing belt service on select Toyota trucks and SUVs. It combines the timing belt, tensioner, idler, spring, water pump, gasket, and seal in one repair package for a complete front-end service.

Compatible With 1988-1992 Toyota 4Runner and 1988-1992 Toyota Pickup applications, this kit follows OE-style service logic by replacing the timing belt-driven water pump at the same time as the belt. The Gates TCKWP240C is a practical choice for owners and technicians servicing high-mileage Toyota 4Runner and Toyota Pickup engines with timing belt-driven cooling components.

Key Features

• Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump
• Includes timing belt, tensioner, idler, spring, water pump, gasket, and O-ring
• Timing belt uses HSN and fiberglass cord construction
• Curvilinear tooth profile with timing marks for service alignment
• OE Performance comparison rating
• Installation instructions included
• Part number TCKWP240C for easy identification

Detailed Description

Gates TCKWP240C is part of the PowerGrip Premium OE Timing Belt Component Kit with Water Pump line, which brings together the critical wear items involved in timing belt service. The belt, pulleys, tensioning components, and water pump are supplied together so the engine’s timing system and cooling system can be serviced at the same time. This approach helps reduce repeat teardown work on Toyota 4Runner and Toyota Pickup models where the water pump is driven by the timing belt.

The belt features a black top surface, curvilinear tooth design, and 193 teeth with a 36 mm width. Gates also includes the gasket and seal needed for water pump installation, along with instructions for the repair process. If you are searching for a Toyota 4Runner timing belt kit with water pump or a Toyota Pickup timing belt component kit, TCKWP240C is the OE-style service solution to reference.

This part cross-references Continental TB154LK1 and Dayco WP154K1B for the same application.

What This Kit Helps Address

• Timing belt wear, cracking, or age-related deterioration
• Water pump leakage or coolant seepage from the timing cover area
• Noise from worn tensioner, idler, or spring components
• Repeat labor from servicing the belt and pump separately
• Timing service on 1988-1992 Toyota 4Runner and 1988-1992 Toyota Pickup engines

Installation Notes and Tips

Replace the timing belt-driven water pump during timing belt service to avoid duplicate labor. Follow the included instructions and verify camshaft and crankshaft timing marks before reassembly. Inspect related seals and the tensioning system during installation, and confirm proper belt routing and tension after the engine is rotated by hand.

Quality Assurance

Gates supplies this kit as an OE-performance timing service solution with matched components for the belt drive system and water pump service. The included instructions support a more complete repair on the specified Toyota 4Runner and Toyota Pickup applications.
