Gates TCKWP257 Engine Timing Belt Kit with Water Pump

Timing Belt Kit With Water Pump

Gates TCKWP257 is a PowerGrip Premium OE timing belt component kit with water pump for select Toyota and Lexus applications. It combines the timing belt, pulleys, tensioners, idler, and water pump in one service package for a complete timing system repair.

Fits 1994-2001 Lexus ES300, N/A; Fits 1995-2004 Toyota Avalon, N/A; Fits 1998-2003 Toyota Sienna, N/A; Fits 1999-2003 Toyota Solara, N/A; Fits 1999-2003 Lexus RX300, N/A; Fits 1994-2001 Toyota Camry, N/A.

Key Features

• PowerGrip Premium OE timing belt component kit with water pump
• OE Exact component comparison rating

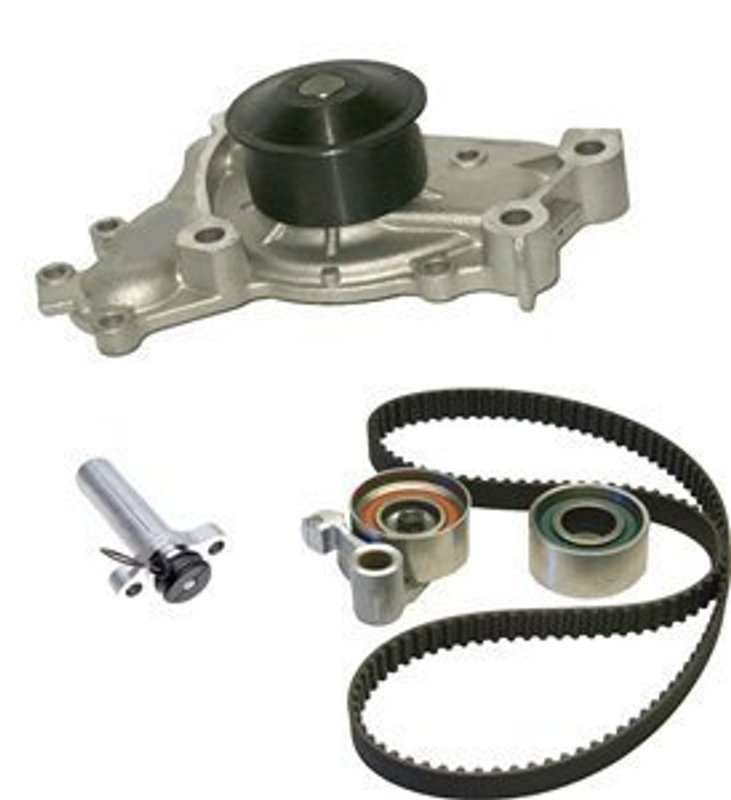

• Includes timing belt, hydraulic tensioner, tensioner, idler, water pump, and metal gasket
• Timing belt uses HSN and fiberglass cord construction
• Curvilinear tooth profile with timing marks
• Installation instructions included
• Gates TCKWP257 cross-references Airtex AWK1221 and Dayco WP257K1A for the same application

Product Details

The Gates PowerGrip Premium OE Timing Belt Component Kit W/Water Pump is built for timing belt service on the Toyota Camry, Toyota Avalon, Toyota Sienna, Toyota Solara, Lexus ES300, and Lexus RX300 applications listed above. Gates packages the belt, tensioning components, idler, and water pump together so the timing system can be serviced at the same time, which is important when the water pump is driven by the timing belt. The TCKWP257 is engineered as an OE-style replacement with a curvilinear belt profile and a 32 mm belt width for proper fit and operation.

Common Repair Reasons

• Worn or noisy timing belt components
• Water pump service during timing belt replacement
• Hydraulic tensioner or idler wear
• Timing belt age, cracking, or tooth wear
• Coolant leaks from the timing system area

Installation Notes

Replace the timing belt and timing belt driven water pump together during service. Follow the included instructions and verify timing marks before reassembly. Inspect related pulleys and sealing surfaces during installation, and confirm all components are seated correctly before starting the engine.

Quality Assurance

Gates markets this kit as an OE Exact timing system solution, using premium components matched for the listed Toyota and Lexus fitments. The included water pump, gasket, and timing components are packaged for a complete timing belt service on the applications shown.
