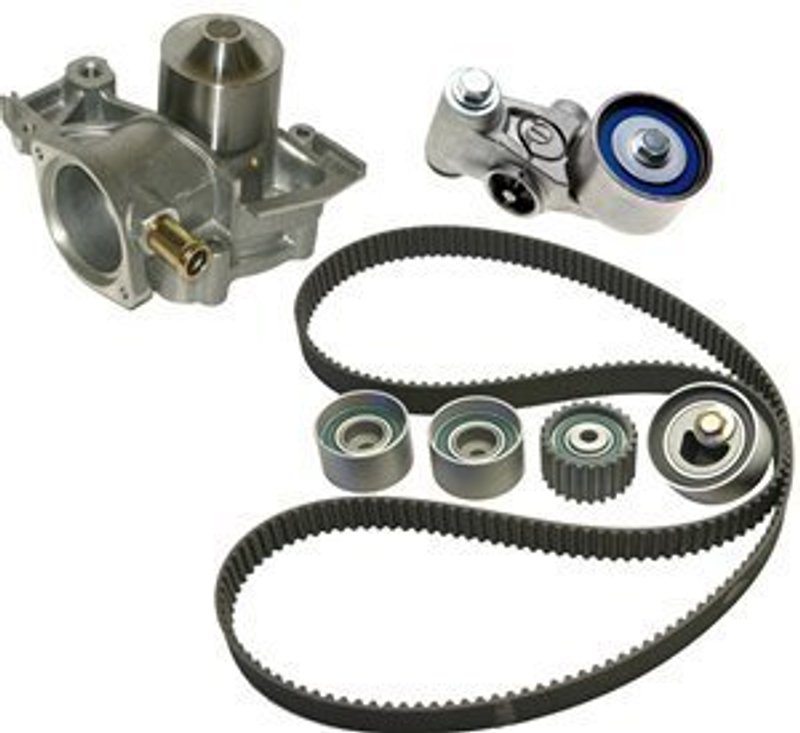

Gates TCKWP277A Engine Timing Belt Kit with Water Pump
| Brand | Gates TCKWP277A |
|---|---|
| 1 | |
| 1 | |
| 3 | |
| Belt Material | HSN, Fiberglass Cord |
| Belt Material | HSN, Fiberglass Cord |
| Belt Profile Type | Modified Curvilinear (III) |
| Belt Quantity | 1 |
| Belt Tensioner Included | Yes |
| Belt Tooth Style | Modified Curvilinear (III) |
| Belt Top Color | Black |
| Bolt Included | No |
| Bolt Included | No |
| Bolt Quantity | 0 |
| Cog Quantity | 281 |
| Contents | Belt, OE Improved Hyd. Tensioner, 3 Idlers, Water Pump, Install. Tool, Loctite, Metal Gasket, O-Ring |
| Gasket Or Seals Included | Yes |
| Gasket or Seal Included | Yes |
| Idler Pulley Included | Yes |
| Includes Installation Tool | Yes |
| Installation Instructions Included | Yes |
| Installation Tool Included | Yes |
| Instruction Sheet Number | 0098-1655 |
| Instructions Included | Yes |
| Number of Belts Included | 1 |
| Number of Bolts | 0 |
| Number of Components | 6 |
| Number of Gaskets | 1 |
| Number of Idlers | 3 |
| Number of Seals | 1 |
| Number of Springs | 0 |
| Number of Teeth on Belt | 281 |
| Number of Tensioners | 1 |
| Number of Timing Belts | 1 |
| Number of Water Pumps | 1 |
| OE Component Comparison Rating | OE Improved |
| Spring Included | No |
| Spring Quantity | 0 |
| Springs Included | No |
| Tensioner Included | Yes |
| Tensioner Type | Hydraulic |
| Timing Belt Included | Yes |
| Timing Belt Timing Marks Included | Yes |
| Timing Belt Width (in) | 1.181 |
| Timing Belt Width (mm) | 30 |
| Product line | PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| Fits | Subaru · 5 vehicles |
OE improved kit. Includes premium timing components plus a water pump for a complete repair.
Hydraulic tensioner. Helps maintain proper belt tension for reliable operation.
Modified curvilinear design. Built with HSN and fiberglass cord for durable belt performance.
Cross-references Continental PP277LK2, Continental TB277LK2 and Dayco WP277K3A for the same application. See all 9.
Timing Belt Kit With Water Pump for Subaru
The Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump is built for Subaru interference-engine service where the timing belt, tensioner, idlers, and water pump are replaced together. This Gates TCKWP277A kit is a direct repair solution for 1997-1999 Subaru Legacy, 1998 Subaru Forester, and 1998 Subaru Impreza applications with integrated assembly and OE improved components.
Key Features
- Includes a timing belt with modified curvilinear tooth profile and timing marks
- Uses HSN rubber with fiberglass cord reinforcement for belt durability
- Includes an OE improved hydraulic tensioner
- Includes three idler pulleys and a water pump
- Includes gasket, seal, installation instructions, and installation tool
- Designed for Subaru Legacy, Subaru Forester, and Subaru Impreza interference engine applications
- Part number TCKWP277A for catalog and service matching
Product Details
Gates PowerGrip Premium OE Timing Belt Component Kit W/Water Pump is engineered as a complete timing service package for Subaru engines that use a timing belt driven water pump. The kit combines the belt, hydraulic tensioner, idlers, water pump, and sealing components so the critical wear items are replaced at the same time. For Subaru Legacy, Subaru Forester, and Subaru Impreza service, this approach helps restore proper timing system operation and supports a more complete repair. The Gates TCKWP277A is also cross-referenced to Dayco WP277K3A for the same application.
Common Problems This Kit Addresses
- Timing belt wear, cracking, or tooth damage
- Noise or instability from worn idler pulleys
- Loss of belt tension from a failing hydraulic tensioner
- Coolant leakage from a worn timing belt driven water pump
- Repeat timing service caused by replacing only part of the system
Installation Notes
Use the included instructions and installation tool during service. Replace the timing belt, tensioner, idlers, and water pump together on interference-engine Subaru applications to keep the timing system serviced as a matched assembly. Confirm engine code and vehicle application before installation, and follow the supplied instruction sheet number 0098-1655 for procedure details. The Gates TCKWP277A is intended for 1997-1999 Subaru Legacy, 1998 Subaru Forester, and 1998 Subaru Impreza models listed in the fitment data.
Quality Assurance
Gates identifies this kit as an OE improved timing belt component solution, combining premium timing components with a water pump for a more complete repair package. The PowerGrip Premium OE Timing Belt Component Kit with Water Pump line is built around matched service parts for timing belt driven systems.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1999 | Subaru | Legacy | 2.5L | H4 | GAS | N/A | Interference engine applications with integrated assembly and OE improved.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1998 | Subaru | Forester | 2.5L | H4 | GAS | N/A | Interference engine applications with integrated assembly and OE improved.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1998 | Subaru | Impreza | 2.5L | H4 | GAS | N/A | Interference engine applications with integrated assembly and OE improved.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1998 | Subaru | Legacy | 2.5L | H4 | GAS | N/A | Interference engine applications with integrated assembly and OE improved.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| 1997 | Subaru | Legacy | 2.5L | H4 | GAS | N/A | Interference engine applications with integrated assembly and OE improved.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
