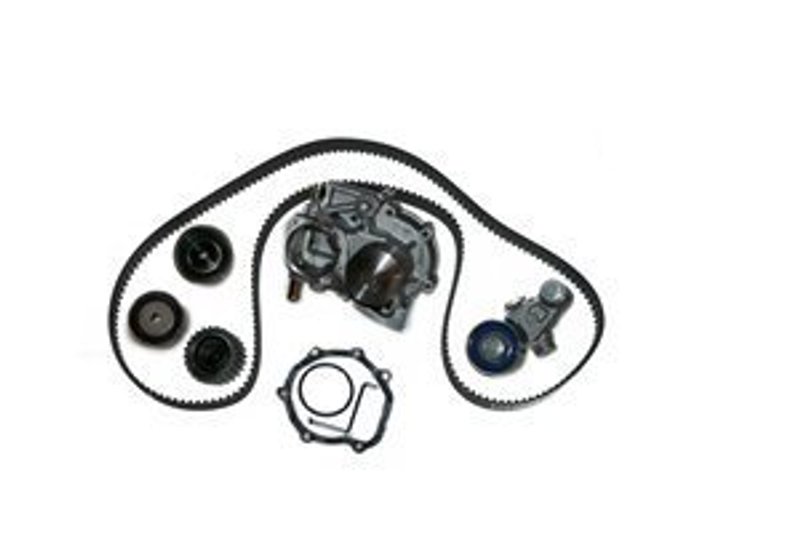

Gates TCKWP304B Engine Timing Belt Kit with Water Pump
| Brand | Gates TCKWP304B |
|---|---|
| 1 | |
| 1 | |
| 3 | |
| Belt Material | HSN, Fiberglass Cord |
| Belt Material | HSN, Fiberglass Cord |
| Belt Profile Type | Modified Curvilinear (III) |
| Belt Quantity | 1 |
| Belt Tensioner Included | Yes |
| Belt Tooth Style | Modified Curvilinear (III) |
| Belt Top Color | Black |
| Bolt Included | No |
| Bolt Included | No |
| Bolt Quantity | 0 |
| Cog Quantity | 223 |
| Contents | Belt, Hydraulic Tensioner, 3 Idlers, Water Pump, Loctite, Metal Gasket, O-Ring |
| Gasket Or Seals Included | Yes |
| Gasket or Seal Included | Yes |
| Idler Pulley Included | Yes |
| Includes Installation Tool | No |
| Installation Instructions Included | Yes |
| Installation Tool Included | No |
| Instruction Sheet Number | 0098-1654 |
| Instructions Included | Yes |
| Number of Belts Included | 1 |
| Number of Bolts | 0 |
| Number of Components | 6 |
| Number of Gaskets | 1 |
| Number of Idlers | 3 |
| Number of Seals | 1 |
| Number of Springs | 0 |
| Number of Teeth on Belt | 223 |
| Number of Tensioners | 1 |
| Number of Timing Belts | 1 |
| Number of Water Pumps | 1 |
| OE Component Comparison Rating | OE Exact |
| Spring Included | No |
| Spring Quantity | 0 |
| Springs Included | No |
| Tensioner Included | Yes |
| Tensioner Type | Hydraulic |
| Timing Belt Included | Yes |
| Timing Belt Timing Marks Included | Yes |
| Timing Belt Width (in) | 1.063 |
| Timing Belt Width (mm) | 27 |
| Product line | PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
| Fits | Subaru · 1 vehicle |
OE exact replacement. Complete kit includes belt, tensioner, idlers, water pump, gasket, and seal.
Hydraulic tensioner. Built for precise belt control and consistent system operation.
Fiberglass cord belt. HSN construction with a modified curvilinear tooth profile for durability.
Cross-references Continental PP304LK5, Continental TB304LK3 and Dayco WP304K1D for the same application. See all 8.
Timing Belt Kit With Water Pump
Gates TCKWP304B is a PowerGrip Premium OE timing belt component kit with water pump for the 2006 Subaru Forester. It combines the timing belt, hydraulic tensioner, idlers, and water pump in one service package for a complete timing system repair on interference-engine applications.
Built around OE-exact component standards, this kit is a direct-fit service solution for Subaru Forester timing belt replacement work. The Gates TCKWP304B package is organized to replace the critical wear items together, helping restore proper cam timing and cooling system service at the same interval.
Key Features
- PowerGrip Premium OE timing belt component kit with water pump
- Includes timing belt, hydraulic tensioner, idlers, water pump, gasket/seal components, Loctite, and installation instructions
- OE Exact component comparison rating
- Timing belt uses HSN and fiberglass cord construction
- Modified Curvilinear (III) tooth profile and timing marks included
- Hydraulic tensioner included for proper belt control
- Fits 2006 Subaru Forester, N/A
Product Details
Gates PowerGrip Premium OE Timing Belt Component Kit W/Water Pump, part number TCKWP304B, is engineered for service jobs where the timing belt and water pump should be replaced together. Gates notes that timing belt driven water pumps should be serviced at the same time as the belt, and this kit packages the major wear components needed for that repair. For 2006 Subaru Forester timing belt service, TCKWP304B provides an OE-style repair path with matched components for the belt drive system and cooling circuit.
This part cross-references Continental PP304LK5 and Dayco WP304K1D for the same application.
Common Repair Issues
- Timing belt wear, cracking, or age-related deterioration
- Noise or rough operation from worn idlers or tensioner components
- Water pump leakage or cooling system service during timing belt replacement
- Loss of proper cam timing from stretched or damaged belt components
- Repeat repairs caused by replacing only part of the timing system
Installation Notes
Follow the included instructions and the vehicle service procedure for timing alignment, tensioner setup, and water pump installation. Replace the timing belt, hydraulic tensioner, idlers, and water pump together during service on the 2006 Subaru Forester to reduce the chance of repeat teardown. Verify all timing marks before engine start-up and inspect the cooling system after installation.
Quality Assurance
Gates positions this kit as an OE-exact timing system service solution, using premium components matched for the application. The included instructions and component set are intended to support a complete timing belt and water pump replacement on the 2006 Subaru Forester.
| Year | Make | Model | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2006 | Subaru | Forester | Automatic | 2.5L | H4 | GAS | N/A | Compatible with interference engines.; PowerGrip Premium OE Timing Belt Component Kit W/Water Pump |
