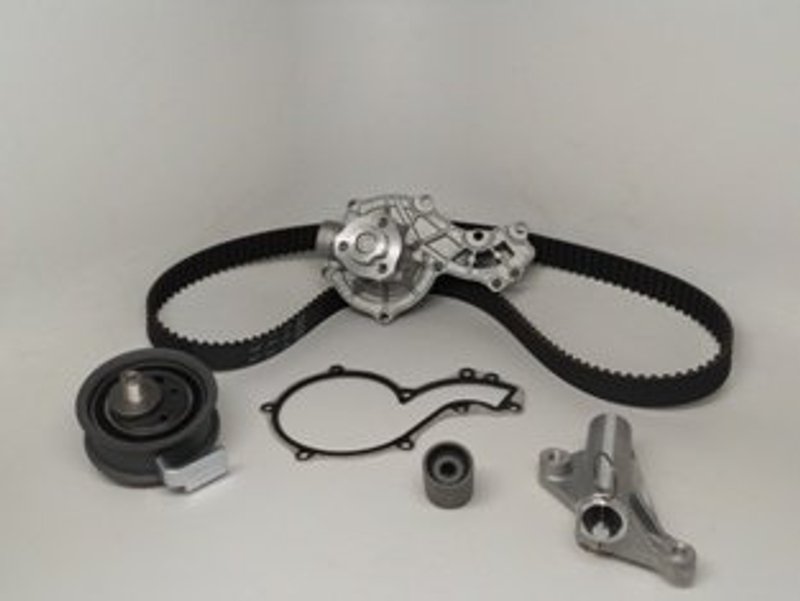

Gates TCKWP317 Engine Timing Belt Kit with Water Pump

Timing Belt Kit With Water Pump

The Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump is built for timing belt service on select Audi and Volkswagen applications. It combines the timing belt, pulleys, tensioners, and water pump in one repair package to support a complete front-end service on interference engines.

Part number TCKWP317 is a direct-fit timing belt kit for 1997-2000 Audi A4, 1997-2000 Audi A4 Quattro, and 1998-1999 Volkswagen Passat applications with the 153-tooth belt configuration.

Key Features

• Gates PowerGrip Premium OE Timing Belt Component Kit with Water Pump
• Includes timing belt, tensioner, hydraulic tensioner, idler, water pump, bolt, bushing, metal gasket, and washer
• OE Performance rating for factory-style service replacement
• Black HSN timing belt with fiberglass cord construction
• Curvilinear (II) belt profile and tooth style
• Hydraulic tensioner design for timing system service
• Installation instructions included
• Fits interference engine applications that require careful timing maintenance

Product Details

Gates TCKWP317 is part of the PowerGrip Premium OE Timing Belt Component Kit with Water Pump line, which combines the timing belt service components and the water pump into one coordinated repair. That approach is important on timing belt driven water pump systems, where replacing the pump at the same time as the belt helps complete the service with matched components. This kit is built around OE-style fit and function for Audi A4, Audi A4 Quattro, and Volkswagen Passat models listed in the fitment data.

This part cross-references Continental PP317LK1 for the same application.

Common Repair Uses

• Replacing a worn or aging timing belt during scheduled maintenance
• Addressing noise or wear from timing belt pulleys, idlers, or tensioners
• Servicing a leaking or aging water pump during timing system repair
• Restoring proper camshaft and crankshaft timing on interference engines
• Completing a front-of-engine service with matched timing components

Installation Notes

Use the included instructions during installation and verify engine timing marks before disassembly. Because this application uses a 153-tooth belt and an interference engine design, accurate timing alignment is critical. Replace related timing components together and inspect the belt path, pulleys, and sealing surfaces before reassembly.

Fits 1997-2000 Audi A4, N/A; Fits 1997-2000 Audi A4 Quattro, N/A; Fits 1998-1999 Volkswagen Passat, N/A. Notes include 153-tooth belt coverage and, for Passat applications, serial number 300001 and after.

Quality Assurance

Gates lists this kit as OE Performance, reflecting factory-style component selection for timing belt service. The PowerGrip Premium OE Timing Belt Component Kit with Water Pump line is engineered to consolidate the critical parts needed for a complete timing system repair.

Part number TCKWP317 is also referenced in OE-style timing kit cross listings for the same application family.
