Gates TCKWP323 Engine Timing Belt Kit with Water Pump

Timing Belt Kit With Water Pump

Gates TCKWP323 is a PowerGrip Premium OE timing belt component kit with water pump for select Hyundai and Kia applications. It combines the timing belt, tensioning components, idler, and water pump in one repair package for service on interference engines.

Compatible With 2002-2005 Kia Sedona, 2002-2005 Hyundai XG350, 2003-2006 Hyundai Santa Fe, and 2004-2006 Kia Amanti.

Key Features

• Gates PowerGrip Premium OE timing belt component kit with water pump

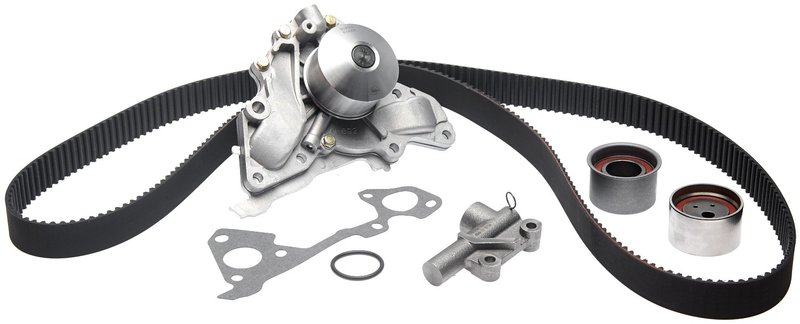

• Includes timing belt, tensioner, hydraulic tensioner, idler, water pump with back housing, gasket, and O-ring
• OE performance rating for service-level replacement
• Timing belt material uses HSN and fiberglass cord construction
• Modified curvilinear belt profile and tooth style
• Installation instructions included
• Cross-reference example: Dayco WP323K1C

Product Details

The Gates TCKWP323 is built for timing belt service where the water pump is driven by the belt system. Gates packages the critical wear items together so the belt drive, tensioning system, and pump can be serviced at the same time, which is the standard approach for interference-engine maintenance. This kit is listed for 2002-2005 Kia Sedona, 2002-2005 Hyundai XG350, 2003-2006 Hyundai Santa Fe, and 2004-2006 Kia Amanti, making it a direct search match for Hyundai Santa Fe timing belt kit with water pump, Kia Sedona timing belt replacement, and Hyundai XG350 timing belt service.

Gates PowerGrip Premium OE timing belt component kits are positioned as complete repair solutions, using premium timing components along with the water pump to reduce repeat teardown. The belt features 259 teeth, a 32 mm width, and a black top surface. The kit also includes a hydraulic tensioner, idler pulley, gasket, and seal components needed for the timing system service.

Common Repair Uses

• Timing belt noise or wear during scheduled maintenance
• Water pump seepage, leakage, or bearing wear
• Loss of belt tension from worn tensioner components
• Idler pulley wear affecting belt tracking
• Preventive service on interference-engine timing systems

Installation Notes

Replace the timing belt and timing belt driven water pump together during service. Follow the included instructions and verify engine code, model year, and timing alignment before reassembly. This kit does not include an installation tool or bolts.

Quality Assurance

Gates supplies OE-performance timing components for service replacement applications. The TCKWP323 is engineered as a complete timing system service kit for the listed Hyundai and Kia vehicles, with the water pump and related sealing components included to support a thorough repair.
