Gates TCKWP337 Engine Timing Belt Kit with Water Pump

Timing Belt Kit With Water Pump

Gates TCKWP337 is a PowerGrip Premium OE timing belt component kit with water pump for interference-engine applications. It combines the timing belt, pulleys, tensioners, idler, water pump, bracket, and gasket in one repair package for service work on the Hyundai Santa Fe and Kia Optima, Magentis, and Rondo.

The Gates PowerGrip Premium OE Timing Belt Component Kit W/Water Pump line is built around OE-style service parts for timing belt driven systems. For applications where the water pump is driven by the timing belt, replacing the pump at the same time as the belt helps complete the repair and reduce repeat teardown.

Key Features

• Gates part number TCKWP337
• PowerGrip Premium OE timing belt component kit with water pump

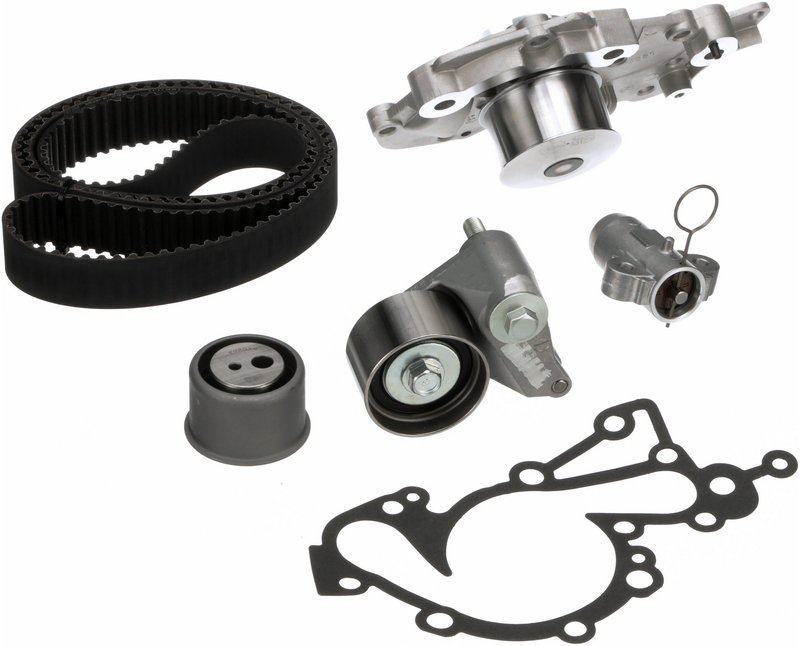

• Includes timing belt, tensioner, hydraulic tensioner, idler, water pump, bracket, and gasket
• OE Performance component rating
• Timing belt material: HSN with fiberglass cord
• Modified Curvilinear (III) belt profile and tooth style
• Black belt with 219 teeth and 32 mm width
• Installation instructions included
• Fits interference-engine applications listed below

Detailed Description

Gates TCKWP337 is engineered for direct service on select Hyundai and Kia timing belt applications. It is a timing belt kit with water pump for the 2006-2012 model years covered here, including Fits 2007-2012 Kia Rondo, N/A; Fits 2007-2010 Kia Magentis, N/A; Fits 2007-2009 Hyundai Santa Fe, N/A; Fits 2007-2009 Kia Optima, N/A; and Fits 2006 Kia Optima, N/A with Oct. 1, 2005 & newer interference engine applications. This part cross-references Continental PP337LK1 and Dayco WP337K1A for the same application.

As a PowerGrip Premium OE Timing Belt Component Kit W/Water Pump, this assembly is intended to replace the critical wear items in the timing drive at the same service interval. The included water pump, tensioners, idler, and gasket support a more complete timing system repair on the Hyundai Santa Fe and Kia Optima, Magentis, and Rondo platforms.

What It Helps Fix

• Timing belt wear, cracking, or tooth damage
• Noisy or worn tensioner and idler components
• Coolant leaks from a timing belt driven water pump
• Timing system service due at scheduled maintenance intervals
• Repeat repairs caused by replacing only part of the timing drive

Installation Notes

• Follow the included instructions and instruction sheet number 0098-3002
• Verify engine code and interference-engine requirements before installation
• Inspect belt routing, pulley alignment, and sealing surfaces during service
• Replace timing belt driven water pumps at the same time as the belt
• Confirm vehicle fitment by year, make, model, and engine configuration before ordering

Quality Assurance

Gates supplies OE-performance timing components for service applications where fit, function, and system completeness matter. TCKWP337 is built as a matched timing belt kit with water pump for the listed Hyundai and Kia vehicles, using premium components specified for the application.
