Gates TL100 Turbocharger Oil Return Line

Turbocharger Oil Feed Line for Ford Super Duty

The Gates TL100 turbocharger oil feed line is built for oil conveyance to and from the turbocharger in high-heat engine environments. With stainless steel construction and OE Exact comparison rating, it is a direct-fit service part for select Ford diesel applications that need reliable oil routing and leak resistance.

Key Features

• Stainless steel turbocharger oil feed line for durability in demanding engine bay temperatures
• OE Exact comparison rating for OE-style fit and function
• Centerline length: 16.75 in. (425.5 mm)

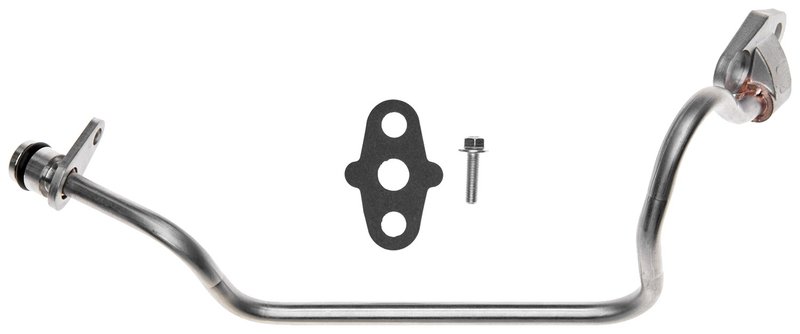

• Includes turbocharger oil feed line, gasket, and bolt
• Gates Turbocharger Oil Line product line for turbo oil supply and drain service
• Part number TL100 for easy identification

Detailed Description

Gates TL100 is a turbocharger oil feed line engineered for Ford Super Duty diesel trucks and related E-Series applications that require precise oil delivery to the turbocharger. The stainless steel construction helps the line stand up to heat and vibration, while the OE Exact rating supports a factory-style replacement approach. This Gates turbocharger oil line is a practical choice when servicing the oil supply path on 2003-2010 Ford E-350 Super Duty, F-250 Super Duty, F-350 Super Duty, E-350 Club Wagon, and Excursion models.

This part cross-references Dorman - OE Solutions 625-210 for the same application. The TL100 designation is also useful when searching for a Ford F-250 Super Duty turbocharger oil feed line, Ford F-350 Super Duty turbo oil line, or Ford Excursion turbocharger oil line replacement.

What It Helps Solve

• Oil seepage at the turbocharger feed connection
• Restricted or inconsistent oil delivery to the turbocharger
• Heat-related deterioration of the original oil line
• Service issues caused by a damaged or corroded turbo oil line
• Fitment concerns when replacing an OE-style turbocharger oil feed line

Installation Notes and Tips

Verify engine and build-date fitment before installation, especially on 2003 Ford Excursion and 2003 Ford F-250 Super Duty or F-350 Super Duty models with Mar. 18, 2003 and newer coverage. Confirm the routing matches the original line, inspect sealing surfaces, and replace worn gaskets or fasteners as needed during service. This part is listed for N/A position applications and should be matched to the original turbocharger oil line configuration.

Quality Assurance

Gates designs Turbocharger Oil Supply and Drain Lines for oil conveyance in turbocharger systems, with construction focused on leak resistance and high-temperature operation. TL100 is an OE Exact replacement-style part for select Ford applications.

• Fits 2004-2010 Ford E-350 Super Duty, N/A
• Fits 2004-2007 Ford F-250 Super Duty, N/A
• Fits 2004-2007 Ford F-350 Super Duty, N/A
• Fits 2004-2005 Ford E-350 Club Wagon, N/A
• Fits 2004-2005 Ford Excursion, N/A
• Fits 2003 Ford Excursion, N/A, Mar. 18, 2003 & Newer
• Fits 2003 Ford F-250 Super Duty, N/A, Mar. 18, 2003 & Newer
• Fits 2003 Ford F-350 Super Duty, N/A, Mar. 18, 2003 & Newer
