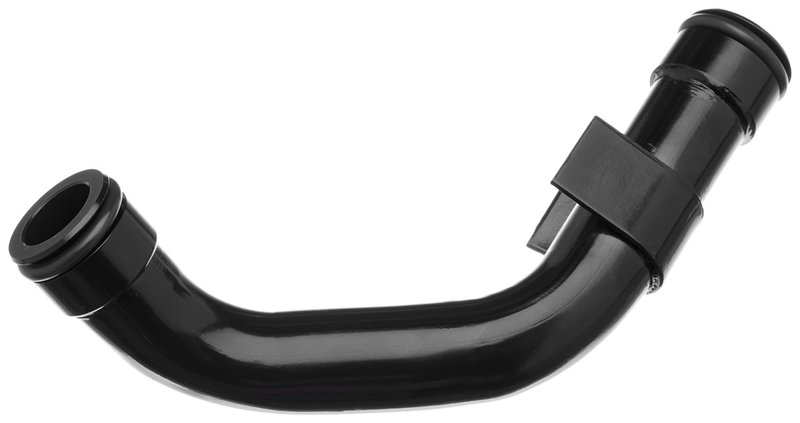

Gates TL102 Turbocharger Oil Return Line

Turbocharger Oil Drain Line for Ford Super Duty

Gates TL102 is a steel turbocharger oil drain line built for oil return service in turbocharged diesel applications. It is an OE Exact replacement that matches the original-style fit and function for the listed Ford trucks and vans.

Use this Gates Turbocharger Oil Line when you need a direct replacement for a leaking, damaged, or heat-stressed drain line on Ford E-350 Super Duty, F-250 Super Duty, F-350 Super Duty, E-350 Club Wagon, and Excursion applications.

Key Features

• Steel construction for durability in turbocharger oil routing
• OE Exact comparison rating for original-style replacement fitment
• Turbocharger oil drain line design for returning oil from the turbocharger
• Centerline length: 7.5 in. (191 mm)
• Gates Turbocharger Oil Line TL102 for select Ford diesel applications

Product Details

The Gates Turbocharger Oil Line product line covers oil supply and drain routing at the turbocharger, where heat and constant oil flow place heavy demands on the line. TL102 is the turbocharger oil drain line version, made from steel and sized at 7.5 inches centerline length to match the original routing on the listed vehicles. This part cross-references Dorman - OE Solutions 904-192 for the same application.

Compatible With 2004-2010 Ford E-350 Super Duty, 2003-2007 Ford F-250 Super Duty, 2003-2007 Ford F-350 Super Duty, 2004-2005 Ford E-350 Club Wagon, and 2003-2005 Ford Excursion. Gates TL102 is a practical OE-style replacement for turbocharger oil drain service on these Ford platforms.

Common Repair Symptoms

• Oil seepage or leakage at the turbocharger drain line
• Cracked, corroded, or heat-damaged oil return tubing
• Restricted oil drainage from the turbocharger housing
• Visible oil residue around the turbocharger area
• Need for an OE-style replacement during turbocharger service

Installation Notes

Inspect the turbocharger oil routing, sealing surfaces, and adjacent components before installation. Confirm the line length and routing match the original configuration, and verify the part number TL102 against the vehicle application before assembly. Clean mating surfaces and check for proper alignment to help prevent leaks after installation.

Quality Assurance

Gates manufactures turbocharger oil supply and drain lines for oil conveyance in high-temperature turbocharger systems. TL102 is built as an OE Exact replacement to match original-style requirements for the listed Ford applications.
