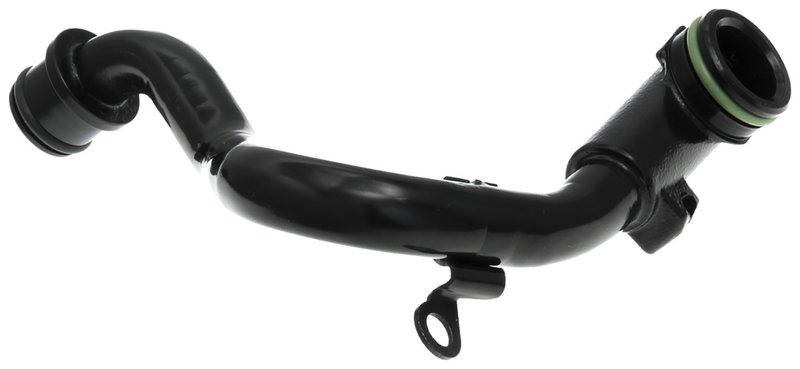

Gates TL109 Turbocharger Oil Return Line

Turbocharger Oil Drain Line for Ford Super Duty

The Gates TL109 turbocharger oil drain line is built for oil return service in turbocharger systems, with a steel and rubber construction that handles heat and helps maintain a secure seal. It is an OE Exact replacement for the factory-style turbocharger oil drain line on select Ford Super Duty diesel applications.

Fits 2008-2010 Ford F-250 Super Duty and 2008-2010 Ford F-350 Super Duty, high pressure turbocharger oil line applications. This Gates Turbocharger Oil Line product line is engineered for oil conveyance to and from the turbocharger, where temperature resistance and leak control are critical.

Key Features

• Part number TL109
• Turbocharger oil drain line for oil return service
• Steel and rubber construction
• 12 in. centerline length, 305 mm centerline length
• OE Exact comparison rating
• Fits select 2008-2010 Ford F-250 Super Duty and F-350 Super Duty applications

Detailed Description

Gates TL109 is a turbocharger oil return line designed to route oil away from the turbocharger and back through the system with a factory-style fit. The steel and rubber design supports durability in the high-heat environment around the turbocharger, while the OE Exact rating indicates close match to original equipment form and function. If you are replacing a worn or leaking turbocharger oil drain line on a Ford F-250 Super Duty or Ford F-350 Super Duty, TL109 provides a direct replacement option for the specified model years.

This part cross-references FEL-PRO 1037 for the same application.

Common Problems This Part Addresses

• Oil seepage at the turbocharger drain connection
• Cracked or heat-damaged factory oil return line
• Restricted oil drainage from the turbocharger housing
• Loss of sealing at the turbocharger oil line
• Service replacement for a damaged Ford Super Duty turbocharger oil line

Installation Notes and Tips

Verify the vehicle year, engine configuration, and turbocharger oil line routing before installation. Inspect mating surfaces and adjacent hoses or fittings for heat damage, contamination, or wear before installing the new TL109 line. Confirm the line is seated correctly and routed to avoid contact with hot or moving components.

Quality Assurance

Gates designs Turbocharger Oil Supply and Drain Lines for oil conveyance to and from the turbocharger, with construction intended to withstand the extreme temperatures found in turbocharger systems. TL109 is an OE Exact replacement for the listed Ford Super Duty applications.
